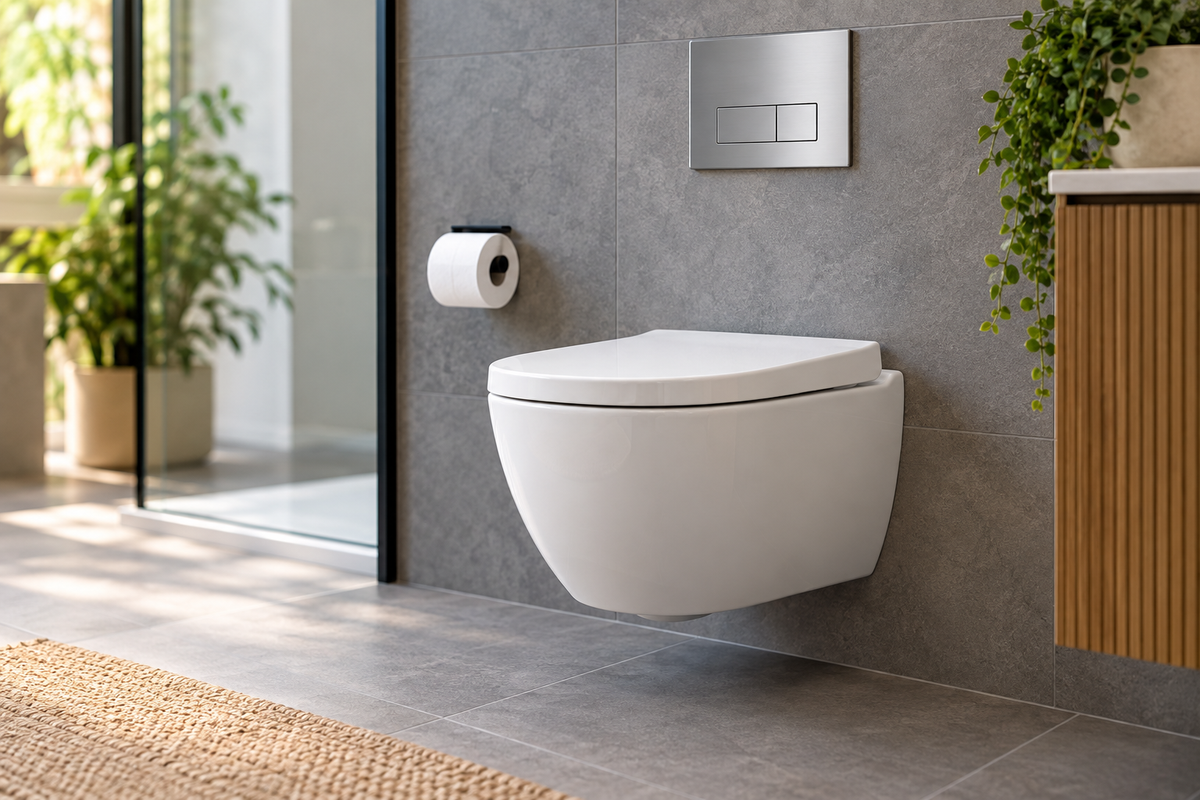

A wall hung toilet can look surprisingly light, particularly once the cistern and support frame disappear behind a neat tiled wall. That leads many buyers to ask: are wall hung toilets safe? Yes - when the correct frame, fixings and wall construction are used, a quality wall hung toilet is a safe, stable choice for everyday bathrooms, cloakrooms and en suites.
The key point is that the pan is not held up by tiles or a thin plasterboard box. Its load is carried by a purpose-made steel support frame, securely fixed to the floor and wall structure. Choose compatible components, follow the manufacturer’s requirements carefully and avoid shortcuts behind the wall, and a wall hung toilet can be every bit as dependable as a close-coupled model.
Why wall hung toilets are safe when specified correctly
A wall hung toilet is supported by a concealed installation frame, often called a carrier frame. This heavy-duty steel structure sits inside the wall void or a purpose-built furniture-style boxing. The toilet pan then bolts on to two threaded mounting bars at the front of the frame.
Most quality frames are designed and tested to carry substantial loads, commonly up to 400kg. That rating is not an invitation to test the limits, but it should reassure households that normal use does not place the frame under unusual strain. The load transfers down through the frame and into the floor, rather than relying solely on the visible wall finish.
The concealed cistern is usually integrated with the frame. A flush plate at the front provides access to the flush valve for routine maintenance, so the entire wall should not need to be opened for common servicing tasks. This combination of hidden workings and a supported pan is why wall hung toilets have become a popular option in modern UK bathrooms.
The frame does the hard work
It is easy to assume that a wall hung pan must be fixed straight to a solid brick or block wall. A masonry wall can certainly be part of the installation, but the supporting frame is the crucial component. It needs to be fixed in line with its instructions, using suitable anchors for the floor and the wall behind it.
Where a stud wall is involved, the frame may need to be incorporated into a properly reinforced structure or installed within a purpose-built false wall. Standard lightweight plasterboard alone is not enough to support a wall hung toilet. The final tiled surface is decorative and water-resistant, not structural.
This is also why buying a pan, frame and cistern as a compatible system matters. Mounting centres, flush connections, waste outlets and projection dimensions need to work together. A product may look similar online, but mixing unsuitable parts can create avoidable difficulties before the pan is even fitted.
Are wall hung toilets safe for heavier users and families?
For normal household use, a correctly installed wall hung toilet is suitable for adults, teenagers and children. Its strength comes from the rated frame and secure installation, not from the thickness of the ceramic pan. A well-made pan is designed to be used as a seat in exactly the same way as a conventional toilet.
There are still sensible limits. No toilet should be used as a step, and anyone who needs a higher load rating, additional support or assistance when sitting and standing should consider the full bathroom layout rather than the toilet alone. In accessible bathrooms, grab rails, seat height, clear space and specialist sanitaryware can all be more relevant than simply choosing wall hung or floorstanding.
For landlords and family homes, durability often comes down to choosing recognised brands, avoiding ultra-budget components with unclear technical information, and making sure the wall construction is appropriate. A concealed system is not the place to compromise on the supporting frame or fixings.
The real trade-offs to consider
Safety is rarely the reason to rule out a wall hung toilet. The more practical question is whether it suits the room, budget and future maintenance expectations.
A wall hung pan makes floor cleaning easier because there is no pedestal meeting the floor. It can also create a more spacious look in a compact cloakroom, especially when paired with a slim concealed cistern and a shorter-projection pan. The mounting height can usually be set during installation, which is useful where a household prefers a slightly higher or lower seat position.
On the other hand, the wall behind the toilet needs enough depth for the frame and cistern. A false wall can reduce the available room length, which may matter in a very tight bathroom. The initial cost can also be higher than a straightforward close-coupled toilet, because the frame, concealed cistern and flush plate are separate elements in many ranges.
Maintenance needs planning too. Reliable concealed cisterns are designed with service access through the flush plate opening, but access must not be blocked by poor finishing or an incompatible flush plate. Before selecting a system, check what is supplied, what is compatible and how replacement parts are accessed.
What to check before buying a wall hung toilet
The safest and simplest route is to select products with clear specifications from established manufacturers. Look beyond the pan’s shape and finish to confirm the practical details that sit behind the wall.
First, check the frame’s load rating and whether it is intended for wall hung pans. A bidet frame or a general-purpose mounting bracket is not automatically a substitute. Next, confirm the pan’s fixing centres, which are commonly 180mm or 230mm, and make sure they match the frame.
You should also check the available wall depth, including the finished wall surface. Measure from the structural wall to the front edge you can accommodate, then allow for the frame, cistern, pipework, boarding, tiles and pan projection. A slim frame can help where space is limited, but it still needs enough room for correct connections.
Finally, consider the flush plate and flushing system. Dual flush cisterns are a familiar water-saving option, while flush plates come in a wide choice of colours and finishes to coordinate with brassware and accessories. These details affect the final look, but compatibility and accessible servicing should come first.
Signs a wall hung toilet may not be right for the room
A wall hung toilet is not automatically the best answer for every refurbishment. If creating a supporting false wall would leave too little circulation space, a compact close-coupled or back-to-wall toilet may be the more practical choice. Likewise, where the existing floor or wall structure is uncertain, it needs to be assessed before a concealed frame is chosen.
It may also be worth reconsidering if the project demands the lowest possible upfront cost or if easy access to all pipework is the main priority. A floorstanding toilet can offer excellent reliability with fewer concealed components. There is no safety advantage in forcing a wall hung design into a room that does not have the required depth or sound structure.
That said, wall hung toilets are not a fragile design trend. They are established sanitaryware systems used in homes, hotels and commercial settings, provided the correct support frame and compatible components are specified.
A sensible buying approach
Start with the dimensions of the room, then choose the pan style, frame depth and flush plate finish around that space. Check the technical drawings rather than relying on product photographs, particularly for pan projection and required wall depth. If you are replacing an existing toilet, remember that the waste position, soil pipe route and cistern location may differ from the new arrangement.
For a coordinated project, Brand New Bathrooms offers a huge range of wall hung toilets, frames, concealed cisterns and flush plates, making it easier to match the practical parts as well as the visible finish. If any measurement or compatibility detail is unclear, getting product guidance before ordering is far easier than changing plans once the wall is closed.
A wall hung toilet should feel solid, quiet and entirely ordinary in daily use. Choose a properly rated frame, allow for the wall build-up and treat the concealed support system as the essential part of the purchase. Do that, and the floating look becomes a practical, long-lasting feature rather than a cause for concern.
