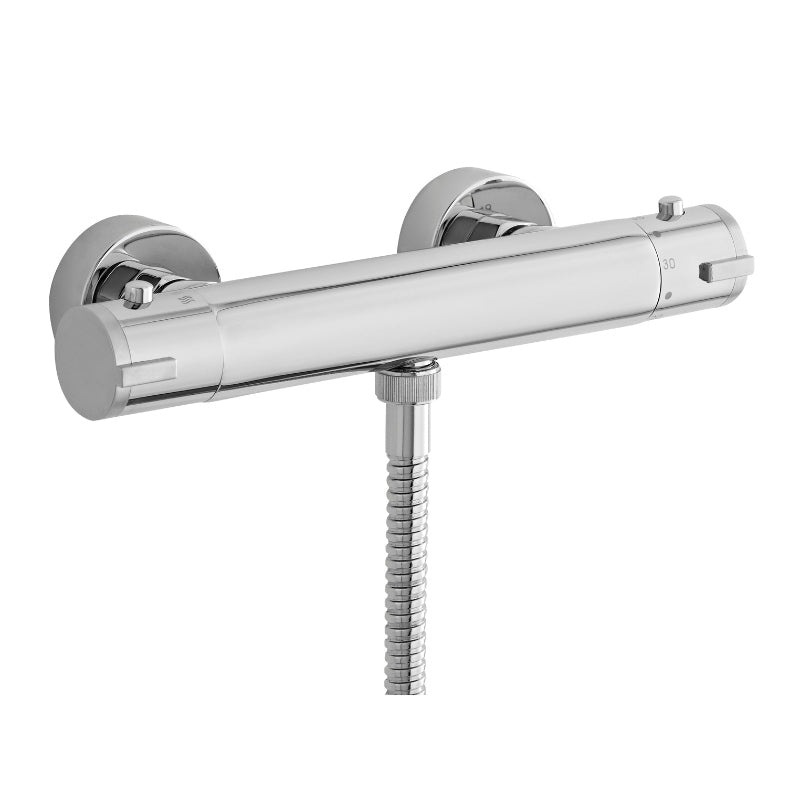

Introducing Nuie Minimalist Thermostatic Shower Bar Valve. With a bottom outlet and full thermal protection, this valve ensures safety and precision with thermostatic control to +/- 2 degrees. Say goodbye to scalding or water pressure fluctuations - our valve shuts down in case of any failures. Perfect for a luxurious shower experience.
Specifications
| Range: |
Shower Valves
|

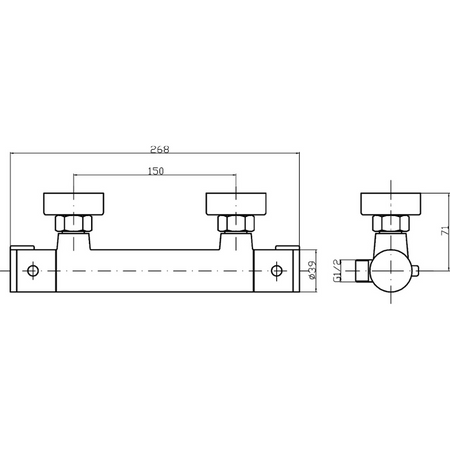

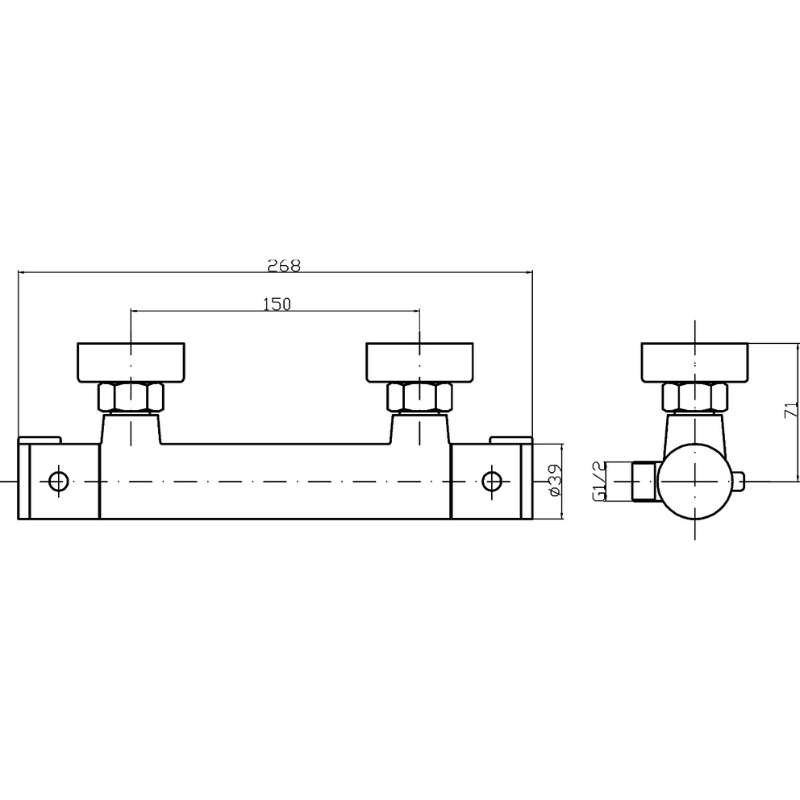

| Depth (mm): | 71 |
| Height (mm): | 39 |
| Width (mm): | 268 |
| Valve/Cartridge Type: |
1/4 Turn |
| Flow Rate 0.1Bar l/m: | 4 |
| Flow Rate 0.5Bar l/m: | 10 |
| Flow Rate 1Bar l/m: | 17 |
| Flow Rate 2Bar l/m: | 21 |
| Flow Rate 3Bar l/m: | 26 |
| TMV3 Approved: |
No |
| TMV2 Approved: |
No |
| Minimum Operating Pressure (Bar): |
0.2 |
| Mount Type: |
Surface/Wall |
| WRAS Approved: | No |
| Guarantee: | 5 years |
To view the Technical Datasheet for this product, click HERE
To view the Technical Fittings instructions for this product, click HERE
- Thermostatically controlled
- Bottom outlet
- Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
- Full thermal protection to prevent scalding in the event of hot or cold water shut off
- In the event of hot or cold water failure the valve will shut down as per the relevant standard
- Suitable for shower pumps
- Manufactured from high quality brass & ABS
