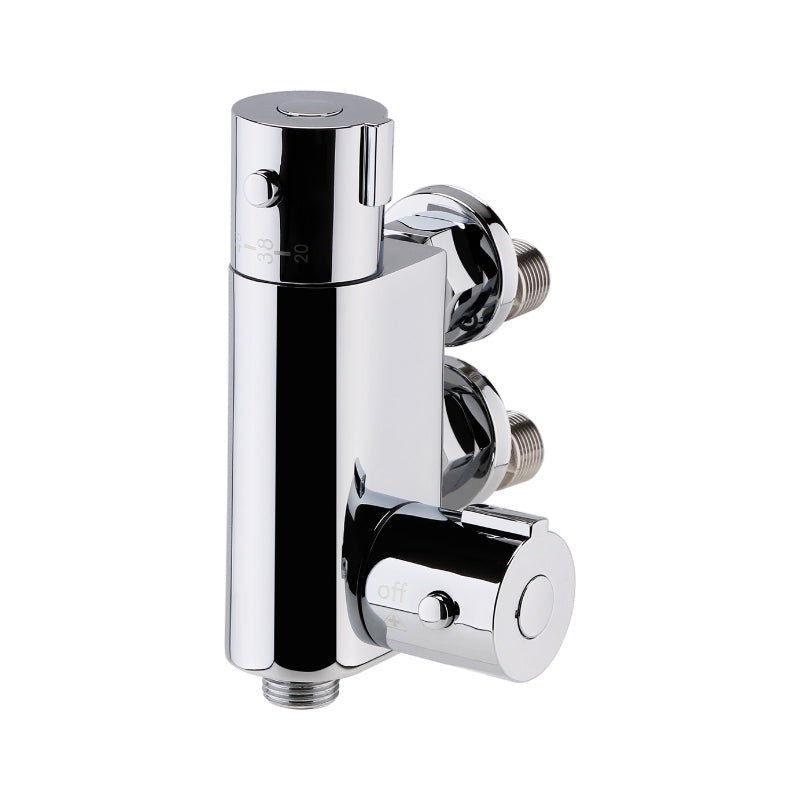

Nuie Vertical Thermostatic Shower Bar Valve (1 size, Chrome)
Couldn't load pickup availability
Direct Bank Transfers available for orders over £500.
Finance Options with PayPal & Klarna
Need Any Help? Speak to one of our Sales team between 9am & 5pm - seven days a week for expert advice.
Introducing the Nuie Vertical Thermostatic Shower Bar Valve, a space-saving solution for luxurious showers. With precise temperature control and a slimline design, this valve is suitable for water systems between 0.1-4 bar pressure. Crafted from high-quality brass and ABS materials, this is a sophisticated addition to any bathroom.
Specifications
| Range: |
Shower Valves
|
| Depth (mm): | 185 |
| Height (mm): | 45 |
| Width (mm): | 90 |
| Valve/Cartridge Type: |
1/4 Turn |
| Flow Rate 0.1Bar l/m: | 2.6 |
| Flow Rate 0.5Bar l/m: | 7.5 |
| Flow Rate 1Bar l/m: | 11.1 |
| Flow Rate 2Bar l/m: | 16.2 |
| Flow Rate 3Bar l/m: | 20.2 |
| TMV3 Approved: |
No |
| TMV2 Approved: |
No |
| Minimum Operating Pressure (Bar): |
0.2 |
| Mount Type: |
Surface/Wall |
| WRAS Approved: | No |
| Guarantee: | 5 years |
To view the Technical Datasheet for this product, click HERE
To view the Technical Fittings instructions for this product, click HERE
- Vertical design for when space is at a premium
- Thermostatically controlled
- Slimline design
- Suitable for water systems between 0.1-4 bar pressure
- Manufactured from high quality brass & ABS
