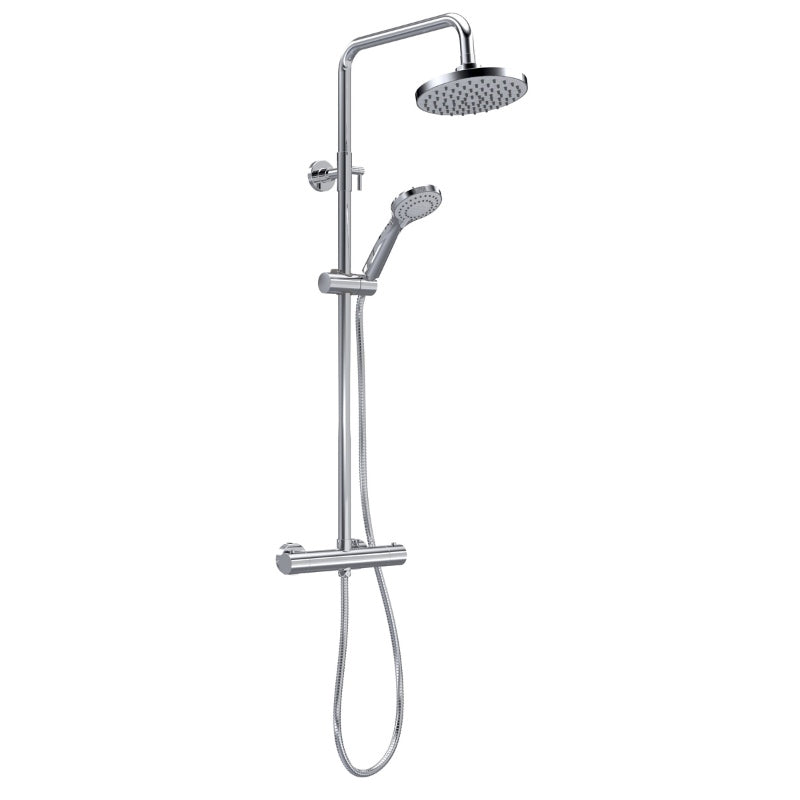

Nuie Thermostatic Bar Valve with Shower Kit (1 size, Chrome)
Couldn't load pickup availability
Direct Bank Transfers available for orders over £500.
Finance Options with PayPal & Klarna
Need Any Help? Speak to one of our Sales team between 9am & 5pm - seven days a week for expert advice.
Indulge in the ultimate luxury shower experience with our Nuie Thermostatic Bar Valve with Shower Kit. With precise temperature control and full thermal protection, enjoy a refreshing and safe shower every time. Crafted from high-quality brass and ABS, this shower kit is suitable for all types of water systems. Elevate your shower routine today with our elegant and sophisticated shower kit.
Specifications
| Range: |
Shower Sets
|
| Flow Rate at 0.5 Bar (L/min): |
5
|
| Flow Rate at 1 Bar (L/min): |
7.5
|
| Flow Rate at 2 Bar (L/min): |
11
|
| Flow Rate at 3 Bar (L/min): |
14
|
| Pipe Size: | 15 |
| Depth (mm): | 429 |
| Height (mm): | 1245 |
| Width (mm): | 267 |
| Mount Type: |
Surface/Wall |
| Minimum Operating Pressure (Bar): |
1 |
| TMV3 Approved: |
No |
| TMV2 Approved: |
No |
| TMV2 Approval Number: | 2503071 |
| Valve/Cartridge Type: |
1/4 Turn |
| WRAS Approved: | 2307019 |
| Guarantee: | 5 years |
To view the Technical Datasheet for this product, click HERE
To view the Technical Fittings instructions for this product, click HERE
- The perfect solution to multi-option showering
- Thermostatically controlled
- Round shower head
- Round handset
- Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
- Full thermal protection to prevent scalding in the event of hot or cold water shut off
- In the event of hot or cold water failure the valve will shut down as per the relevant standard
- Suitable for high pressure water systems
- Suitable for unvented mains pressure systems
- Suitable for shower pumps
- Manufactured from high quality brass & ABS
