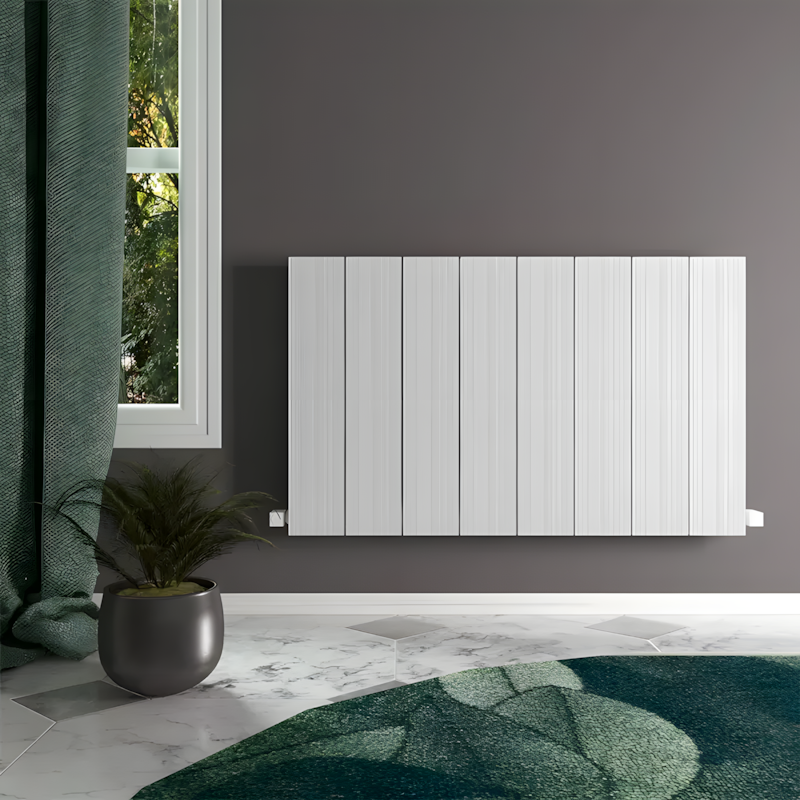

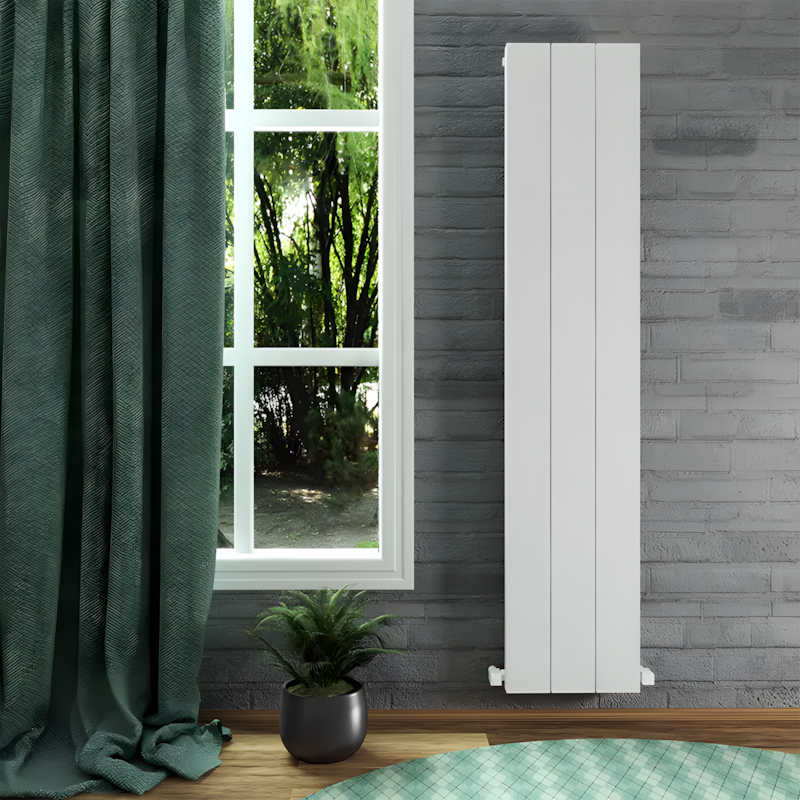

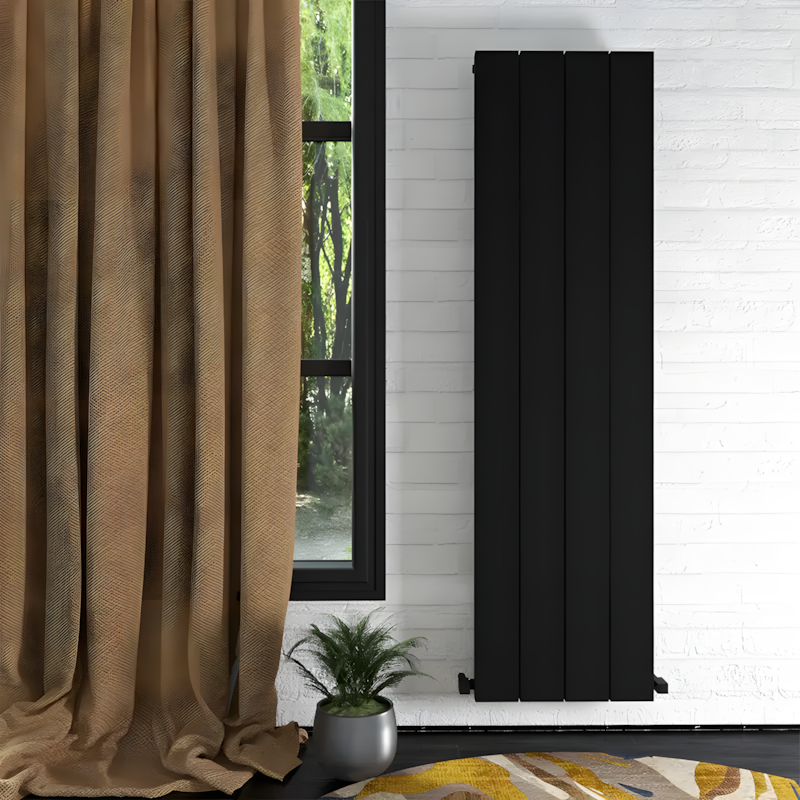

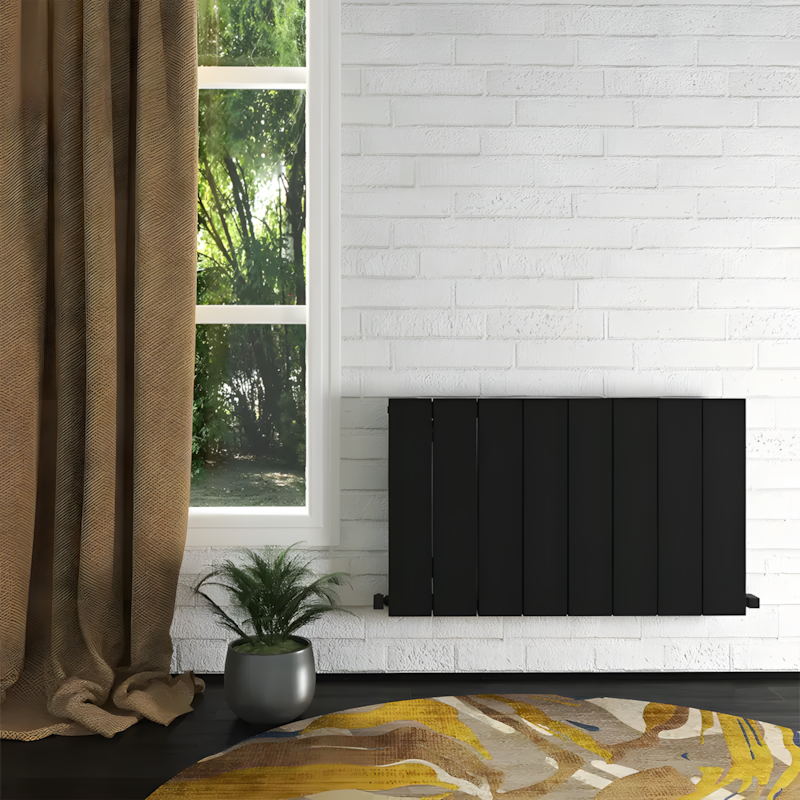

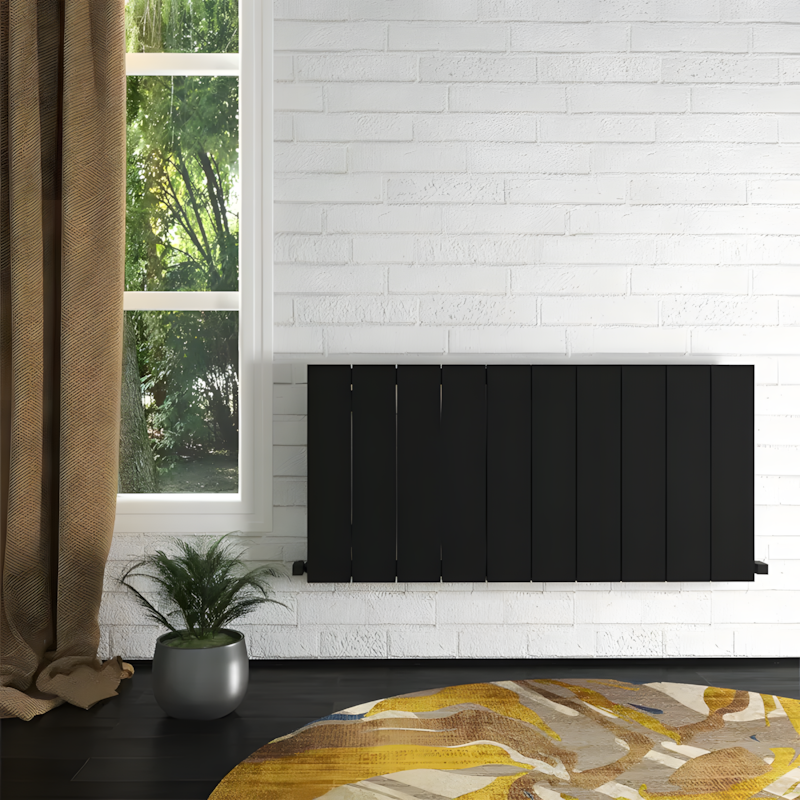

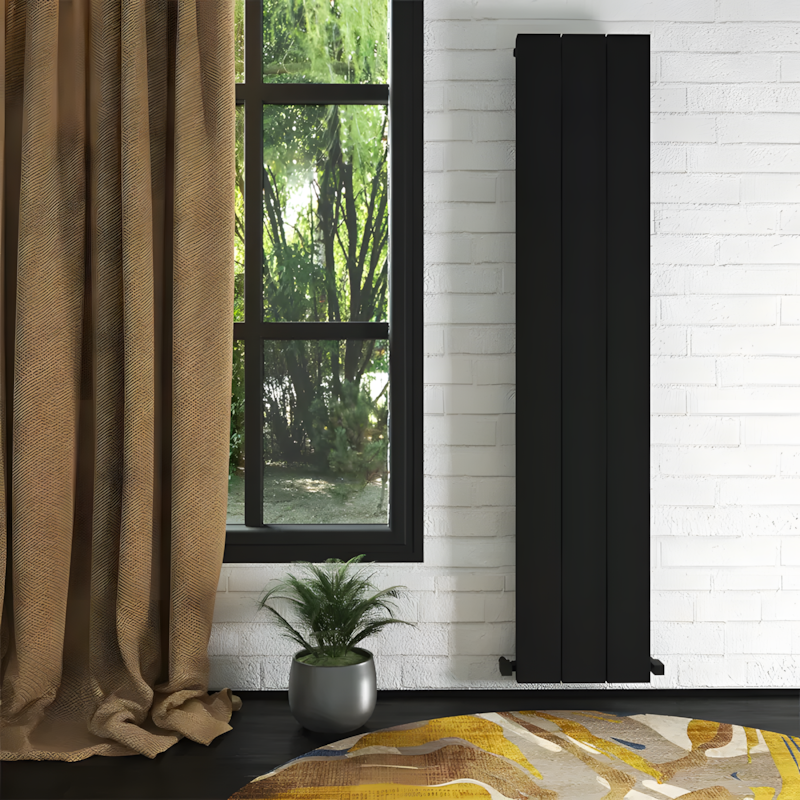

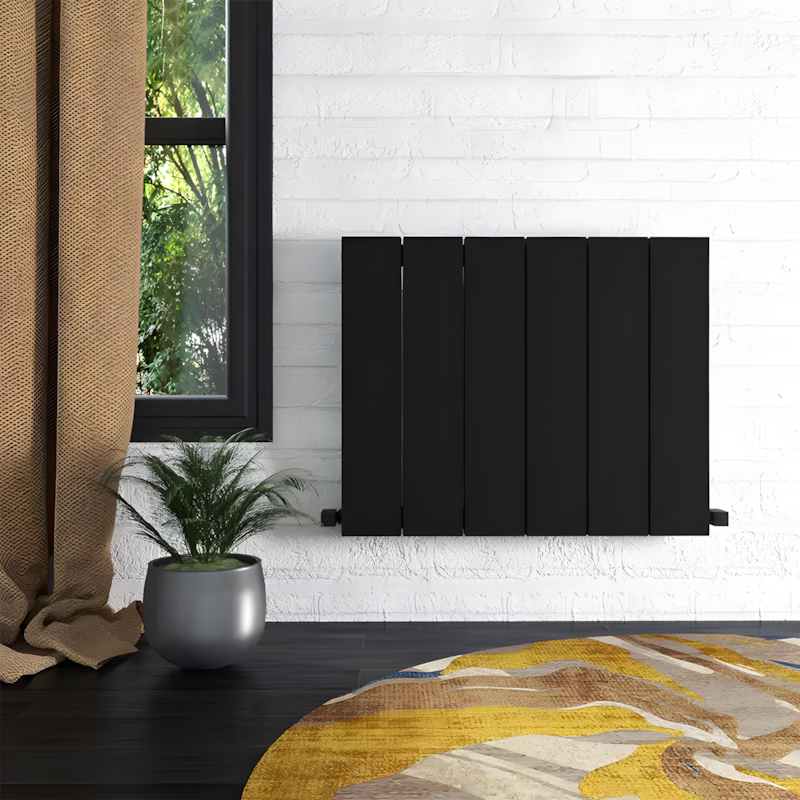

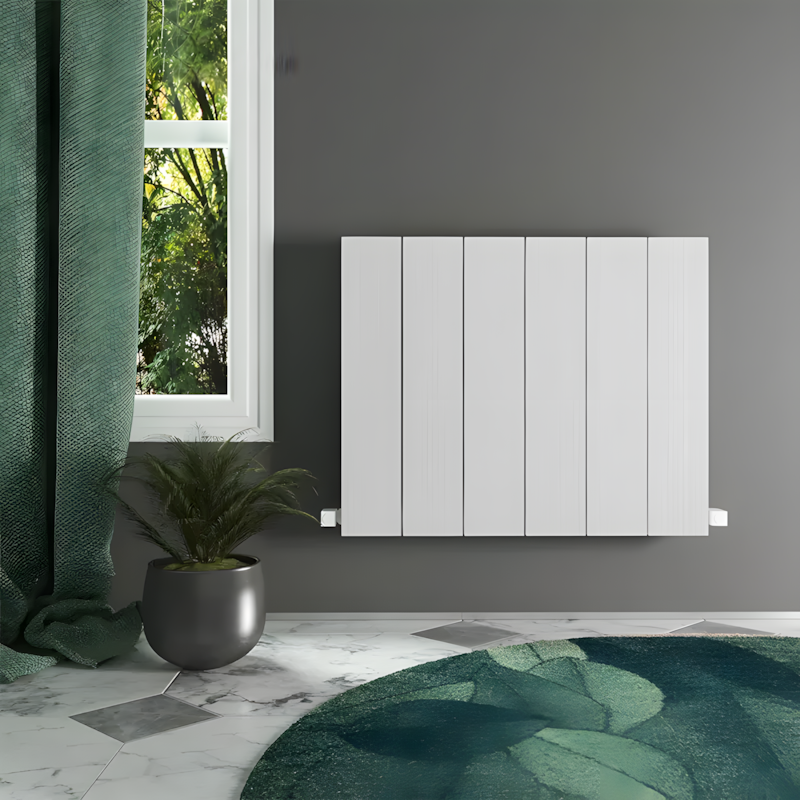

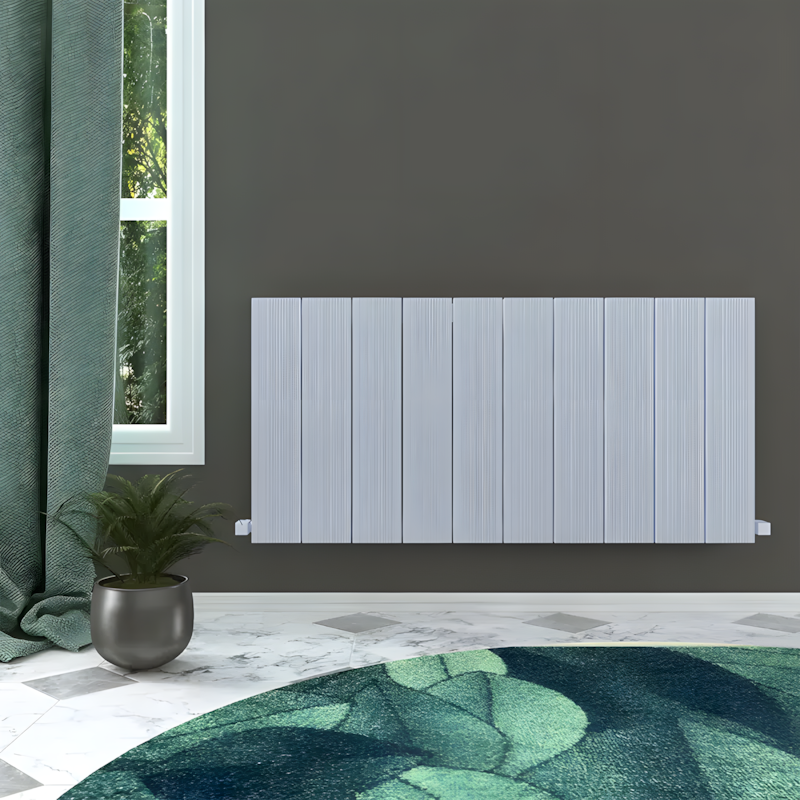

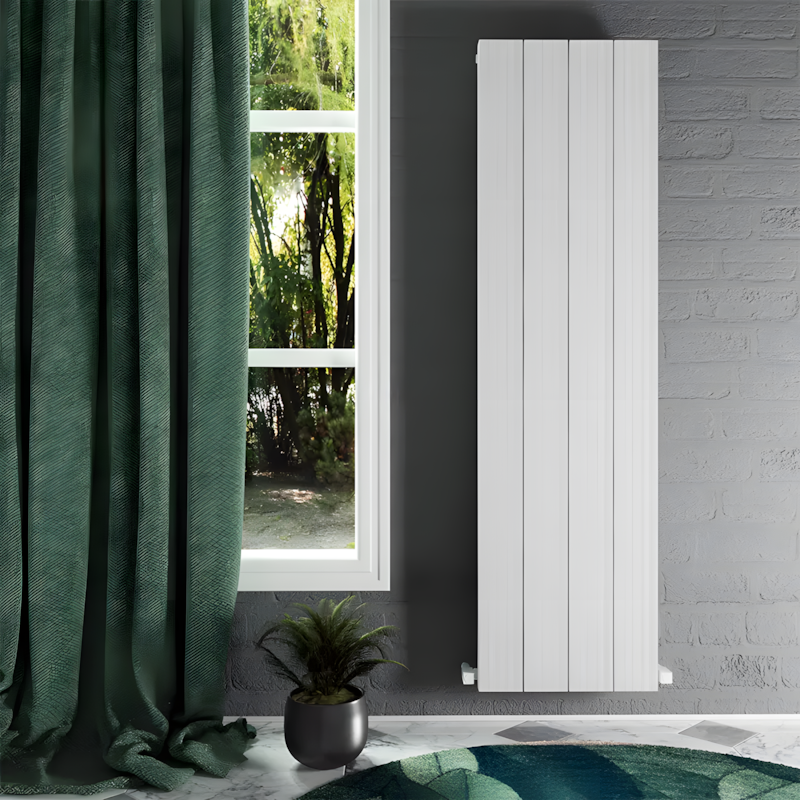

Carisa Elvino Aluminium Radiator (5 sizes, 3 colours)
- 2,362–4,534 BTU heat output at ΔT50
- For wet central heating systems
- Aluminium, 5-year guarantee
Couldn't load pickup availability
Direct Bank Transfers available for orders over £500.
Finance Options with PayPal & Klarna
Need Any Help? Speak to one of our Sales team between 9am & 5pm - seven days a week for expert advice.
The Carisa Elvino is an aluminium radiator for wet central heating systems. It is available in 5 sizes, finished in Polished Anodized, Textured Black and Textured White, with heat outputs from 2,362 to 4,534 BTU at ΔT50. It is backed by a 5-year manufacturer's warranty.
The stock finishes on this product are Polished Anodized, Textured White or Textured Black, but if you would like to request a different finish based on the options found HERE, then please contact us via telephone or email and we will try and help.
Specifications
| Material: | Aluminium |
| Warranty: | 5 years |
| Fuel Type: | Central Heating |
| Size (mm): | H600 x W745 H600 x W995 H600 x W1245 H1800 x W370 H1800 x W495 |
| Heat Output ΔT50: | H600 x W745: 2,362 BTU / 692 W H600 x W995: 3,150 BTU / 923 W H600 x W1245: 3,937 BTU / 1154 W H1800 x W370: 3,401 BTU / 997 W H1800 x W495: 4,534 BTU / 1329 W |
| Pipe Centres (mm): | 460-585-835-1085-1335 |
| Wall to Pipe Centre (mm): | 30-50 |
| Wall to Face (mm): | 85-105 |
| Max. Working Pressure: | 10 bar |
| Max. Working Temperature: | 95°C |
