Carisa Elvino Floor Single or Double Panel Aluminium Radiator (3 sizes, 2 styles, 2 colours)
- 1,248–2,640 BTU heat output at ΔT50
- Choose single or double panel output
- Aluminium, 5-year guarantee
Regular price
£464.99
inc. VAT
Regular price
-36%
£726.00
Sale price
£464.99
inc. VAT
Couldn't load pickup availability
100% Secure & Encrypted Payments
Direct Bank Transfers available for orders over £500.
Finance Options with PayPal & Klarna
Need Any Help? Speak to one of our Sales team between 9am & 5pm - seven days a week for expert advice.

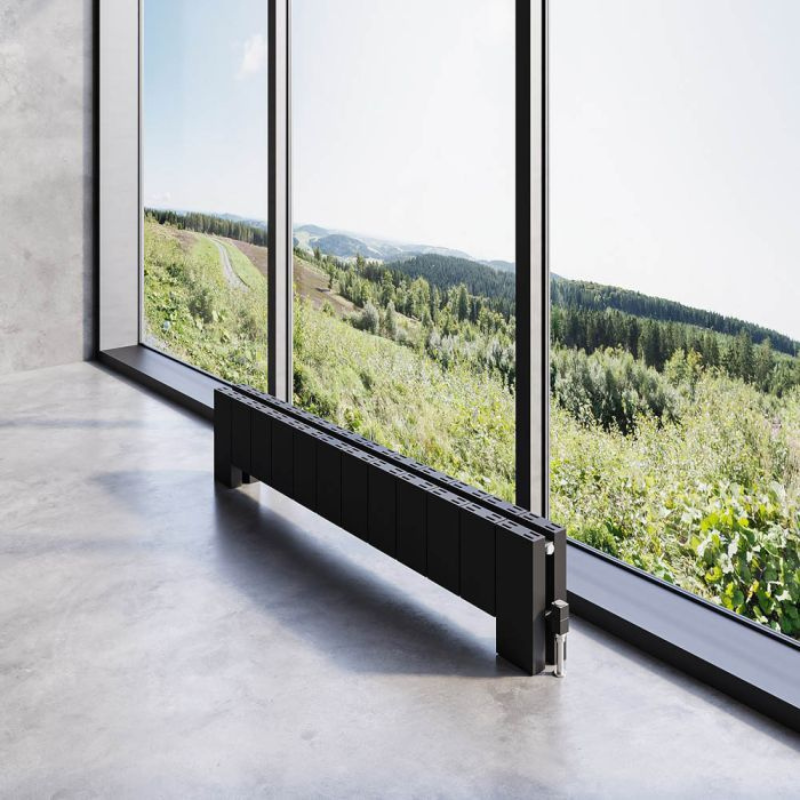

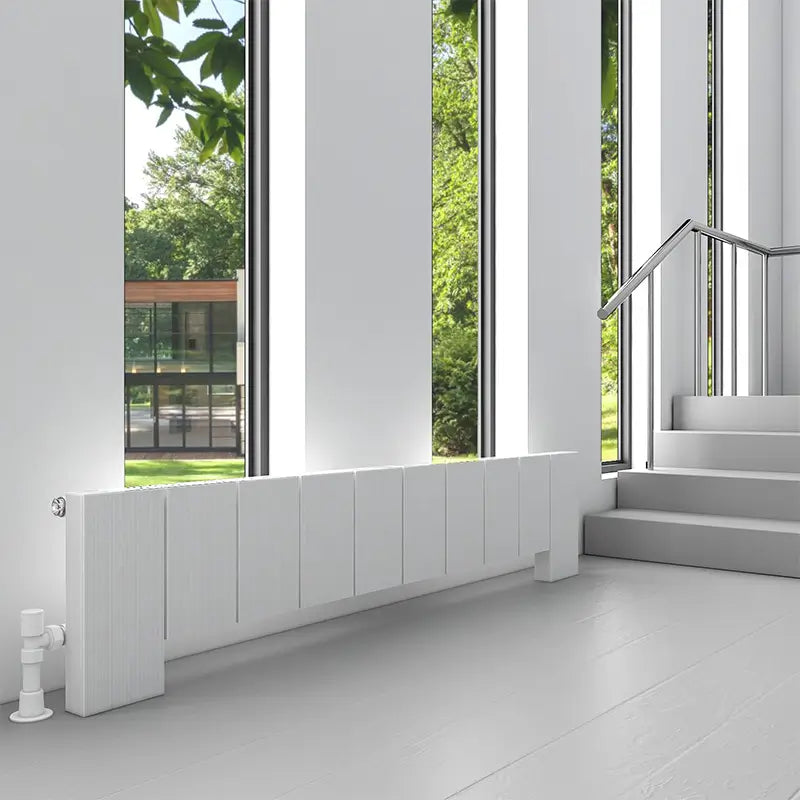

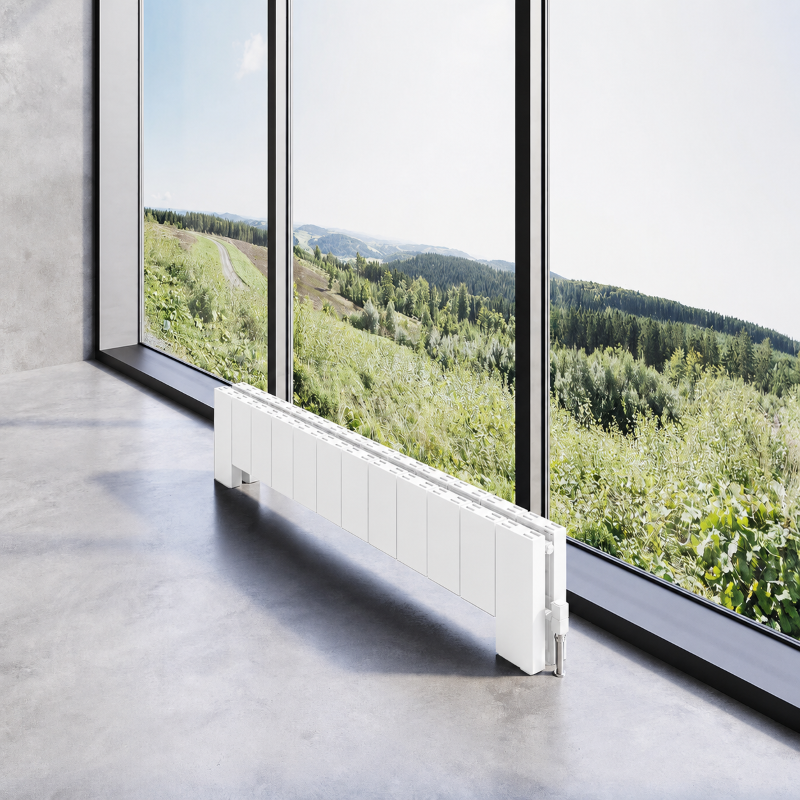

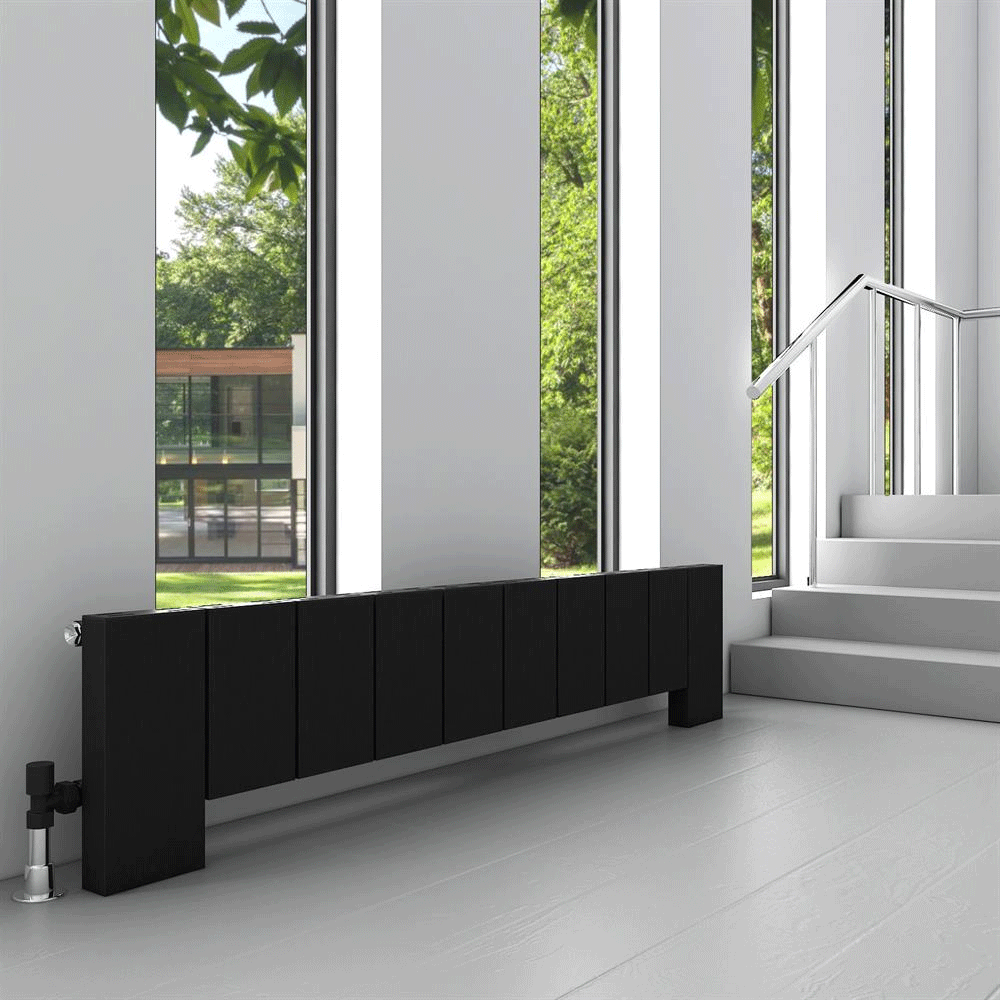

The Carisa Elvino Floor is an aluminium single or double panel radiator for wet central heating systems. It is available in 3 sizes, finished in Textured White and Textured Black, with heat outputs from 1,248 to 2,640 BTU at ΔT50. It is backed by a 5-year manufacturer's warranty.
The stock finishes on this product are Textured White or Textured Black, but if you would like to request a different finish based on the options found HERE, then please contact us via telephone or email and we will try and help.
Specifications
| Material: | Aluminium |
| Warranty: | 5 years |
| Fuel Type: | Central Heating |
| Size (mm): | H300 x W995 H300 x W1245 H300 x W1495 |
| Heat Output ΔT50 (Single Panel): | H300 x W995: 1,248 BTU / 366 W H300 x W1245: 1,559 BTU / 457 W H300 x W1495: 1,869 BTU / 548 W |
| Heat Output ΔT50 (Double Panel): | H300 x W995: 1,760 BTU / 516 W H300 x W1245: 2,200 BTU / 645 W H300 x W1495: 2,640 BTU / 774 W |
| Pipe Centres (mm): | Double: 1085-1335-1585 |
| Wall to Face (mm): | 85-105 |
| Max. Working Pressure: | 10 bar |
| Max. Working Temperature: | 95°C |
Click here for Carisa Elvino Floor Single Technical Data
Click here for Carisa Elvino Floor Double Technical Data
