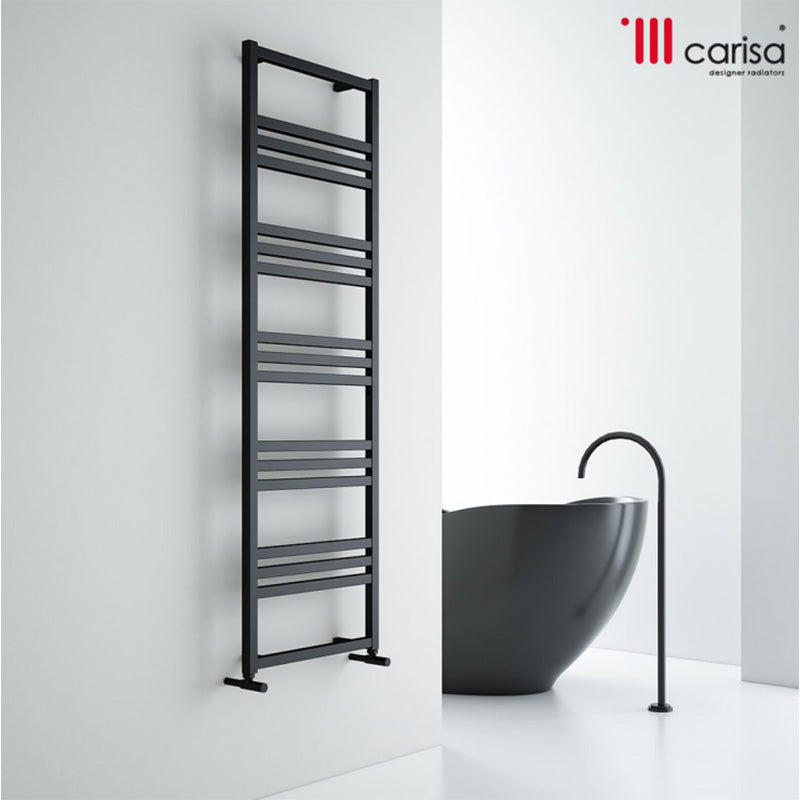

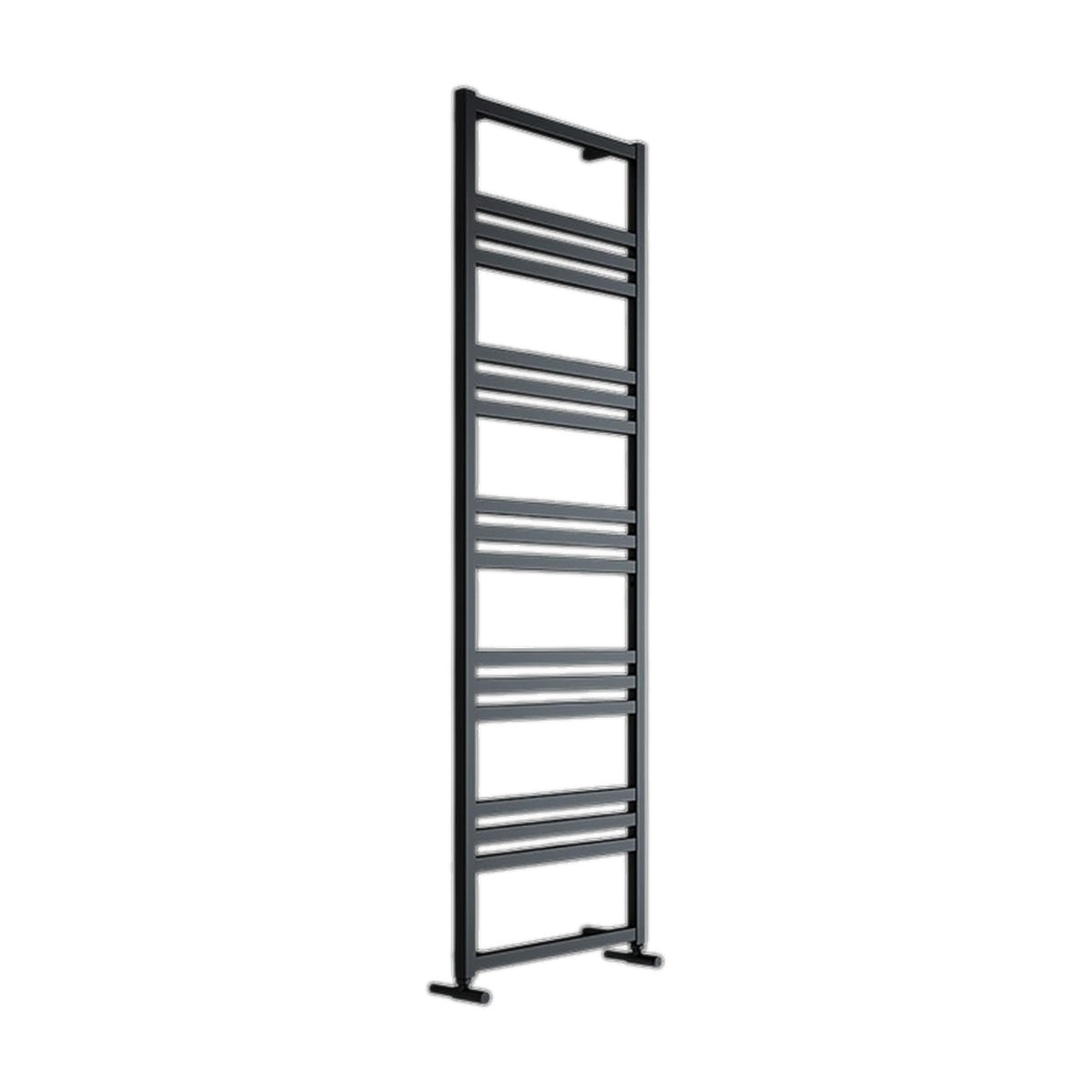

Carisa Frame Aluminium Bespoke Radiator (5 sizes, 4 colours)

Introducing the Carisa Frame Aluminium Bespoke Radiator- the perfect blend of style and practicality! Available in 5 sizes and 4 colours, this radiator adds a touch of modern elegance to any room. Say goodbye to boring, bulky radiators and hello to sleek and efficient heating. (Install it and chill!)

The stock finishes on this product are Textured White and Anthracite, Polished and Brushed Brass Anodized but if you would like to request a different finish based on the options found HERE, then please contact us via telephone or email and we will try and help.

Specifications

Material:	Aluminium
Warranty:	5 years

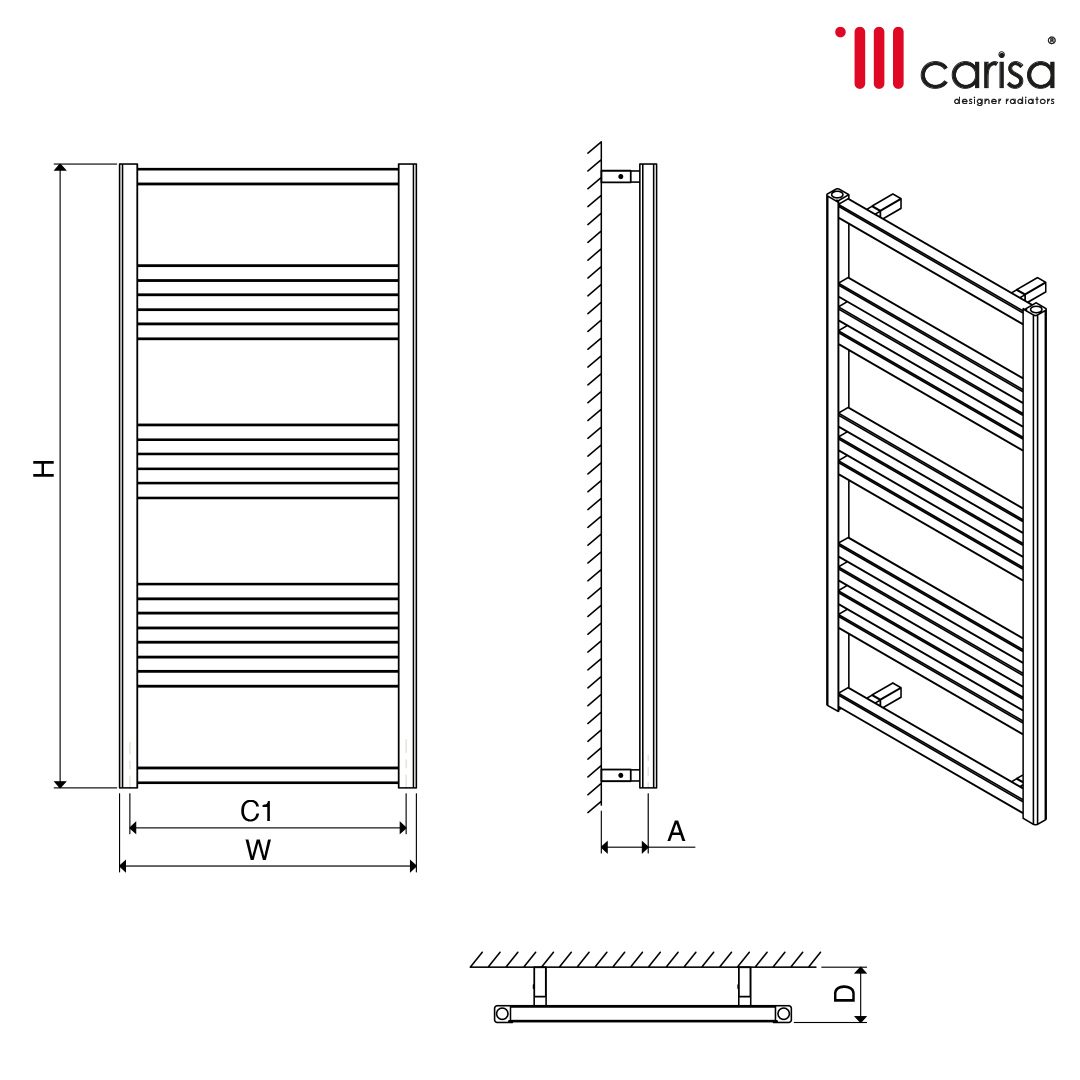

Size (mm):	5 variants
Height (mm):	740-1008-1276-1544-1812
Width (mm):	500
Pipe Centres (mm):	475
Wall to Pipe Centres (mm):	79-99
Wall Distance (mm):	93-113
Fuel Type:	Dual Fuel
Heat Output (BTU's @ Delta 50):	500 x 740 = 1120 500 x 1008 = 1541 500 x 1276 = 1961 500 x 1544 = 2381 500 x 1812 = 2801
Heat Output (Watts @ Delta 50):	500 x 740 = 329 500 x 1008 = 452 500 x 1276 = 575 500 x 1544 = 698 500 x 1812 = 821
Max. Working Pressure:	10 bar
Max.Heat of Working:	95 degrees c.

Click here for Technical Data
