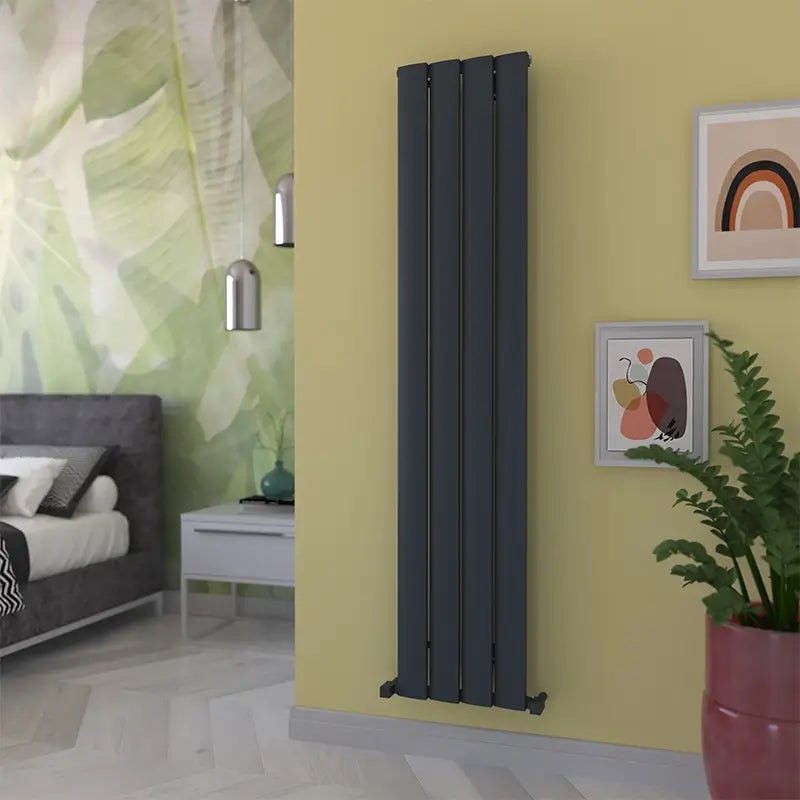

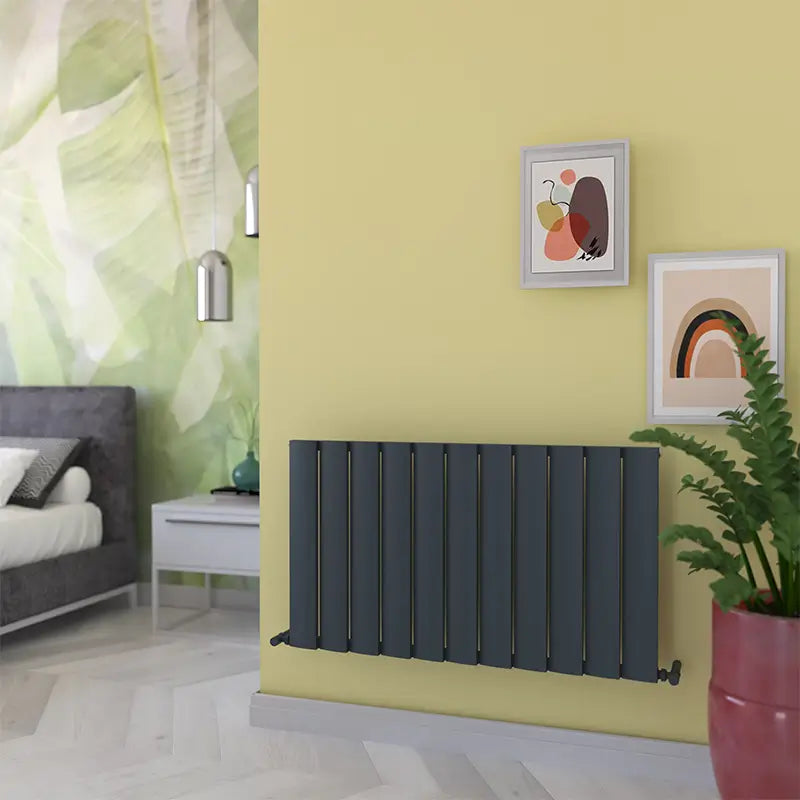

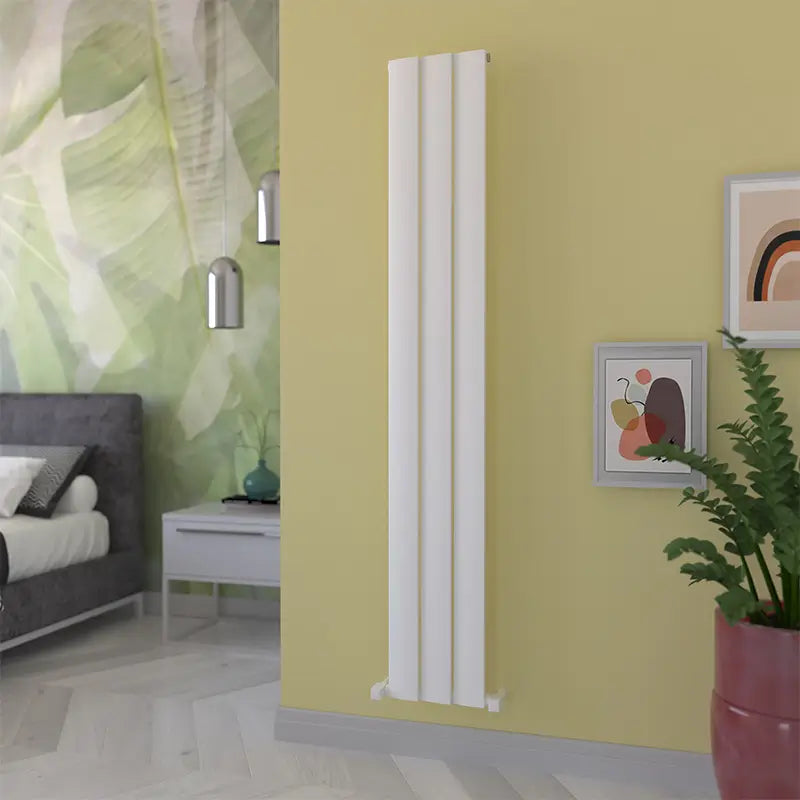

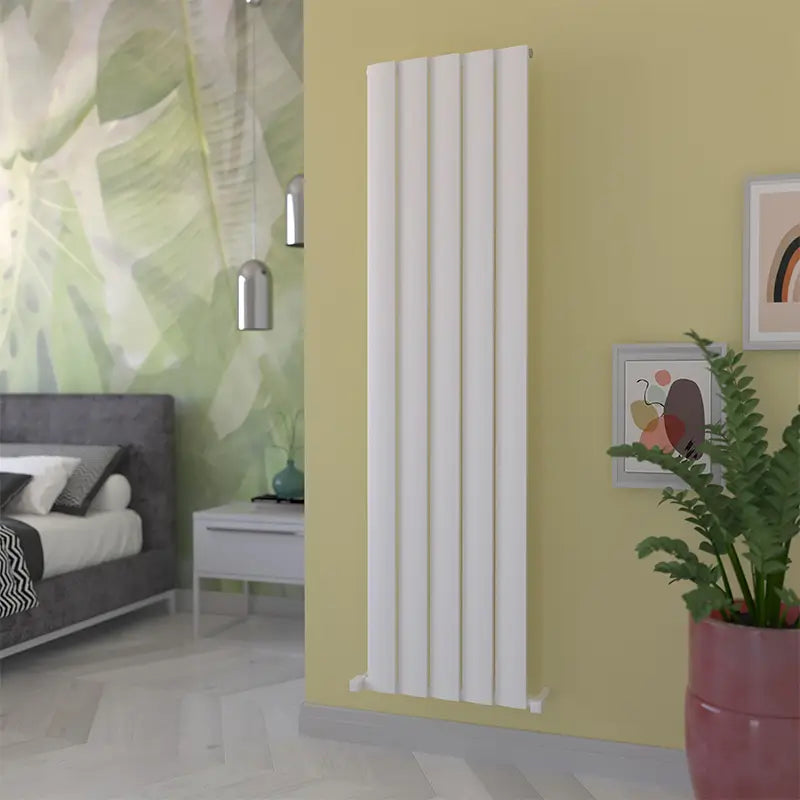

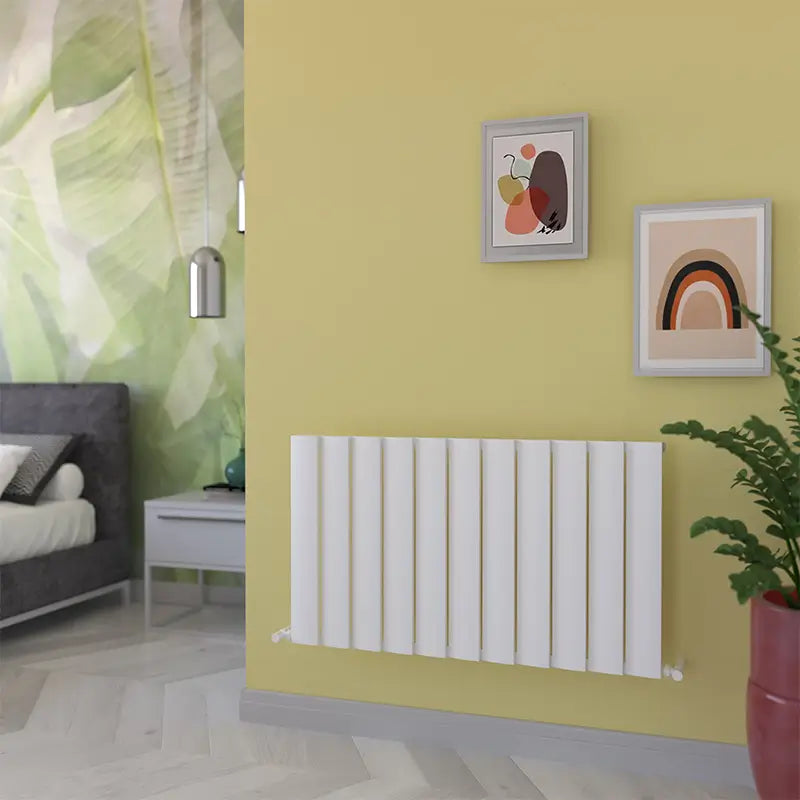

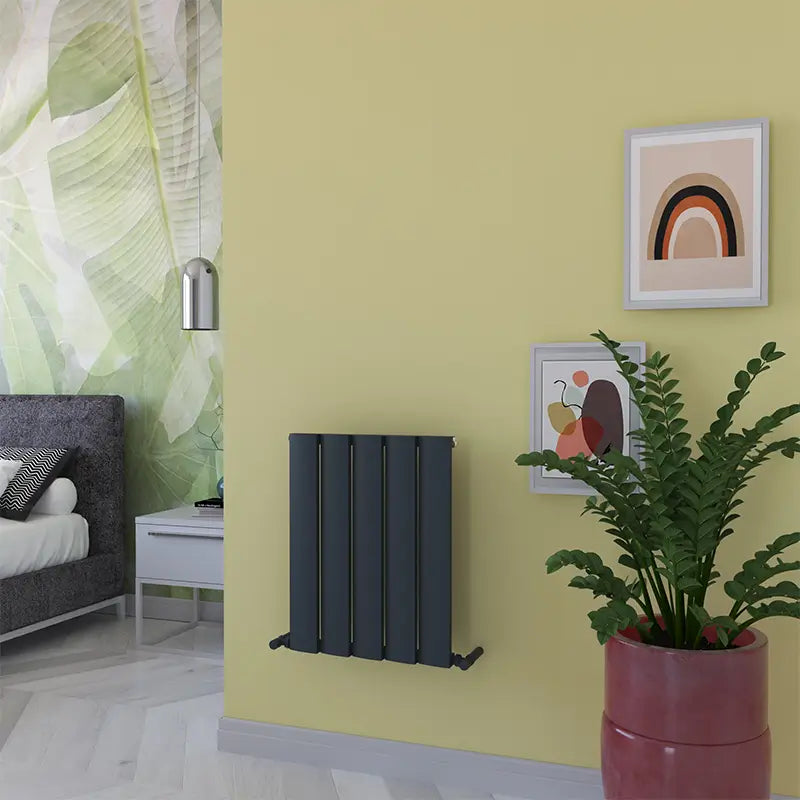

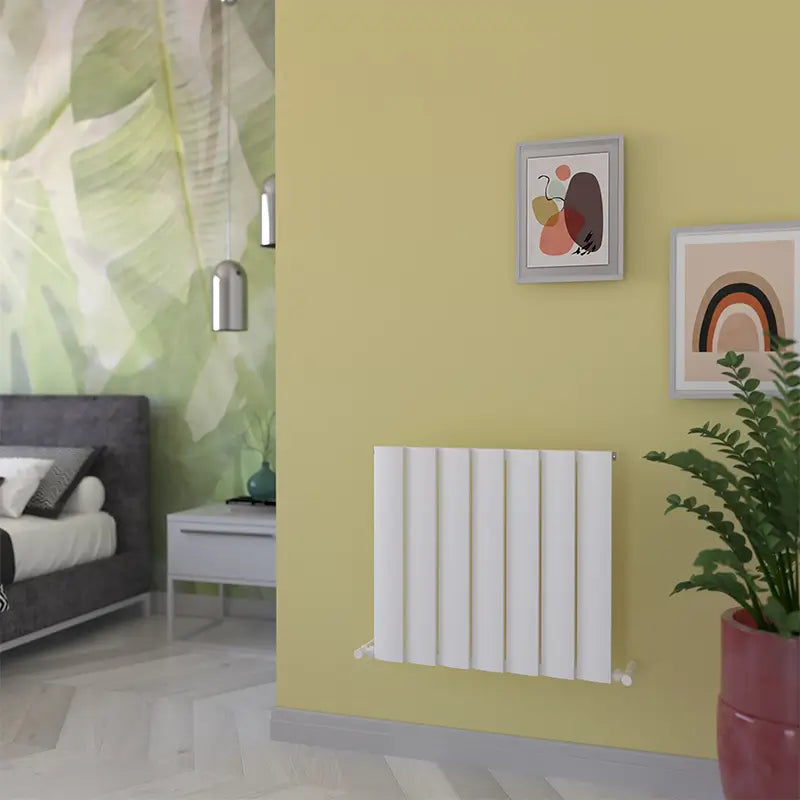

Carisa Step Aluminium Radiator (8 sizes, 2 colours)
- 1,912–4,972 BTU heat output at ΔT50
- For wet central heating systems
- Aluminium, 5-year guarantee
Couldn't load pickup availability
Direct Bank Transfers available for orders over £500.
Finance Options with PayPal & Klarna
Need Any Help? Speak to one of our Sales team between 9am & 5pm - seven days a week for expert advice.

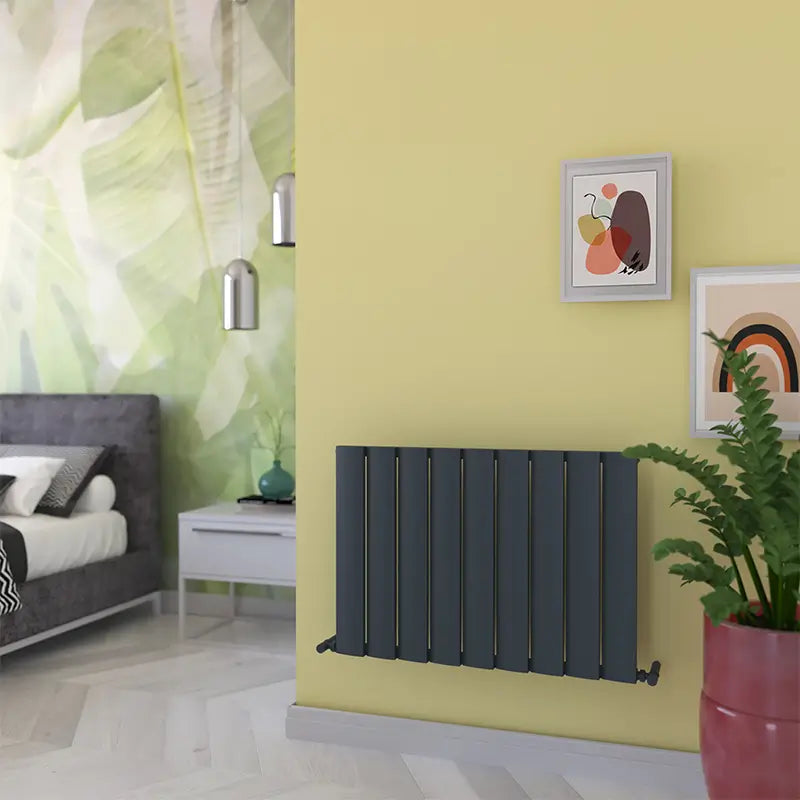

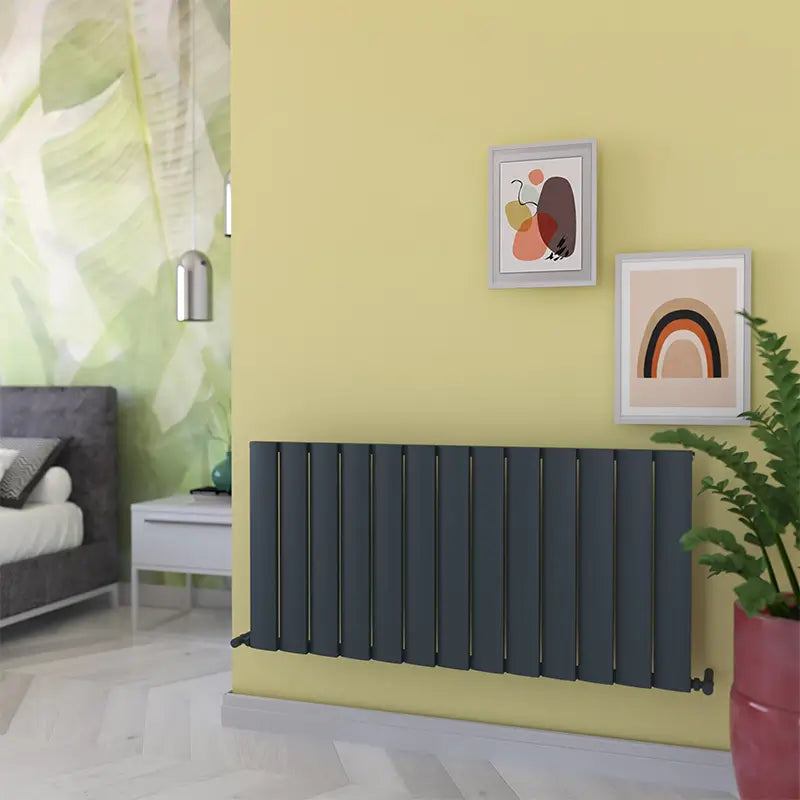

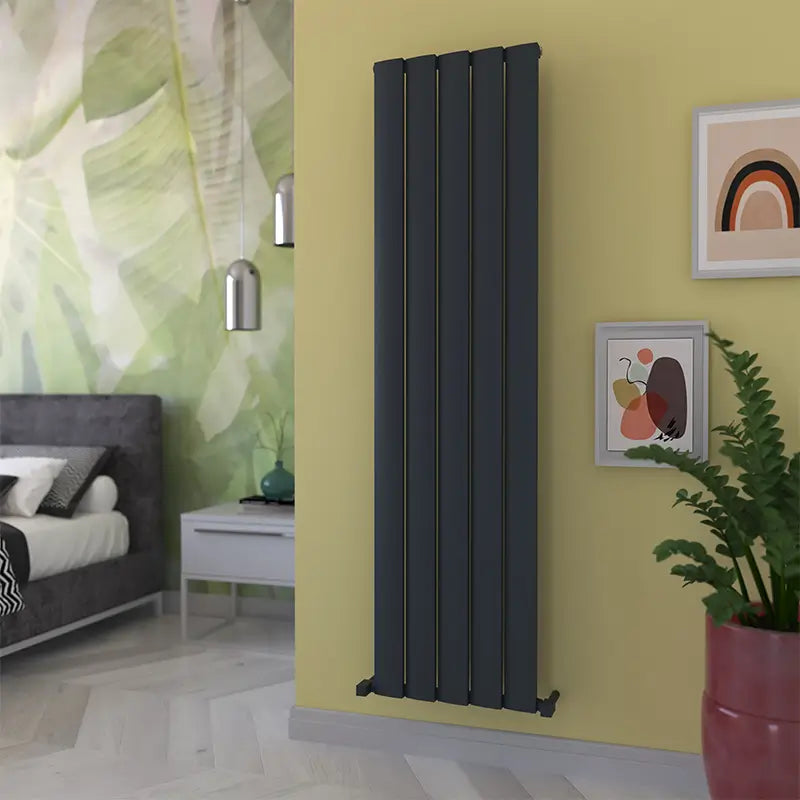

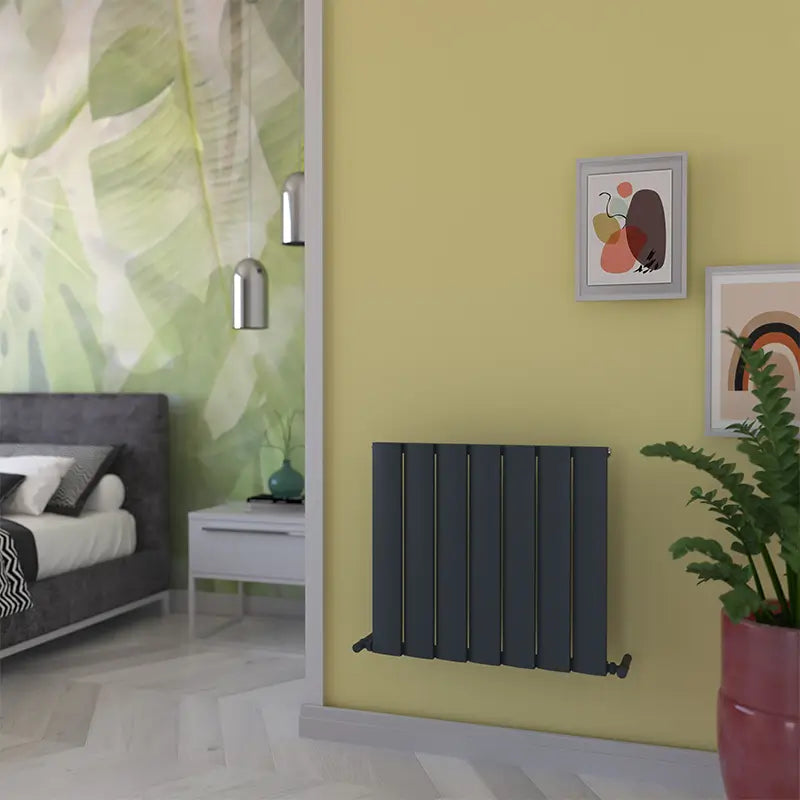

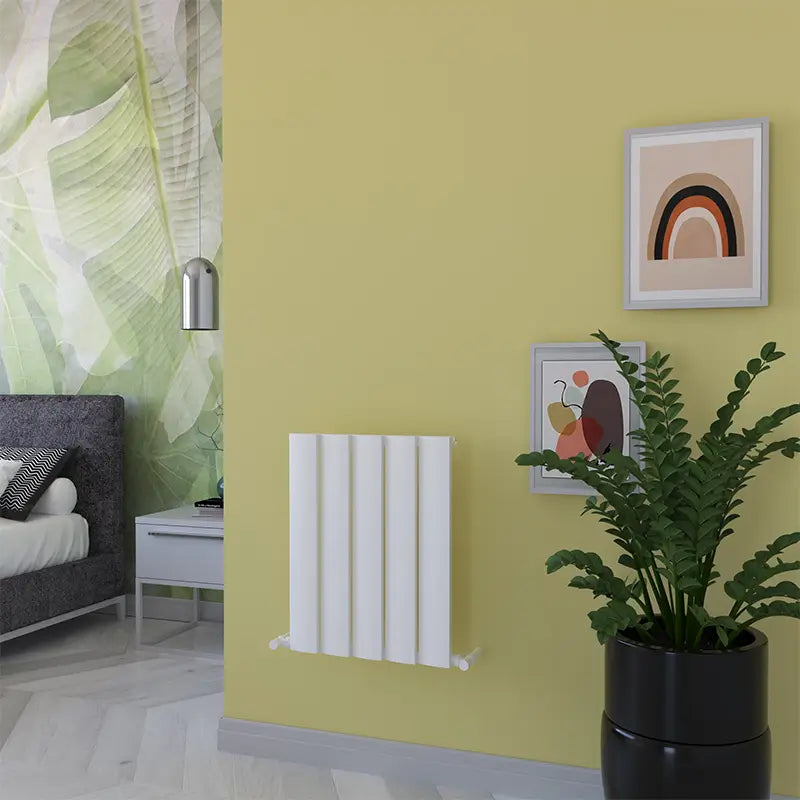

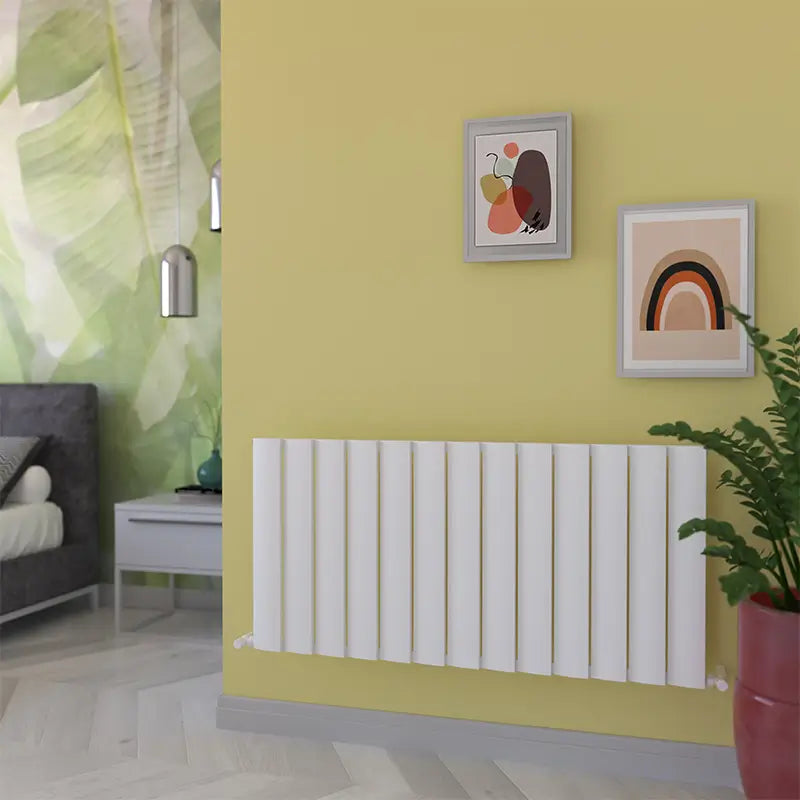

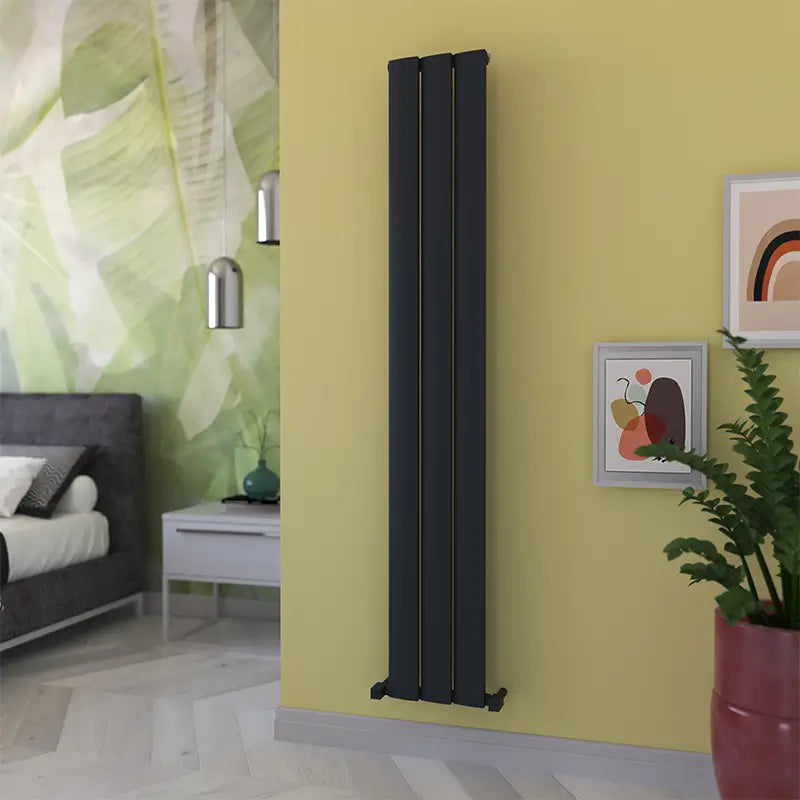

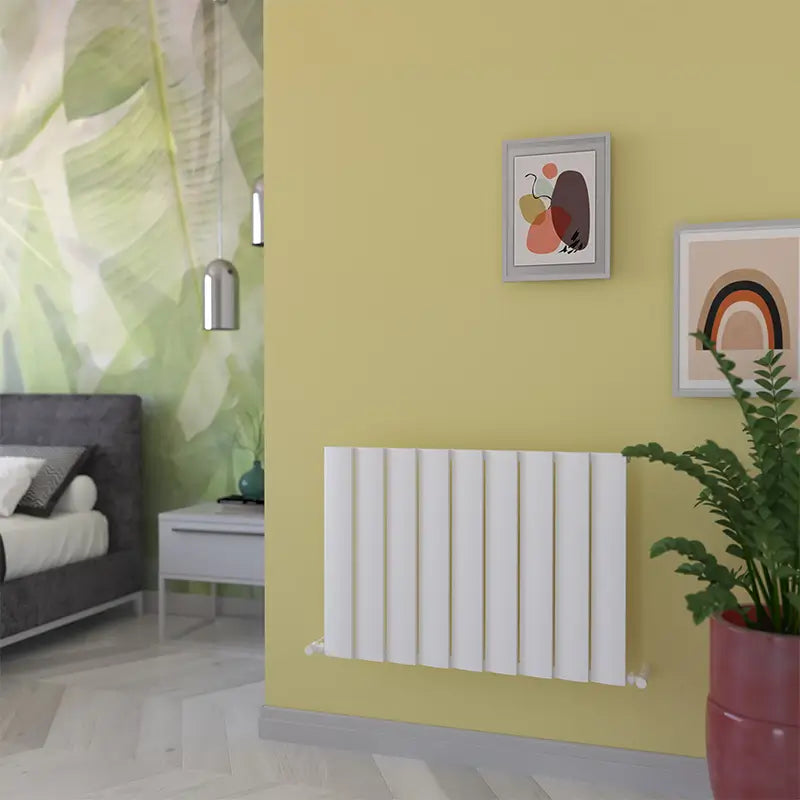

The Carisa Step is an aluminium radiator for wet central heating systems. It is available in 8 sizes, finished in Textured White and Textured Anthracite, with heat outputs from 1,912 to 4,972 BTU at ΔT50. It is backed by a 5-year manufacturer's warranty.
The stock finishes on this product are Textured White or Textured Anthracite, but if you would like to request a different finish based on the options found HERE, then please contact us via telephone or email and we will try and help.
Specifications
| Material: | Aluminium |
| Warranty: | 5 years |
| Fuel Type: | Central Heating |
| Size (mm): | H600 x W470 H600 x W660 H600 x W850 H600 x W1040 H600 x W1230 H1800 x W280 H1800 x W375 H1800 x W470 |
| Heat Output ΔT50: | H600 x W470: 1,912 BTU / 560 W H600 x W660: 2,677 BTU / 785 W H600 x W850: 3,442 BTU / 1009 W H600 x W1040: 4,207 BTU / 1233 W H600 x W1230: 4,972 BTU / 1457 W H1800 x W280: 2,956 BTU / 866 W H1800 x W375: 3,942 BTU / 1155 W H1800 x W470: 4,927 BTU / 1444 W |
| Pipe Centres (mm): | 370-465-560-750-940-1130-1320 |
| Wall to Pipe Centre (mm): | 30-50 |
| Wall to Face (mm): | 60-80 |
| Max. Working Pressure: | 10 bar |
| Max. Working Temperature: | 95°C |
