Cosytoes Softmat Underfloor Heating Wire (140w/sqm)
- Designed for laminate and engineered wood floors
- Foil heat exchanger for even, cold-spot-free heat
- Only 6 mm system depth, lifetime guarantee
Couldn't load pickup availability
Direct Bank Transfers available for orders over £500.
Finance Options with PayPal & Klarna
Need Any Help? Speak to one of our Sales team between 9am & 5pm - seven days a week for expert advice.
Bring the comfort of underfloor heating to laminate and engineered wood floors with Cosytoes Softmat, purpose-built for floating wooden floor installations.

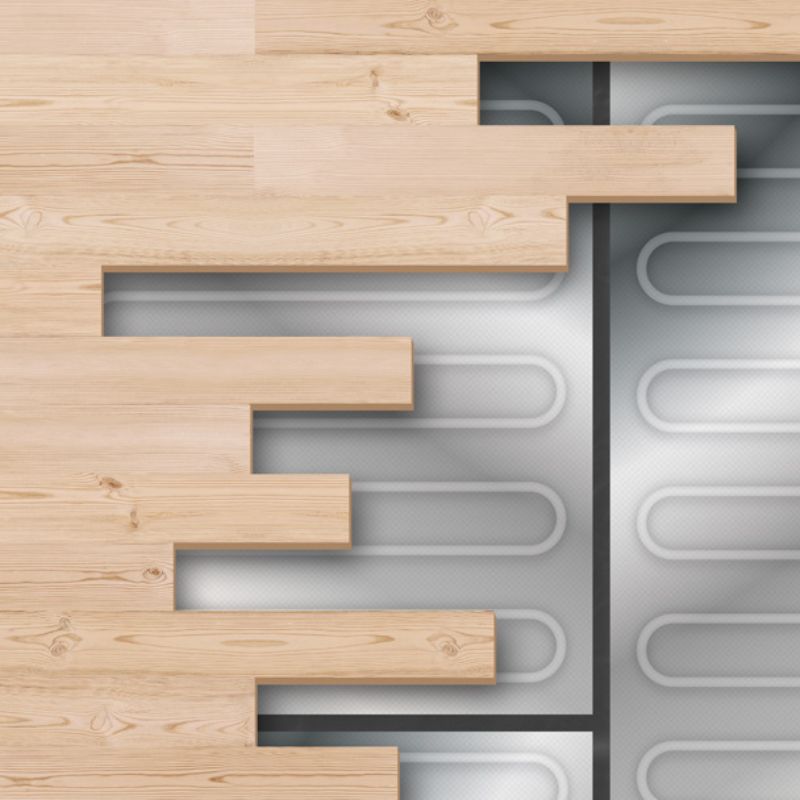

A foil heat exchanger spreads warmth evenly across the floor, eliminating cold spots. The heating cables are just 1.5mm thick and bed into the 5mm Softmat Underlay boards, so the total system depth is only 6mm. Paired with a Cosytoes timerstat, you get precise, efficient control over your heating schedule.
Softmat is suitable for living rooms, bedrooms, hallways and throughout the home. It is built to exceed international safety standards and comes with a lifetime guarantee.
Please note: this product must be installed with Cosytoes Softmat Underlay (sold separately).
Specifications
| Output: | 140W per sq.m (6.25W/m cable) |
| Voltage: | 230V |
| Cable: | 2 x single element |
| Outer Insulation: | Teflon |
| Inner Insulation: | Teflon |
| Cable Thickness: | 1.5mm |
| System Depth: | 6mm with 5mm Softmat Underlay |
| Heat Distribution: | Foil heat exchanger |
| Protection Class: | IPX7 |
| Cold Lead: | 1 connection, 4m long |
| Suitable For: | Laminate and engineered wood floors |
| Guarantee: | Lifetime |
Sizes & Outputs
| Heated Area (sq.m) | Total Output (W) | Code |
| 1 | 140 | SM1.0 |
| 1.5 | 210 | SM1.5 |
| 2 | 280 | SM2 |
| 2.5 | 350 | SM2.5 |
| 3 | 420 | SM3 |
| 3.5 | 490 | SM3.5 |
| 4 | 560 | SM4 |
| 5 | 700 | SM5 |
| 6 | 840 | SM6 |
| 7 | 980 | SM7 |
| 8 | 1120 | SM8 |
| 9 | 1260 | SM9 |
| 10 | 1400 | SM10 |
See the advice from Cosytoes on measuring and installing HERE.
