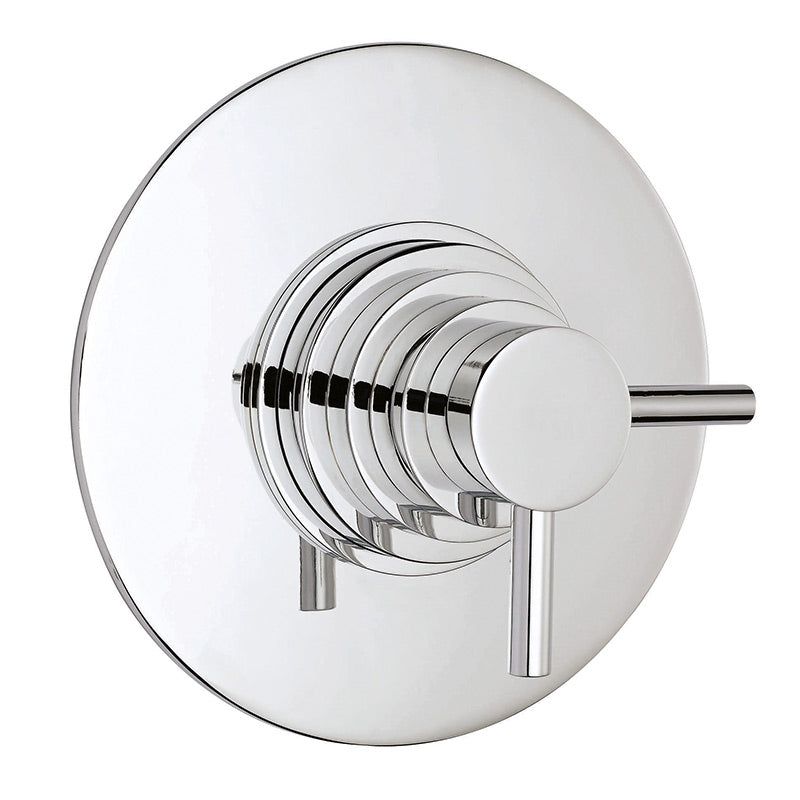

Hudson Reed Tec Dual Concealed Solid Brass Thermostatic Shower Valve (Chrome)
Couldn't load pickup availability
Direct Bank Transfers available for orders over £500.
Finance Options with PayPal & Klarna
Need Any Help? Speak to one of our Sales team between 9am & 5pm - seven days a week for expert advice.
Take on the challenge of the Hudson Reed Tec Dual Concealed Thermostatic Shower Valve! With a sleek design and accurate flow control, this valve ensures a consistent water temperature within +/- 1 degree, even with varying water pressure. Plus, it provides full thermal protection to prevent scalding. No matter your water system, this valve delivers excellent flow rates.
Specifications
| Guarantee (Years): |
20
|
| Range: |
Shower Valves Round
|
| Colour: |
Chrome |
| Flow Rate 0.1Bar l/m: |
5.5
|
| Flow Rate 0.2Bar 1/m: | 6.5 |
| Flow Rate 0.5Bar l/m: |
14.5
|
| Flow Rate 1Bar l/m: | 22 |
| Flow Rate 2Bar l/m: |
30
|
| Flow Rate 3Bar l/m: |
35
|
| Handset Included: |
No
|
| Head Included: |
No
|
| No. Of Handles: |
2
|
| Outlet Elbow Included: | No |
| Pipe Size (mm): |
15
|
|

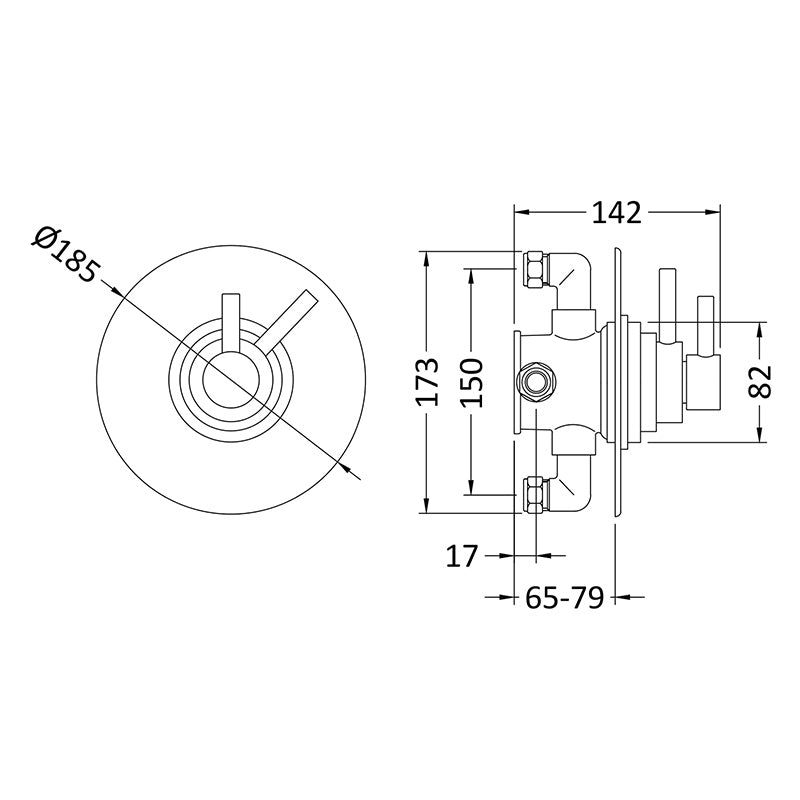

Product Depth (mm): |
142 |
| Product Height (mm): |
185
|
| Product Width (mm): |
185
|
| Shower Valve Style Shape: | Round |
| Stain Rust Resistant: | Yes |
| TMV2 Approved: | No |
| Valve Handle Included: |
Yes |
| Valve Handle Type/Shape: |
Lever Handle
|
| Valve Included: |
Yes
|
| WRAS Approved: | No |
To view the Fitting Instructions for this product, click HERE
To view the Technical Data Sheet for this product, click HERE
- Minimalist sleek design
- Accurate flow control
- Thermostatic control to +/- 1 degree - even if the water pressure fluctuates
- Full thermal protection to prevent scalding in the event of hot or cold water shut off
- In the event of hot or cold water failure the valve will shut down as per the relevant standard
- The unique cartridge is highly resistant to calcium build up - even in hard water areas
- Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
- Excellent flow rates - even at low pressure
- Our valves can deliver 5.5 litres per minute at 0.1 bar pressure
- The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
- Simply remove the cartridge turn 180° and replace
- Manufactured from solid brass
