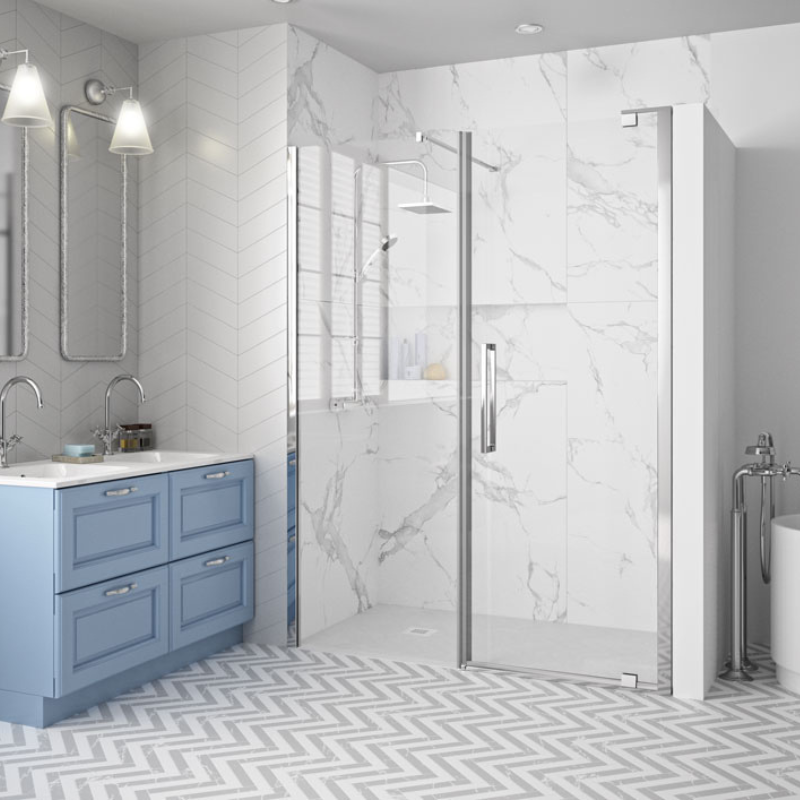

Merlyn 10 Series | Pivot Shower Door and Inline Panel (6 sizes, Chrome)
Couldn't load pickup availability
Direct Bank Transfers available for orders over £500.
Finance Options with PayPal & Klarna
Need Any Help? Speak to one of our Sales team between 9am & 5pm - seven days a week for expert advice.
Bring a premium, hotel-inspired look to your bathroom with the Merlyn 10 Series Pivot Shower Door and Inline Panel. Designed with exceptional craftsmanship, this luxurious shower enclosure combines elegant styling with robust construction to create a striking centerpiece for any modern bathroom. Manufactured from 10mm Mershield StayClear protected toughened glass, this enclosure offers a reassuringly solid feel and long-lasting durability. The smooth-opening pivot door is complemented by a stylish inline panel, available in a range of sizes to suit different shower spaces. Finished with a sophisticated chrome frame and a distinctive angular double handle, the 10 Series delivers a refined aesthetic while maintaining practical everyday performance. The advanced Mershield StayClear coating helps reduce the build-up of limescale and soap residue, making the glass easier to clean and keeping it looking crystal clear for longer.
Specifications
| Size (mm) |
Tray Finish Recess
min-max |
X = Door
Opening Recess |
Y =Pivot /
Infold Outside Door Swing |
Z = Pivot /
Infold / Bifold Inside Door Swing |
A =
Moving Panel mm |
C = Fixed Panel mm |
|
W1200 x H2030
|
1150 - 1190
|
560
|
580
|
135 |
800
|
410
|
|
W1400 x H2030
|
1350 - 1390 | 560 | 580 | 135 | 800 | 610 |
|
W1500 x H2030
|
1450 - 1490 | 660 | 680 | 135 | 900 | 610 |
|
W1600 x H2030
|
1550 - 1590 | 560 | 580 | 135 | 800 | 810 |
|
W1700 x H2030
|
1650 - 1690 | 660 | 680 | 135 | 900 | 810 |
| W1800 x H2030 | 1750 - 1790 | 760 | 780 | 135 | 1000 | 810 |
- Glass Thickness: 10mm
- Glass finish: Clear
- Handing: Reversible
- Guarantee: Lifetime
To view the Technical Datasheet for this product, click HERE.
To view the Fitting Instructions for this product, click HERE.
