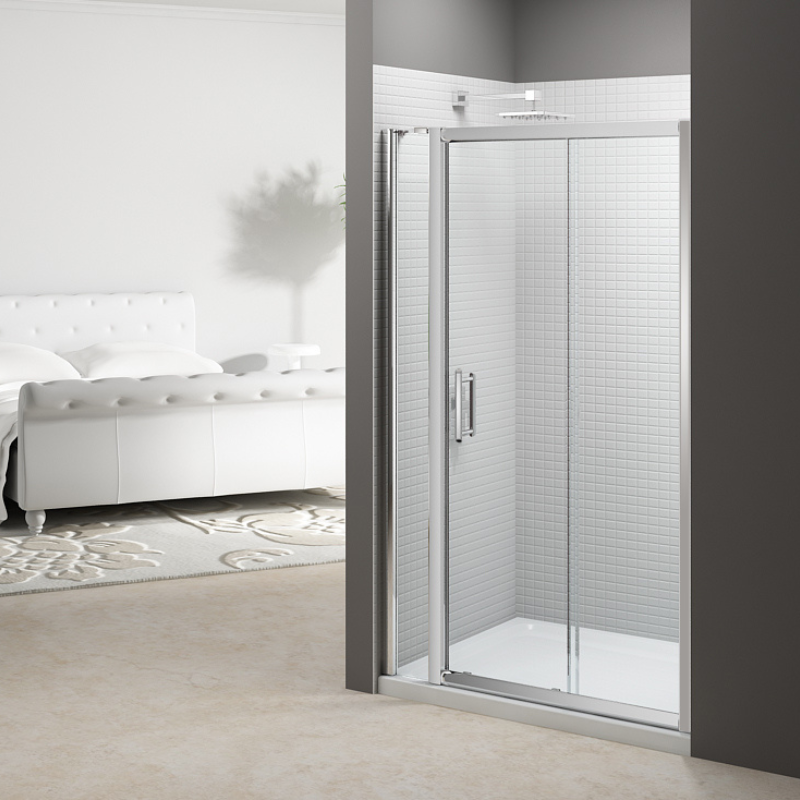

The Merlyn 6 Series Sliding Door and Inline Panel combines style with practicality, standing at an impressive 1900mm high. Featuring designer handles and quick-release double rollers, this enclosure opens with exceptionally smooth operation whilst remaining incredibly affordable. Mershield Stayclear protected glass comes as standard across the 6 Series range, delivering an "easy clean" finish that resists water spotting and soap residue. The reversible design offers flexibility during installation, and the chrome finish complements any modern bathroom aesthetic. Available in 15 sizes to suit various bathroom configurations, this sliding door and inline panel combination provides a contemporary solution for your shower space. All 6 Series shower enclosures are backed by our Lifetime Guarantee, reflecting our confidence in quality and durability. Specifications include 6mm clear glass, chrome finish, and reversible handing. Technical datasheets and fitting instructions are available to support your installation.
Variant Guide: Options marked (a), (b) and (c) indicate different inline panel configurations for the same overall enclosure size. Please refer to the specification table for the panel dimensions.
Specifications
| Size (mm) |
Tray Finish Recess min - max |
X = Door Opening Recess
|
A = Moving Panel mm |
B = Fixed Panel mm
|
C = Fixed Panel mm |
| W1000 x H1900 (a) | 1065-1140 |
380
|
492
|
420 | 140 |
| W1000 x H1900 (b) | 1140-1215 | 380 | 492 | 420 | 215 |
| W1100 x H1900 (a) | 1165-1240 | 430 | 542 | 470 | 140 |
| W1100 x H1900 (b) | 1240-1315 | 430 | 542 | 470 | 215 |
| W1100 x H1900 (c) |
1360-1460
|
430
|
542
|
470 | 215 |
| W1200 x H1900 (a) |
1265-1340
|
480
|
592
|
520 | 140 |
| W1200 x H1900 (b) | 1340-1415 | 480 | 592 | 520 | 215 |
| W1400 x H1900 (a) |
1465-1540
|
580
|
692 | 620 | 140 |
| W1400 x H1900 (b) | 1540-1615 | 580 | 692 | 620 | 215 |
| W1500 x H1900 (a) | 1565-1640 | 580 | 692 | 720 | 140 |
| W1500 x H1900 (b) | 1640-1715 | 580 | 692 | 720 | 215 |
| W1600 x H1900 (a) | 1665-1740 | 580 | 692 | 820 | 140 |
| W1600 x H1900 (b) | 1740-1815 | 580 | 692 | 820 | 215 |
| W1700 x H1900 (a) | 1765-1840 | 580 | 692 | 920 | 140 |
| W1700 x H1900 (b) | 1840-1915 | 580 | 692 | 920 | 215 |
- Glass Thickness MM: 6mm
- Glass finish: Clear
- Colour: Chrome
- Handing: Reversible
- Guarantee: Lifetime
