Merlyn 8 Series | Sliding Shower Door and Inline Panel (15 sizes, Chrome)
Couldn't load pickup availability
Direct Bank Transfers available for orders over £500.
Finance Options with PayPal & Klarna
Need Any Help? Speak to one of our Sales team between 9am & 5pm - seven days a week for expert advice.

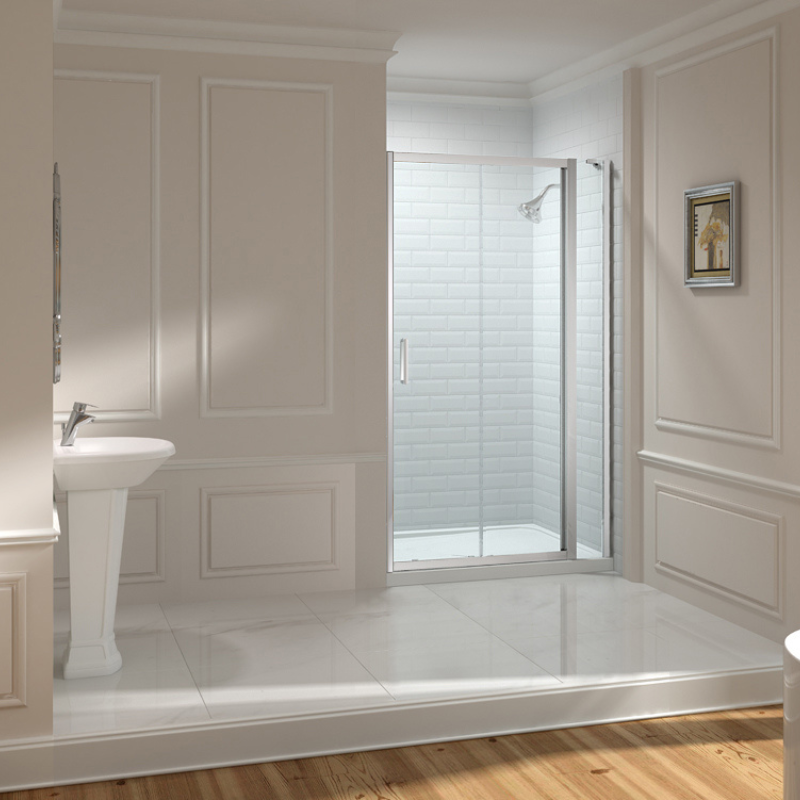

The Merlyn 8 Series Sliding Shower Door and Inline Panel is a beautifully engineered shower enclosure that combines luxurious styling with exceptional performance. Designed to create a spacious and contemporary showering area, this enclosure features a sleek sliding door paired with an inline panel for a seamless, open feel in any modern bathroom. Standing at 1950mm high and crafted from premium 8mm toughened safety glass, the enclosure delivers both durability and elegance. The smooth gliding sliding door operates effortlessly on precision-engineered quick-release double rollers, allowing for easy cleaning and maintenance while ensuring a refined showering experience every day. Finished with striking chrome profiles and fully concealed internal fittings, the enclosure offers a clean, minimalist appearance from every angle. Merlyn’s signature Mershield Stayclear protected glass comes as standard, helping to repel water and reduce limescale build-up for easier cleaning and long-lasting clarity.
Variant Guide: Options marked (A),(B) and (C) have the same overall size but has different panel configurations. Please refer to the specification table for the panel dimensions.
Specifications
| Size (mm) |
Adjustment with Inline Panel
min - max |
A = Moving Panel mm
|
B = Fixed Panel mm | C = Fixed Panel mm |
| W1000 x H1950 (a) |
1080-1140
|
470
|
440 | 150 |
| W1000 x H1950 (b) |
1140-1200
|
470 | 440 | 210 |
| W1100 x H1950 (a) |
1180-1240
|
530 | 480 | 150 |
| W1100 x H1950 (b) |
1240-1300
|
530 | 480 | 210 |
| W1100 x H1950 (c) |
1370-1450
|
530
|
480 | 150+210 |
| W1200 x H1950 (a) |
1280-1340
|
580
|
530 | 150 |
| W1200 x H1950 (b) |
1340-1400
|
580 | 530 | 210 |
| W1400 x H1950 (a) |
1480-1540
|
680
|
630 | 150 |
| W1400 x H1950 (a) | 1540-1600 | 680 | 630 | 210 |
| W1500 x H1950 (a) | 1580-1640 | 680 | 730 | 150 |
| W1500 x H1950 (b) | 1640-1700 | 680 | 730 | 210 |
| W1600 x H1950 (a) | 1680-1740 | 680 | 830 | 150 |
| W1600 x H1950 (b) | 1740-1800 | 680 | 830 | 210 |
| W1700 x H1950 (a) | 1780-1840 | 680 | 930 | 150 |
| W1700 x H1950 (b) | 1840-1900 | 680 | 930 | 210 |
- Glass Thickness MM: 8mm
- Glass finish: Clear
- Colour: Chrome
- Handing: Reversible
- Guarantee: Lifetime
To view the Technical Datasheet for this product, click HERE.
To view the Fitting Instructions (Sliding Door) for this product, click HERE.
To view the Fitting Instructions (Inline Panel) for this product, click HERE.
