Merlyn MBOX | Pivot Shower Door (3 sizes, 2 colours)

SKU: MBP760BBR
(0)
5.0 1 online reviews
The summary star rating & review is based on aggregated reviews of this product across the web. It cannot be altered by the merchant and can be verified by emailing support@onereview.app.

£428.80 inc. VAT
-30% £609.00 £428.80 inc. VAT
Size (mm)
Colour

100% Secure & Encrypted Payments
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Direct Bank Transfers available for orders over £500.
Finance Options with PayPal & Klarna

Need Any Help? Speak to one of our Sales team between 9am & 5pm - seven days a week for expert advice.

Email 0333 0908834

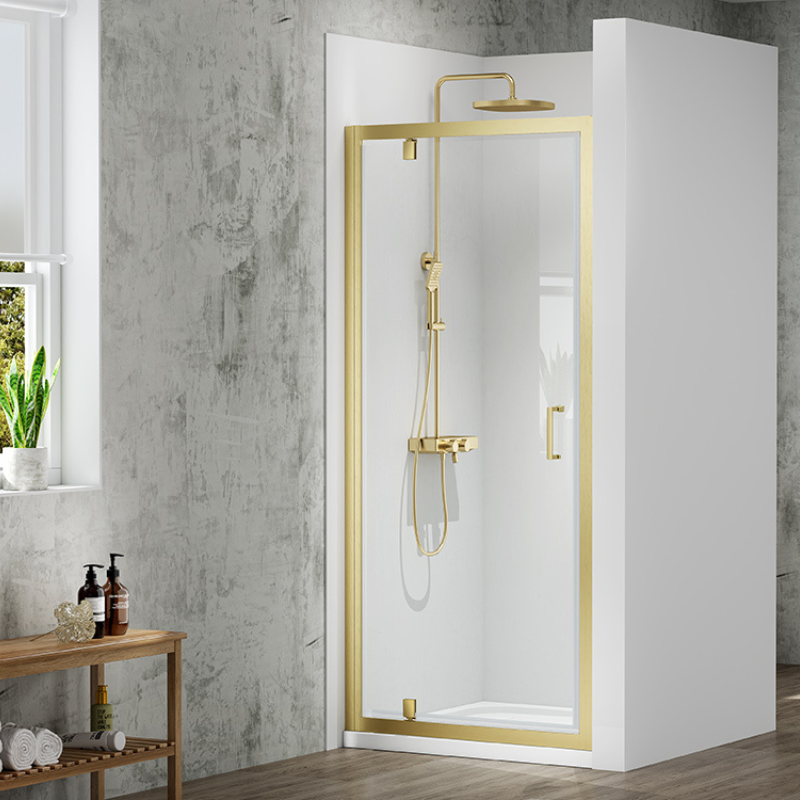

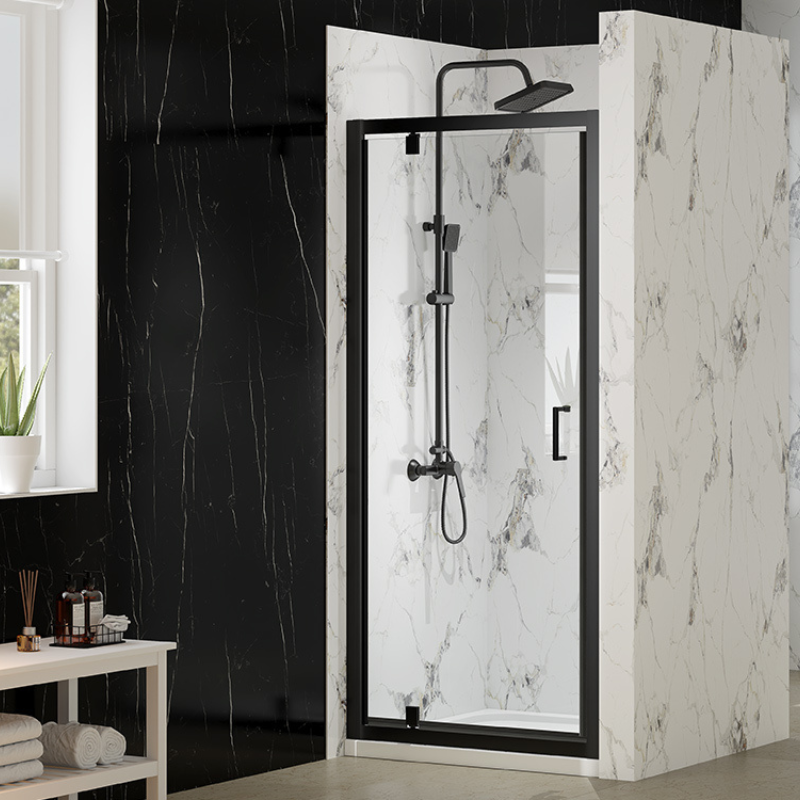

The Merlyn MBOX Pivot Shower Door combines practical engineering with refined aesthetics, available in Matt Black and Brushed Brass finishes, designed for recess and corner installations. Standing at 1900mm height, this framed pivot door is ideal for alcove showers, ensuites, and space-saving bathrooms. Its smooth pivot mechanism provides easy access without requiring outward clearance—perfect for compact layouts. Featuring 6mm toughened safety glass, magnetic door seals, and a colour-matched designer handle, the MBOX ensures a secure, watertight closure with a solid, dependable feel. Mershield Stayclear glass protection resists limescale and soap buildup, reducing daily maintenance. The reversible design opens from left or right, with 20mm adjustment per wall profile for precise fitting on uneven walls. Pre-assembled fixtures make installation straightforward. Pair with an optional side panel to create a stylish corner enclosure. Backed by a lifetime guarantee and CE & UKCA approved, the MBOX delivers quality and safety in a contemporary, industrial-style package.

Specifications

Size (mm) Recess / Side Panel Adjustment Ext. Profile Inline Panel Door Opening (X) Outside Door Swing (Y) Inside Door Swing (Z) Moving Panel (A)
W760 x H1900 710-750 730-780 - 501 493 136 615
W800 x H1900 750-790 770-810 150: 880-940
210: 940-1000		 541 533 136 655
W900 x H1900 850-890 870-910 150: 980-1040
210: 1040-1100		 590 583 186

755



All measurements in mm. Recess and Side Panel adjustment ranges are the same. "-" means no inline panel option for that size.

  • Glass Thickness MM: 6mm
  • Glass finish: Clear
  • Colour: Brushed Brass / Matt Black
  • Handling: Reversible
  • Guarantee: Lifetime

To view the Technical Datasheet for this product, click HERE.
To view the Technical Fitting Instructions for this product, click HERE.
