Merlyn MBOX | Pivot Shower Door (5 sizes, Polished Chrome)
Couldn't load pickup availability
Direct Bank Transfers available for orders over £500.
Finance Options with PayPal & Klarna
Need Any Help? Speak to one of our Sales team between 9am & 5pm - seven days a week for expert advice.

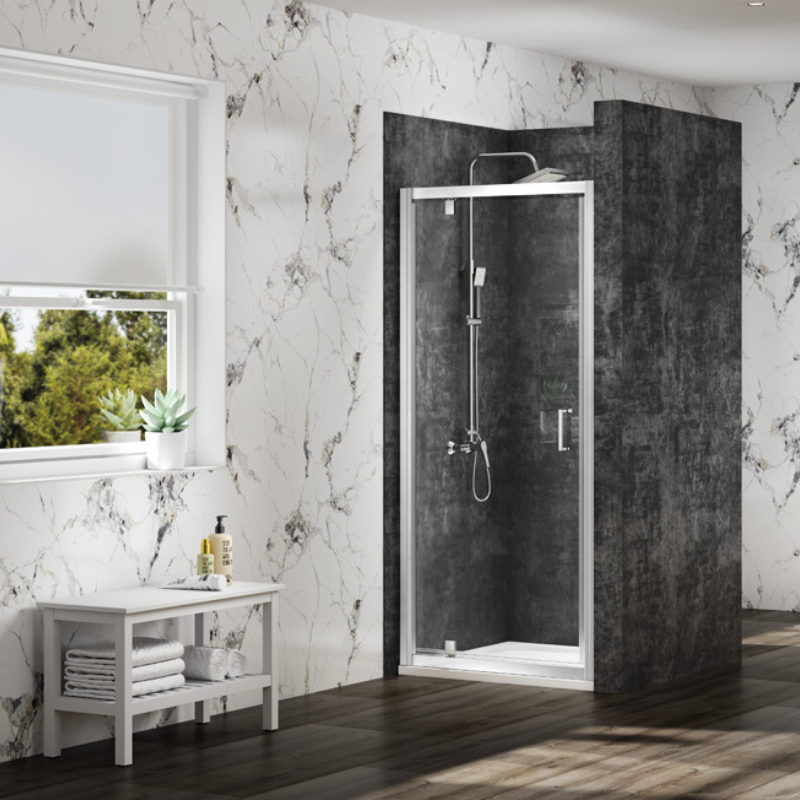

The MERLYN MBOX Pivot Shower Door combines practicality with contemporary style, making it an ideal solution for recess and corner installations. Standing at 1900mm in height, this versatile enclosure suits a range of bathroom layouts and configurations. Available in five sizes (700mm to 1000mm widths), the MBOX range features flexible adjustment options to accommodate various installation scenarios, including recess-only setups, side panel combinations, extension profiles, and inline panel arrangements. The pre-assembled fixtures streamline installation, reducing fitting time and complexity. Constructed from 6mm clear glass with Polished Chrome aluminium framing, this shower door delivers durability and a refined aesthetic. The reversible handling design adds flexibility to your installation approach. Backed by a lifetime guarantee, the MERLYN MBOX represents a long-term investment in your bathroom. Technical datasheets and detailed fitting instructions are available to support your installation process.
Specifications
| Size (mm) | Recess/ Side Panel Adjustment | Ext. Profile | Inline Panel | Door Opening (X) | Outside Door Swing (Y) | Inside Door Swing (Z) | Moving Panel (A) |
|---|---|---|---|---|---|---|---|
| W700 x H1900 | 650-690 | 670-710 | 150: 780-840 210: 840-900 |
441 | 433 | 136 | 555 |
| W760 x H1900 | 710-750 | 730-780 | - | 501 | 493 | 136 | 615 |
| W800 x H1900 | 750-790 | 770-810 | 150: 880-940 210: 940-1000 |
541 | 533 | 136 | 655 |
| W900 x H1900 | 850-890 | 870-910 | 150: 980-1040 210: 1040-1100 |
590 | 583 | 186 | 755 |
| W1000 x H1900 | 950-990 | 970-1010 | 150: 1080-1140 210: 1140-1200 |
661 | 653 | 214 | 855 |
All measurements in mm. Recess and Side Panel adjustment ranges are the same. "-" means no inline panel option for that size.
- Glass Thickness MM: 6mm
- Glass finish: Clear
- Colour: Polished Chrome
- Handling: Reversible
- Guarantee: Lifetime
To view the Technical Datasheet for this product, click HERE.
To view the Technical Fitting Instructions for this product, click HERE.
