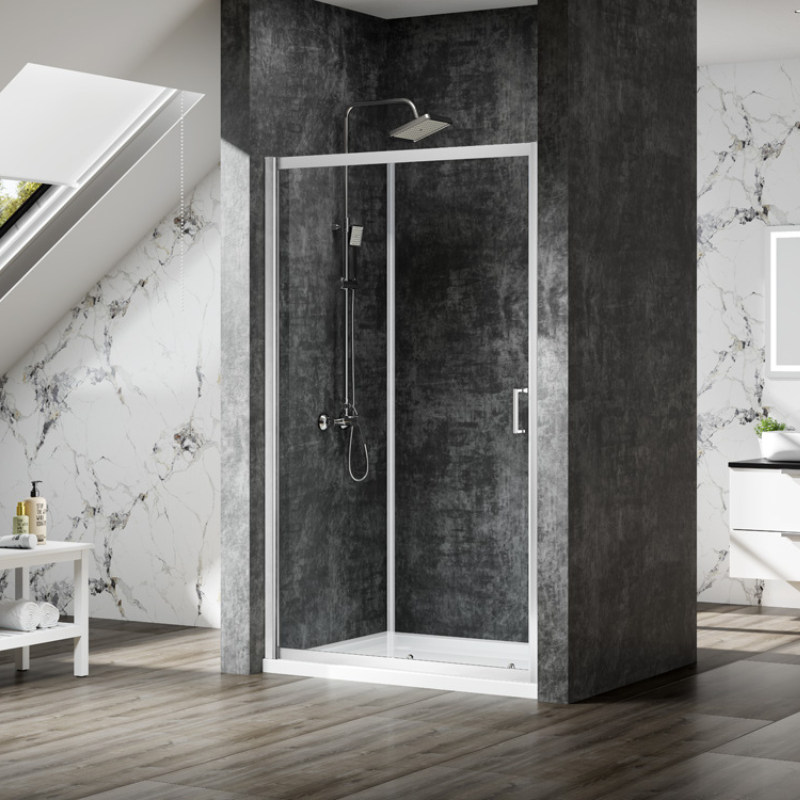

Merlyn MBOX | Sliding Shower Door | In Recess | Loft Height (9 sizes, Polished Chrome)

SKU: MBS1000
(0)

£381.25 inc. VAT
-28% £528.15 £381.25 inc. VAT
Size (mm)
Colour

100% Secure & Encrypted Payments
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Direct Bank Transfers available for orders over £500.
Finance Options with PayPal & Klarna

Need Any Help? Speak to one of our Sales team between 9am & 5pm - seven days a week for expert advice.

Email 0333 0908834

MERLYN MBOX Sliding Shower Door in Recess – The Perfect Shower Solution for Small Bathrooms & Lofts When space is limited, the MERLYN MBOX Sliding Shower Door in Recess (Loft Height) offers the ideal balance of style, function, and compact design. Specifically engineered for small bathrooms, loft conversions, and ensuites with restricted ceiling heights, this framed sliding door fits beautifully into alcoves or recesses without compromising performance. Constructed from 6mm toughened safety glass with a space-saving sliding mechanism and magnetic door seals for a watertight close, this shower door is both robust and practical. The Polished Chrome finish and designer handle deliver a sleek, modern aesthetic that enhances even the smallest of bathrooms. The easy-fit design allows for 20mm adjustment per wall profile, with an optional +20mm extension profile providing added flexibility for tricky loft or dormer layouts. Reversible opening, CE/UKCA certification, and Mershield Stayclear coating ensure reliability and easy maintenance. Pair it with an optional side panel to create a compact corner enclosure, or install between walls for a minimalist look. Available in 9 sizes ranging from 1000mm to 1700mm width, with heights of 1800mm or 1900mm. Backed by a lifetime guarantee, the MBOX in Loft Height is a smart, long-lasting solution for showers in small bathrooms.

Specifications

Size (mm) Recess/ Side Panel Adjustment Ext. Profile Inline Panel Door Opening (X) Moving Panel (A) Fixed Panel (B)
W1200 x H1800 (Loft Height) 1150-1190 1170-1210 - 467 580 530
W1000 x H1900 950-990 970-1010 150: 1080-1140
210: 1140-1200		 367 480 430
W1100 x H1900 1050-1090 1070-1110 150: 1180-1240
210: 1240-1300		 417 530 480
W1200 x H1900 1150-1190 1170-1210 150: 1280-1340
210: 1340-1400		 467 580 530
W1300 x H1900 1250-1290 1270-1310 150: 1380-1410
210: 1410-1500		 517 630 580
W1400 x H1900 1350-1390 1370-1410 150: 1480-1540
210: 1540-1600		 567 680 630
W1500 x H1900 1450-1490 1470-1510 150: 1580-1640
210: 1640-1700		 567 680 730
W1600 x H1900 1550-1590 1570-1610 150: 1680-1740
210: 1740-1800		 567 680 830
W1700 x H1900 1650-1690 1670-1710 150: 1780-1840
210: 1840-1900		 567 680 930

All measurements in mm. Recess and Side Panel adjustment ranges are the same. "-" means no inline panel option for that size.

  • Glass Thickness MM: 6mm
  • Glass finish: Clear
  • Colour: Polished Chrome
  • Handling: Reversible
  • Guarantee: Lifetime

To view the Technical Datasheet for this product, click HERE.
To view the Technical Fitting Instructions for this product, click HERE.
