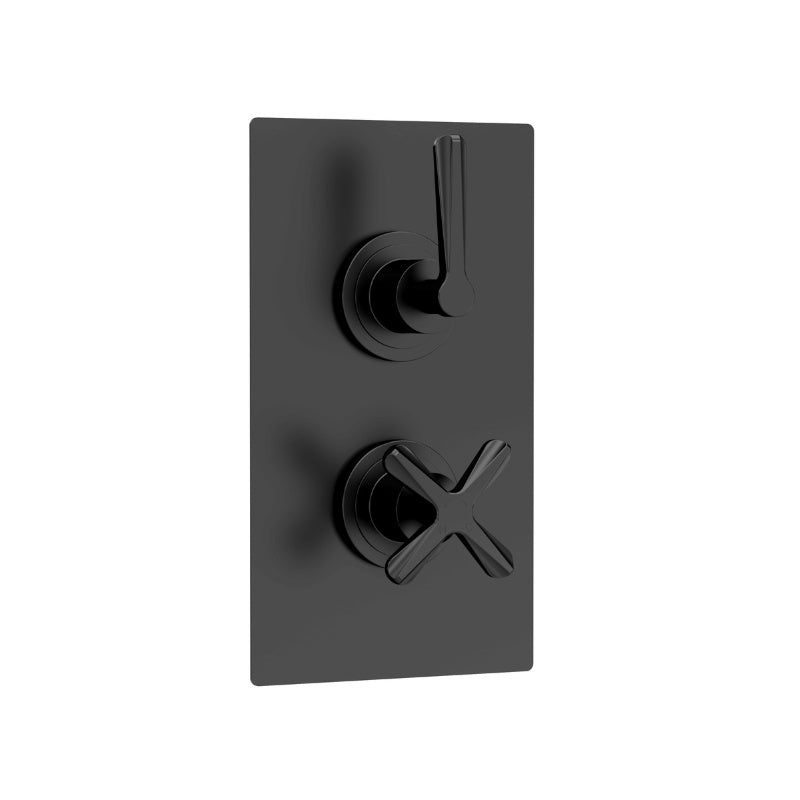

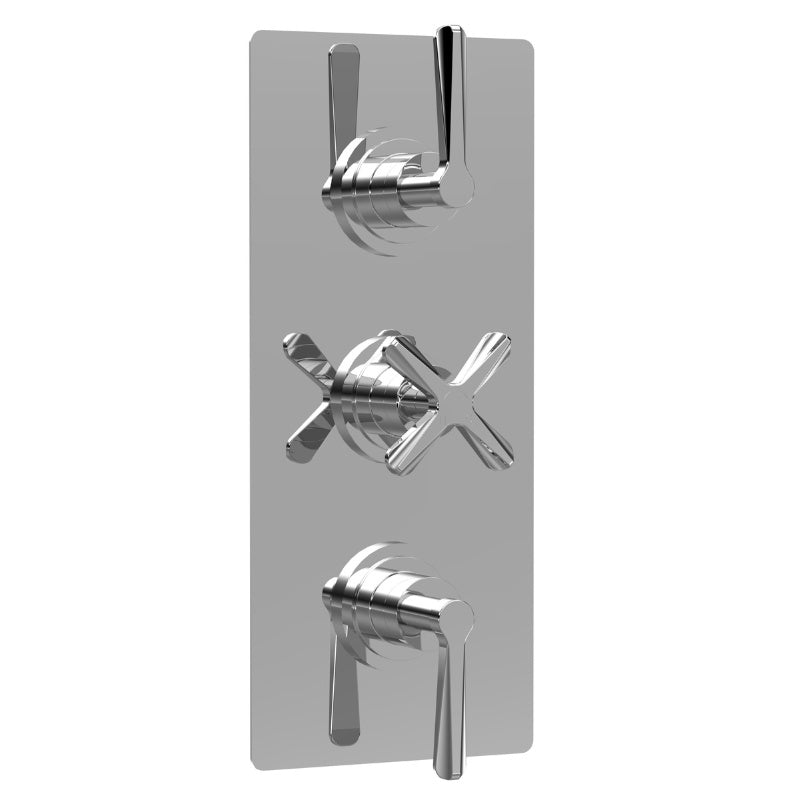

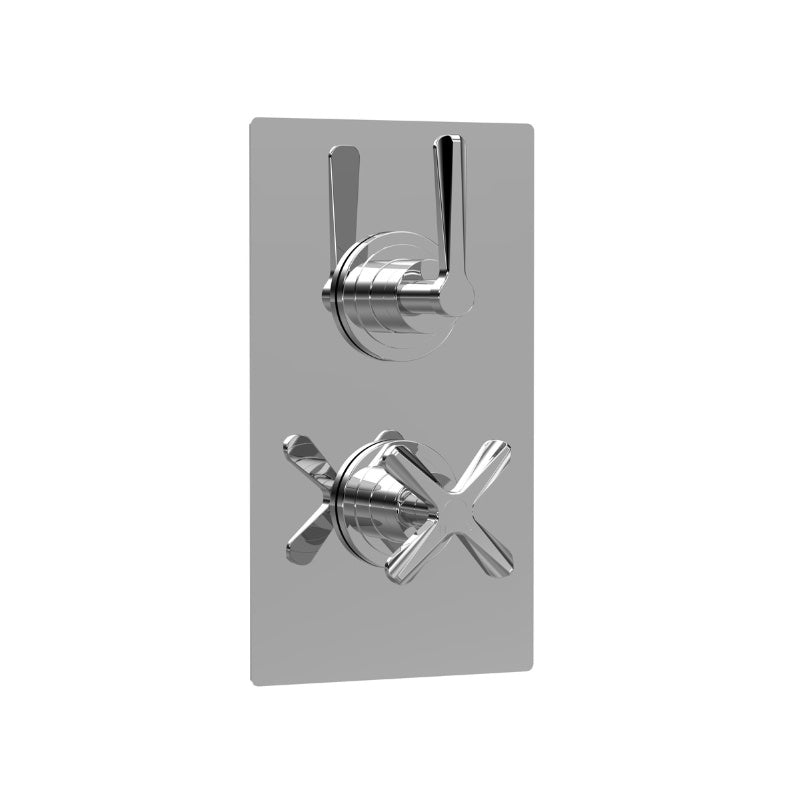

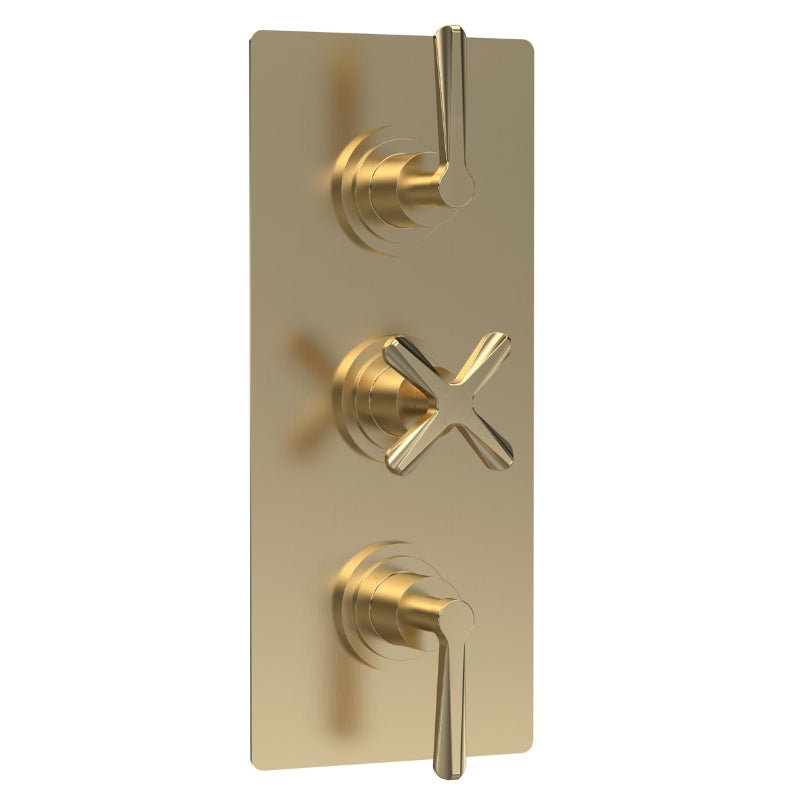

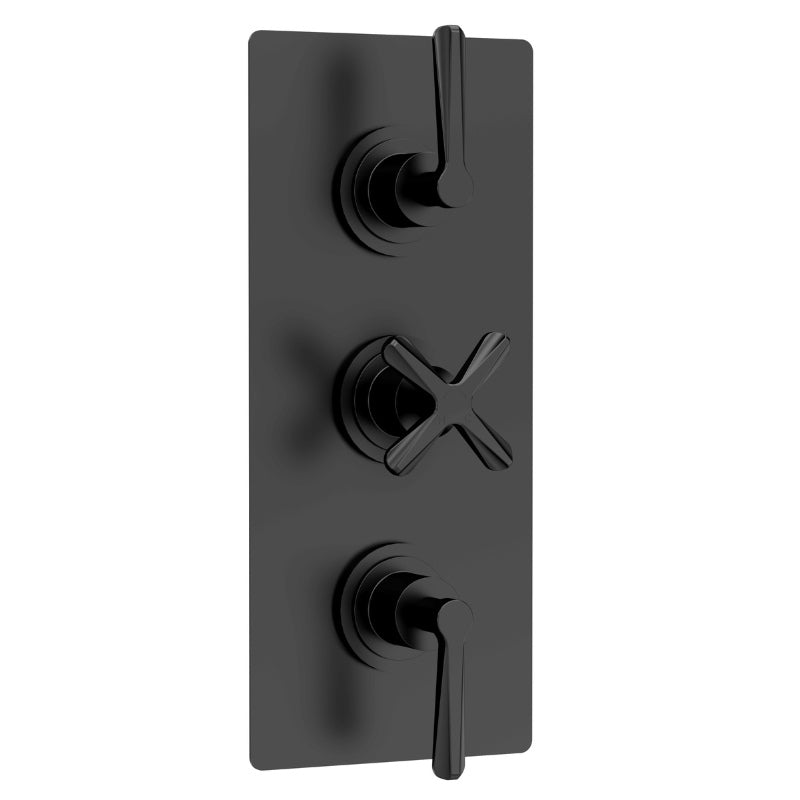

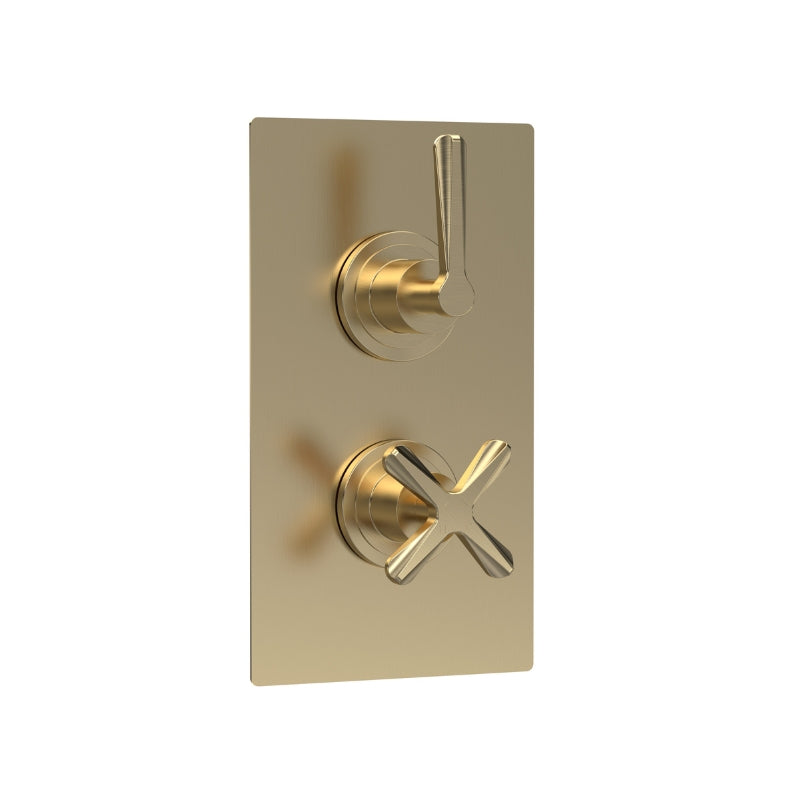

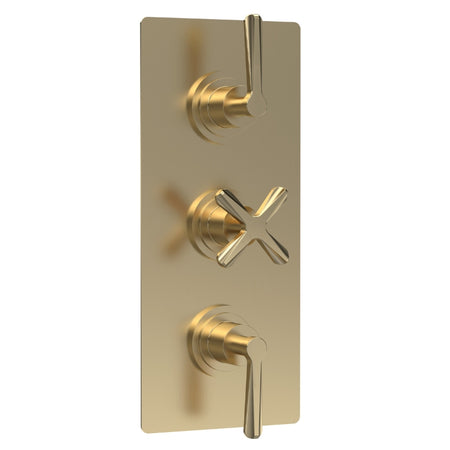

Nuie Aztec Twin Rectangle Thermostatic Concealed Shower Valve with Diverter (3 colours, 2 styles)
Nuie Aztec Twin Rectangle Thermostatic Concealed Shower Valve with Diverter (3 colours, 2 styles)
Regular price
£322.86
inc. VAT
Regular price
-53%
£680.40
Sale price
£322.86
inc. VAT
Couldn't load pickup availability
100% Secure & Encrypted Payments
Direct Bank Transfers available for orders over £500.
Finance Options with PayPal & Klarna
Need Any Help? Speak to one of our Sales team between 9am & 5pm - seven days a week for expert advice.
Experience the ultimate in modern, efficient showering with the Nuie Aztec Twin Thermostatic Concealed Shower Valve with Diverter. Available in 3 stunning colours and 2 versatile styles to suit any bathroom aesthetic. Its sleek design can be installed vertically or horizontally for maximum flexibility. With accurate flow control and thermal protection, you can enjoy a safe and consistent shower even if water pressure fluctuates. The highly resistant cartridge delivers excellent flow rates and minimal maintenance, while full thermal protection prevents scalding. Upgrade your shower experience today!
Specifications
| Range: |
Aztec
|

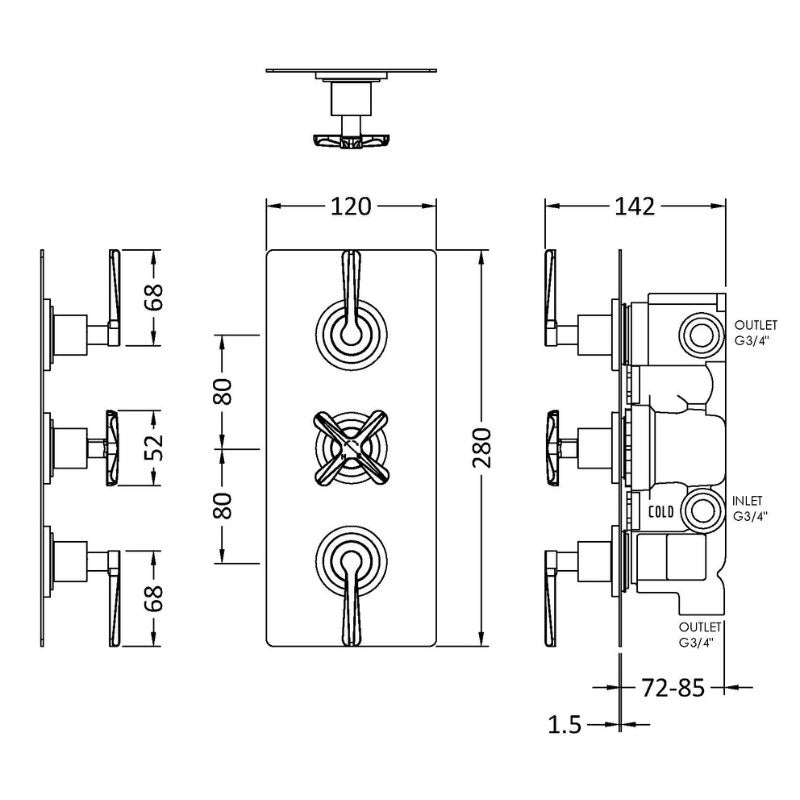

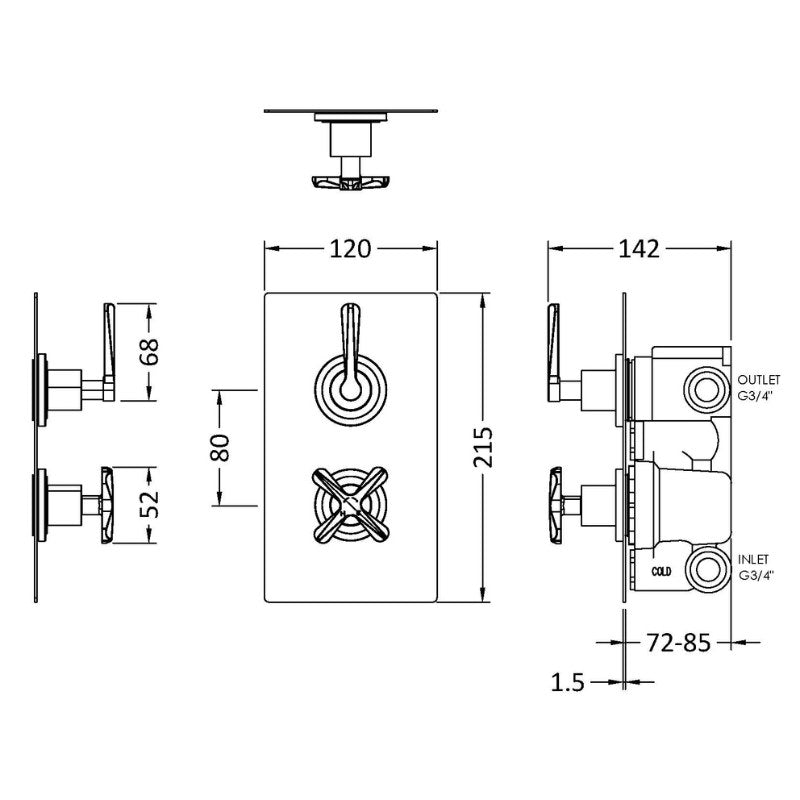

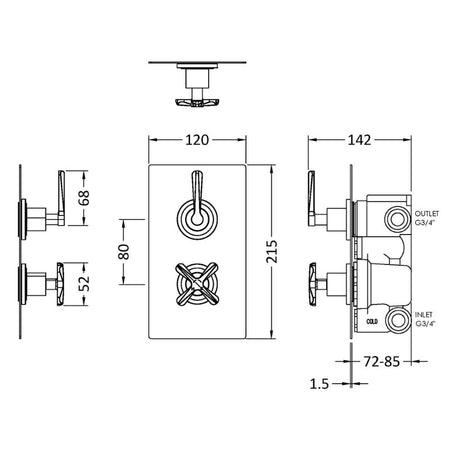

| Depth (mm): | 136 (3 outlets) / 138 (2 outlets) |
| Height (mm): | 215 (2 outlets) / 280 (3 outlets) |
| Width (mm): | 120 |
| Mount Type: |
Recessed/Wall |
| Valve/Cartridge Type: |
1/4 Turn |
| Flow Rate at 0.5 Bar (L/min): |
13 |
| Flow Rate at 1 Bar (L/min): |
17 |
| Flow Rate at 2 Bar (L/min): |
24 |
| Flow Rate at 3 Bar (L/min): |
27 |
| Minimum Operating Pressure (Bar): |
0.5 |
| TMV3 Approved: |
No |
| TMV2 Approved: |
No |
| WRAS Approved: | Yes |
| Guarantee: | 3 Years / 5 years for Chrome Only |
To view the Technical Datasheet for this product, click the links below:
2 Outlets: Brushed Brass | Chrome | Matt Black
3 Outlets: Brushed Brass | Chrome | Matt Black
To view the Technical Fitting Instructions for this product, click HERE.
- Minimalist sleek design
- Can be fitted vertically or horizontally
- Accurate flow control
- Thermostatic control to +/- 2 to 3 °C even if the water pressure fluctuates
- Full thermal protection to prevent scalding in the event of hot or cold water shut off
- In the event of hot or cold water failure the valve will shut down as per the relevant standard
- The unique cartridge is highly resistant to calcium build up - even in hard water areas
- Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
- Excellent flow rates - even at low pressure
- The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
- Simply remove the cartridge turn 180° and replace
- Manufactured from high quality brass & ABS
