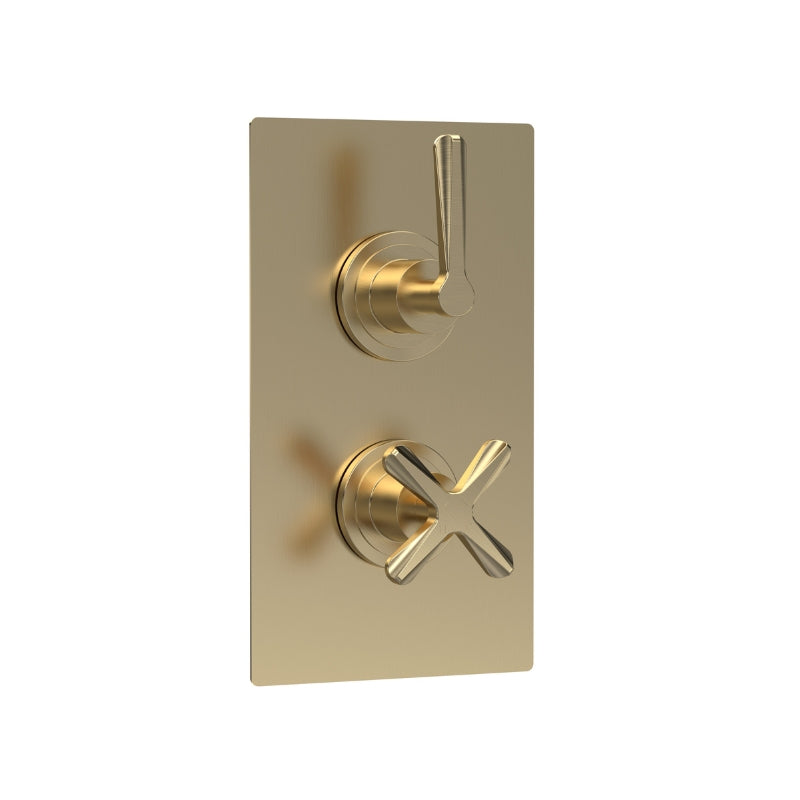

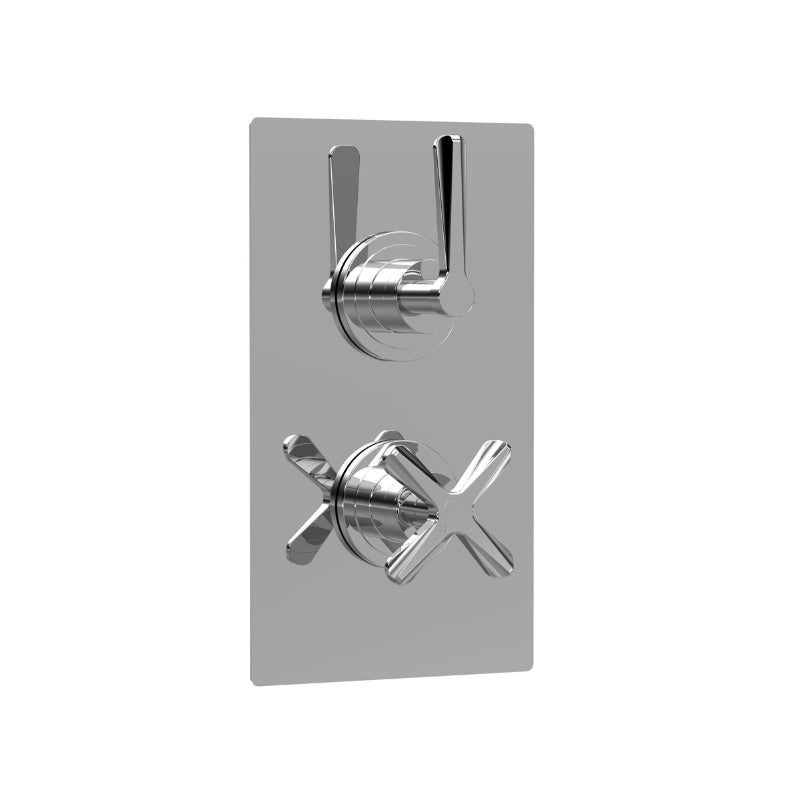

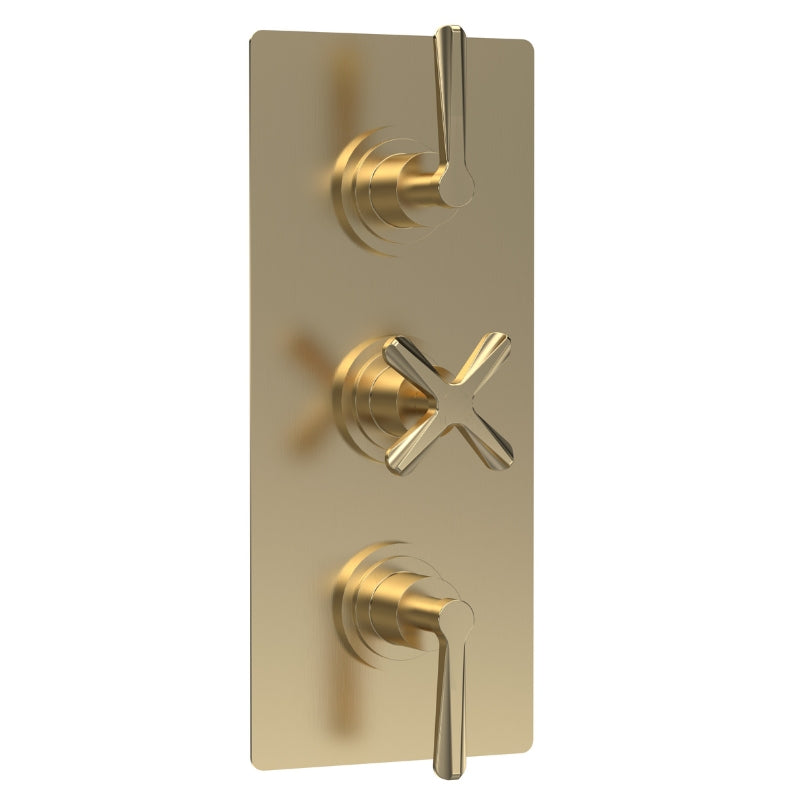

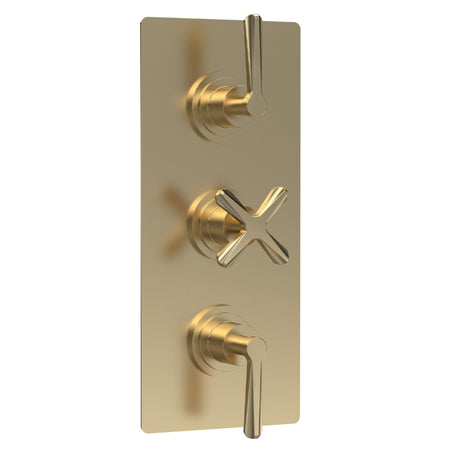

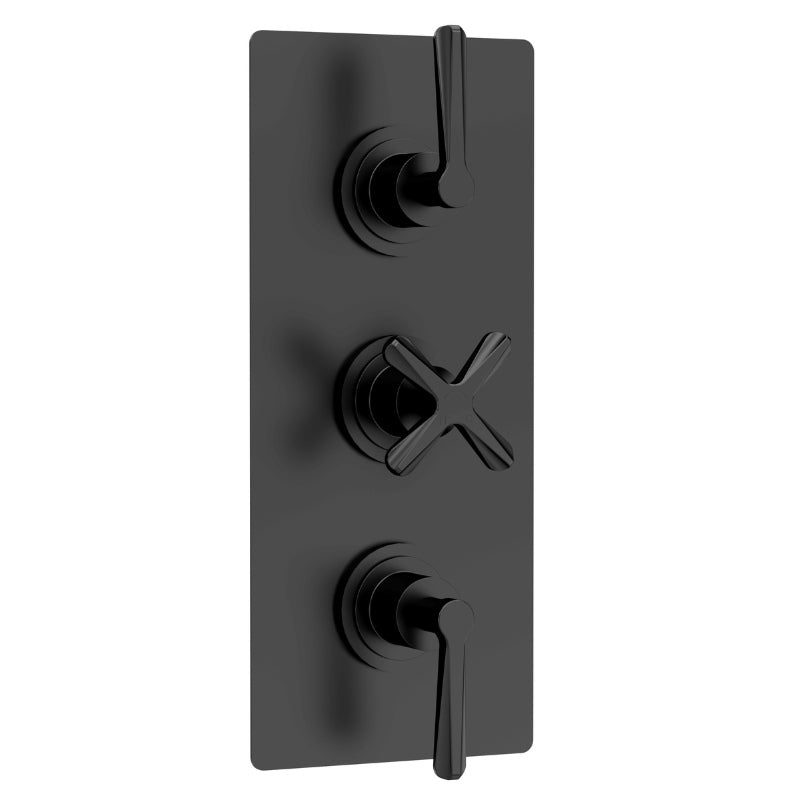

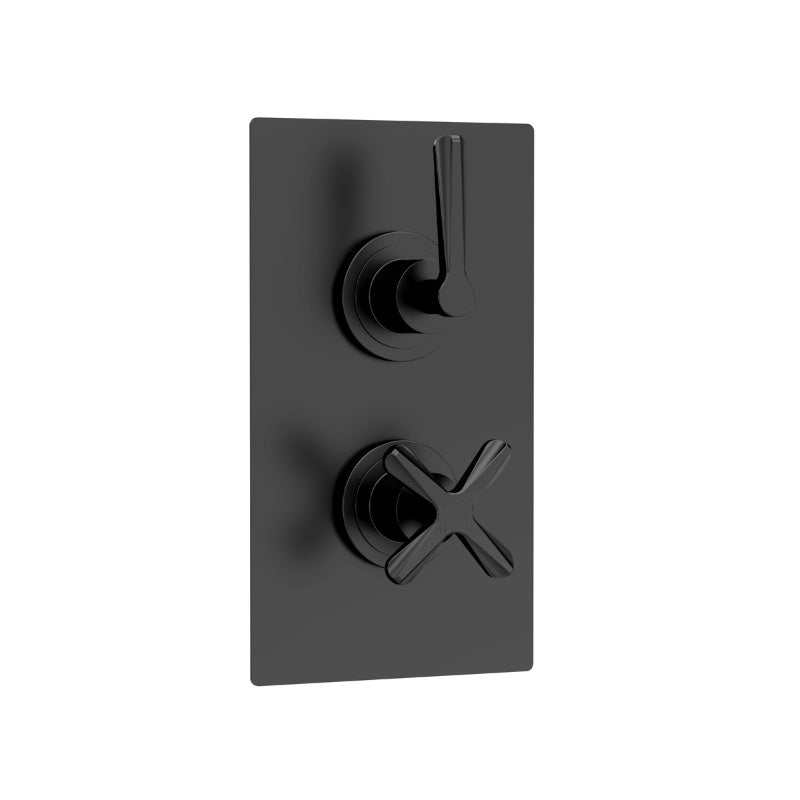

Nuie Aztec Twin Thermostatic Concealed Shower Valve (3 colours, 2 styles)
Couldn't load pickup availability
Direct Bank Transfers available for orders over £500.
Finance Options with PayPal & Klarna
Need Any Help? Speak to one of our Sales team between 9am & 5pm - seven days a week for expert advice.

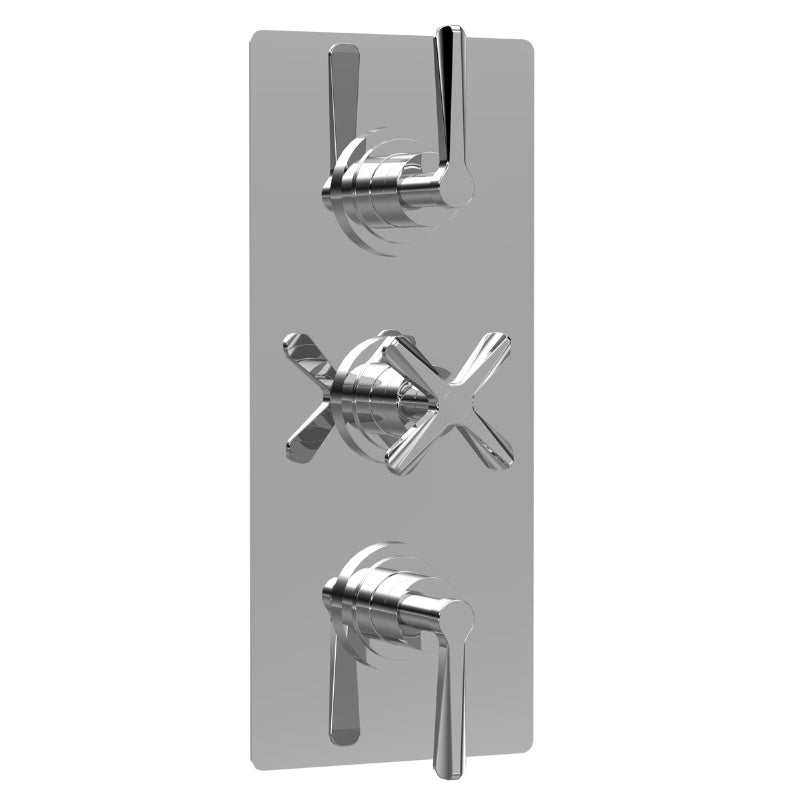

Revamp your shower experience with the Nuie Aztec Twin Thermostatic Concealed Shower Valve, now available in 3 stunning colours and 2 versatile styles! Its minimalist design lends a sleek and modern touch to any bathroom. Enjoy accurate flow control and thermal protection, even with fluctuating water pressure. And don't worry about calcium build up, our unique cartridge is highly resistant. Suitable for all systems, with excellent flow rates even at low pressure. Choose from Brushed Brass, Chrome, or Matt Black to match your bathroom aesthetic. Upgrade now and transform your showers!
Specifications
| Range: |
Aztec
|

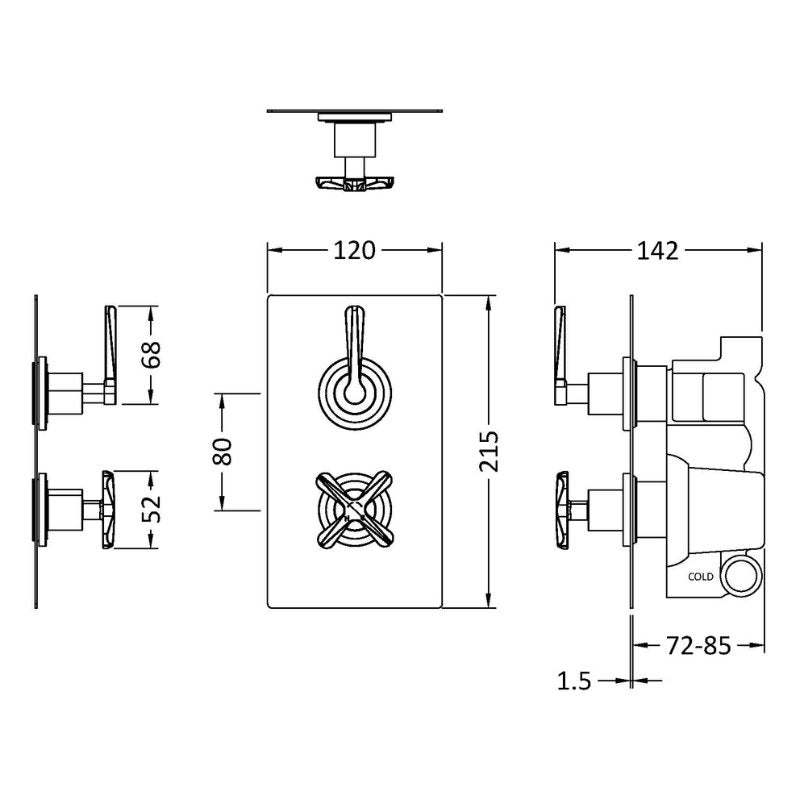

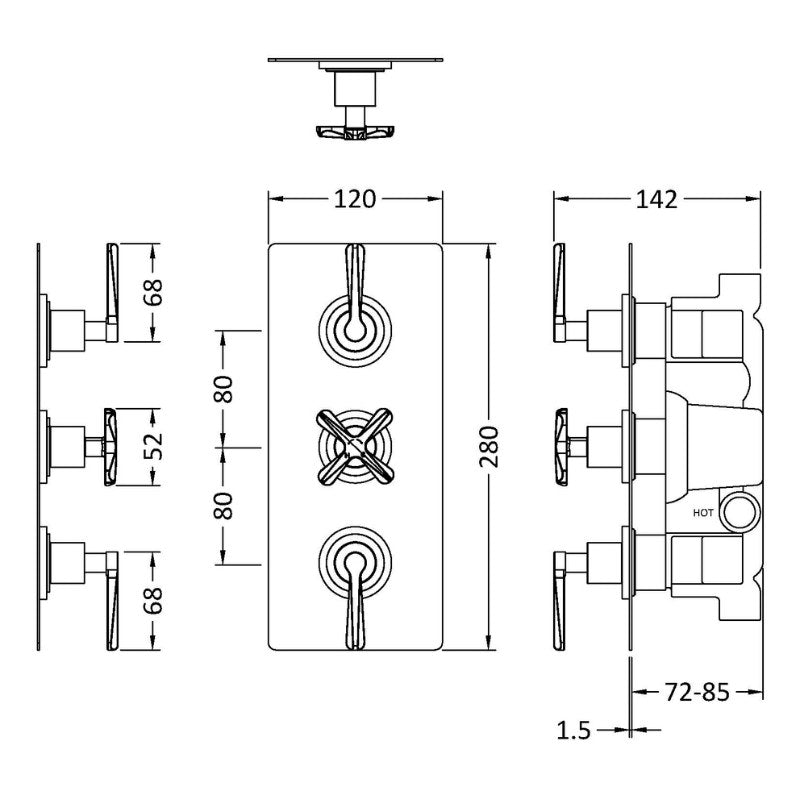

| Depth (mm): | 136 (2 outlets) / 138 (1 outlet) |
| Height (mm): | 215 (1 outlet) / 280 (2 outlets) |
| Width (mm): | 120 |
| Mount Type: |
Recessed/Wall |
| Valve/Cartridge Type: |
1/4 Turn |
| Flow Rate at 0.1 Bar (L/min): |
5.5 |
| Flow Rate at 0.5 Bar (L/min): |
14 |
| Flow Rate at 1 Bar (L/min): |
20 |
| Flow Rate at 2 Bar (L/min): |
29 |
| Flow Rate at 3 Bar (L/min): |
44 |
| Minimum Operating Pressure (Bar): |
0.1 |
| TMV3 Approved: |
No |
| TMV2 Approved: |
No |
| WRAS Approved: | 2204707 |
| Guarantee: | 3 Years / 5 years for Chrome Only |
To view the Technical Datasheet for this product, click the links below:
1 Outlet: Brushed Brass | Chrome | Matt Black
2 Outlets: Brushed Brass | Chrome | Matt Black
To view the Technical Fitting Instructions for this product, click HERE.
- Minimalist sleek design
- Can be fitted vertically or horizontally
- Accurate flow control
- Thermostatic control to +/- 2 to 3 °C even if the water pressure fluctuates
- In the event of hot or cold water failure, the valve will shut down the water supply providing full thermal protection and prevents scalding
- The unique cartridge is highly resistant to calcium build up - even in hard water areas
- Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
- Excellent flow rates - even at low pressure
- The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
- Simply remove the cartridge turn 180° and replace
- Manufactured from high quality brass & ABS
