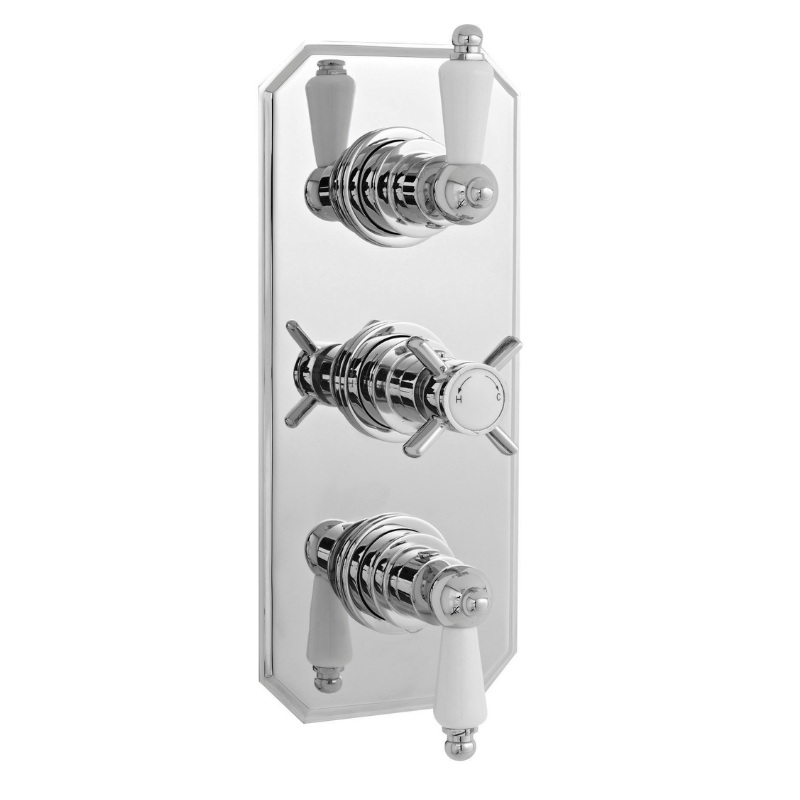

Nuie Edwardian Triple Thermostatic Shower Valve (1 size, Chrome)
Couldn't load pickup availability
Direct Bank Transfers available for orders over £500.
Finance Options with PayPal & Klarna
Need Any Help? Speak to one of our Sales team between 9am & 5pm - seven days a week for expert advice.
The Nuie Edwardian Triple Thermostatic Shower Valve combines classic design with advanced functionality. It offers precise thermostatic control within ±2 to 3 °C, maintaining consistent temperature despite water pressure changes. The valve shuts off water supply to prevent scalding if hot or cold water fails. Its unique cartridge resists calcium buildup, ideal for hard water areas, and is fully reversible to simplify installation. Compatible with all systems—including gravity-fed, pumped, unvented high pressure, and combi boilers—this valve ensures excellent flow rates even under low pressure, adaptable to vertical or horizontal fitting.
Specifications
| Style: |
Traditional
|

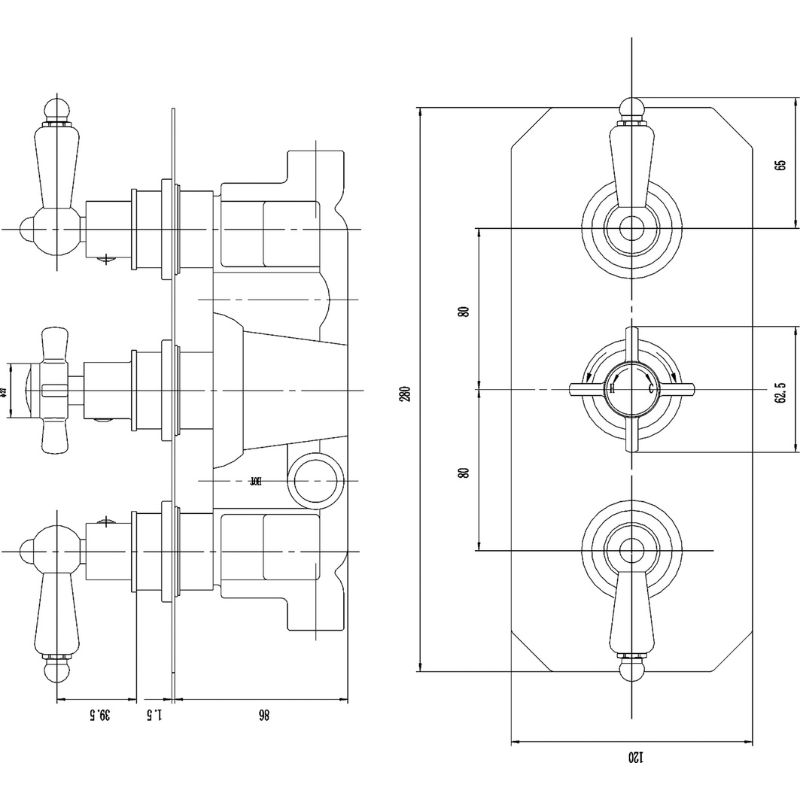

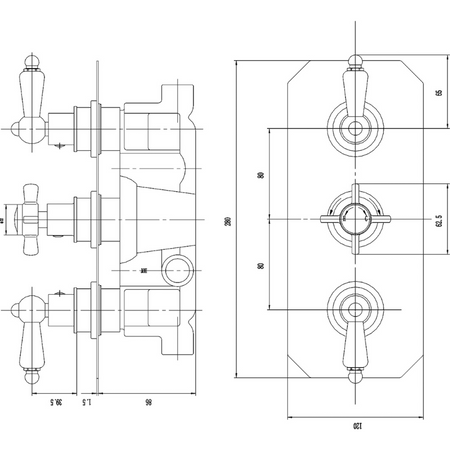

| Depth (mm): | 124 |
| Height (mm): | 120 |
| Width (mm): | 280 |
| Flow Rate at 0.1 Bar (L/min): | 5.5000 |
| Flow Rate at 0.5 Bar (L/min): | 14.0000 |
| Flow Rate at 1 Bar (L/min): | 20.0000 |
| Flow Rate at 2 Bar (L/min): | 29.0000 |
| Flow Rate at 3 Bar (L/min): | 44.0000 |
| Valve/Cartridge Type: |
1/4 Turn |
| Minimum Operating Pressure (Bar): |
0.1 |
| TMV3 Approved: |
No |
| TMV2 Approved: |
No |
| Material: | Brass Abs |
| Country of Manufacture: | gb |
| WRAS Approved: | Yes |
| Mount Type: |
Recessed/Wall |
| Handle Type: | Crosshead/Lever |
| Guarantee: | 5 Years |
To view the Technical Fittings instructions for this product, click HERE
