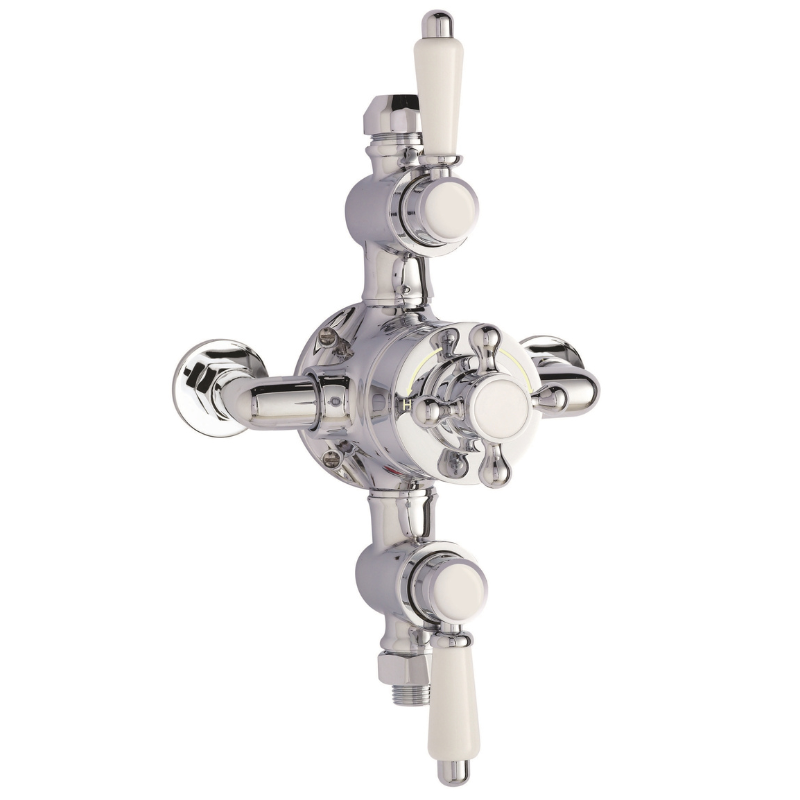

Nuie Victorian Triple Thermostatic Shower Valve (1 size, Chrome)
Couldn't load pickup availability
Direct Bank Transfers available for orders over £500.
Finance Options with PayPal & Klarna
Need Any Help? Speak to one of our Sales team between 9am & 5pm - seven days a week for expert advice.
Bring classic Victorian elegance to your bathroom with the Nuie Victorian Triple Thermostatic Shower Valve, finished in chrome. Designed for versatile installation, it can be mounted vertically or horizontally. This shower valve offers precise flow and thermostatic control within ±2 to 3 °C, maintaining consistent temperature despite fluctuating water pressure. For safety, the valve automatically shuts off water supply if either hot or cold water fails, preventing scalding. Its unique cartridge resists calcium build-up, ideal for hard water areas, and is reversible to accommodate reversed hot and cold supplies without re-plumbing. Compatible with all plumbing systems, it delivers excellent flow rates even under low pressure.
Specifications
| Style: |
Traditional
|

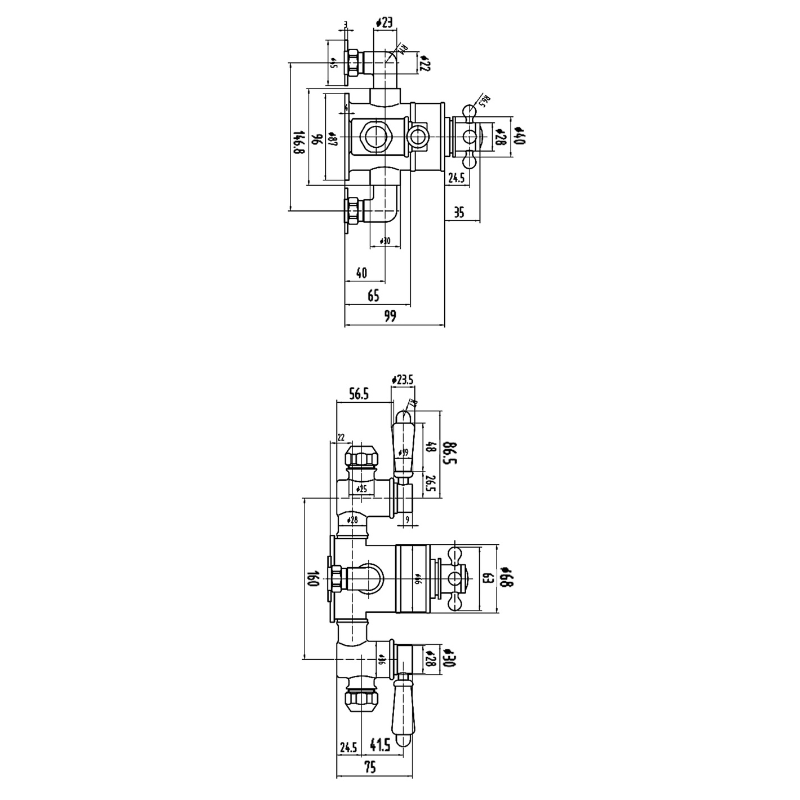

| Depth (mm): | 134 |
| Height (mm): | 179 |
| Width (mm): | 333 |
| Flow Rate at 0.1 Bar (L/min): | 4.5000 |
| Flow Rate at 0.5 Bar (L/min): | 13.0000 |
| Flow Rate at 1 Bar (L/min): | 18.5000 |
| Flow Rate at 2 Bar (L/min): | 26.0000 |
| Flow Rate at 3 Bar (L/min): | 33.0000 |
| Pipe Centres: | 146.8 |
| Valve/Cartridge Type: |
1/4 Turn |
| Minimum Operating Pressure (Bar): |
0.1 |
| TMV3 Approved: |
No |
| TMV2 Approved: |
No |
| Material: | Brass |
| Country of Manufacture: | gb |
| WRAS Approved: | No |
| Mount Type: |
Surface/Wall |
| Handle Type: | Crosshead/Lever |
| Guarantee: | 5 Years |
To view the Technical Fittings instructions for this product, click HERE
