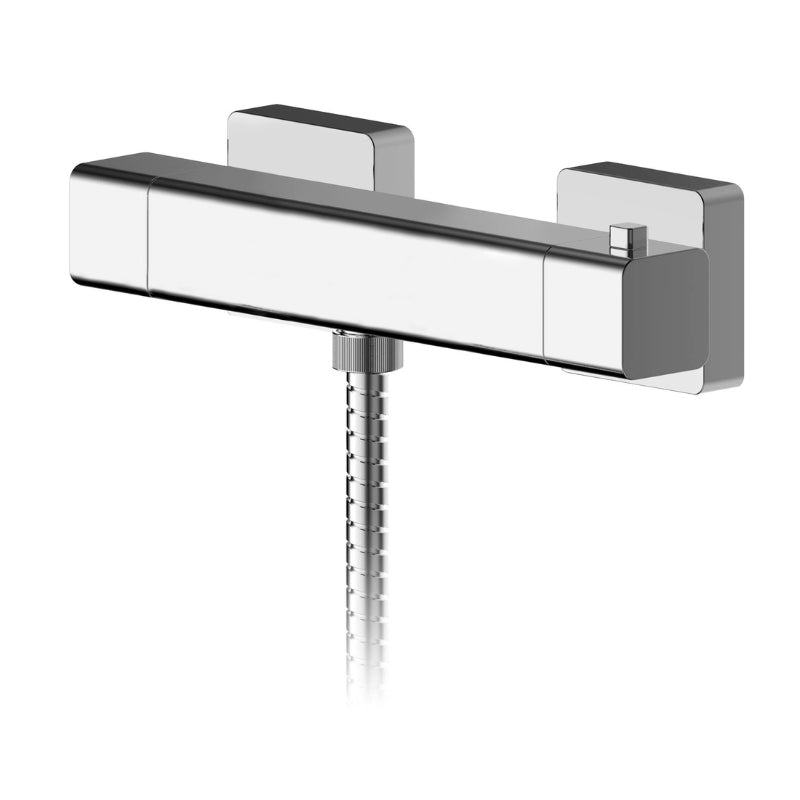

Nuie Windon Thermostatic Shower Bar Valve (1 size, Chrome)
Nuie Windon Thermostatic Shower Bar Valve (1 size, Chrome)
SKU:WIN503
Couldn't load pickup availability
Indulge in the ultimate shower experience with Nuie Windon Thermostatic Shower Bar Valve. This sleek and luxurious valve features precise thermostatic control, full thermal protection, and compatibility with unvented mains pressure systems and shower pumps. Made with high-quality brass and ABS, this valve ensures durability and functionality in a stunning chrome finish. Upgrade your shower game today.
Specifications
| Range: |
Sanford
|
| Depth (mm): | 65 |
| Height (mm): | 55 |
| Width (mm): | 261 |
| Valve/Cartridge Type: |
1/4 Turn |
| Flow Rate at 0.1 Bar (L/min): |
3.3 |
| Flow Rate 0.5Bar l/m: | 7.9 |
| Flow Rate 1Bar l/m: | 11.3 |
| Flow Rate 2Bar l/m: | 16.2 |
| Flow Rate 3Bar l/m: | 19.8 |
| TMV3 Approved: |
No |
| TMV2 Approved: |
No |
| Minimum Operating Pressure (Bar): |
0.2 |
| Mount Type: |
Wall Hung |
| WRAS Approved: | No |
| Guarantee: | 5 years |
To view the Technical Datasheet for this product, click HERE
To view the Technical Fittings instructions for this product, click HERE
- Thermostatically controlled
- Bottom outlet
- Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
- Full thermal protection to prevent scalding in the event of hot or cold water shut off
- In the event of hot or cold water failure the valve will shut down as per the relevant standard
- Suitable for unvented mains pressure systems
- Suitable for shower pumps
- Manufactured from high quality brass & ABS
