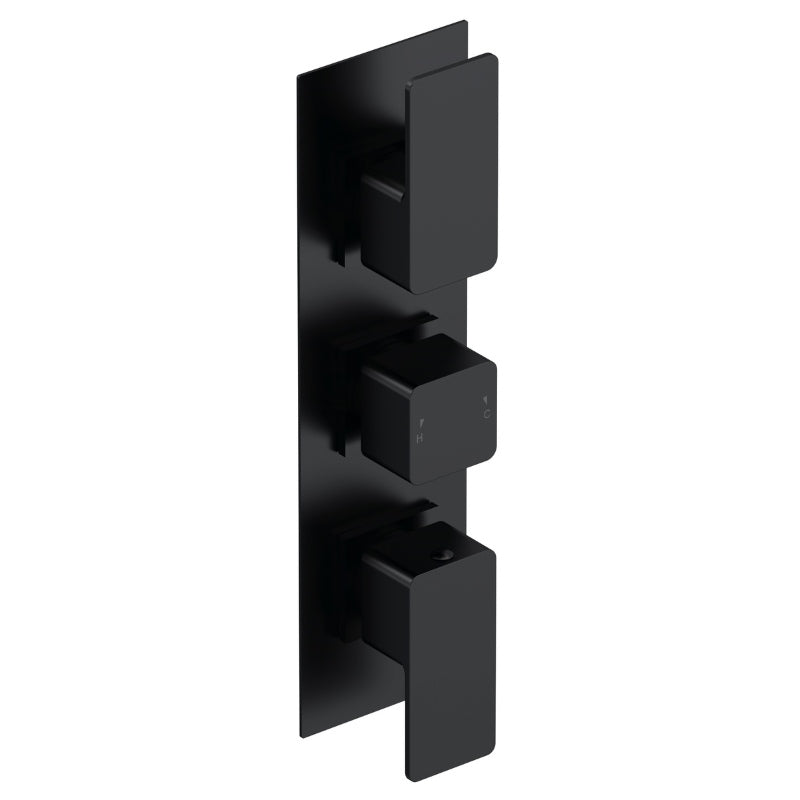

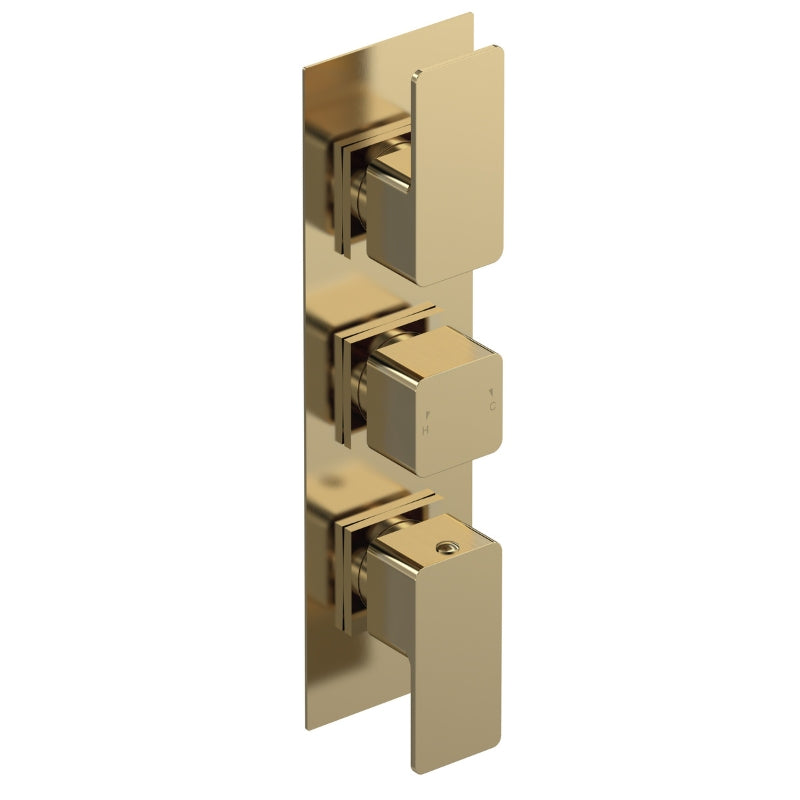

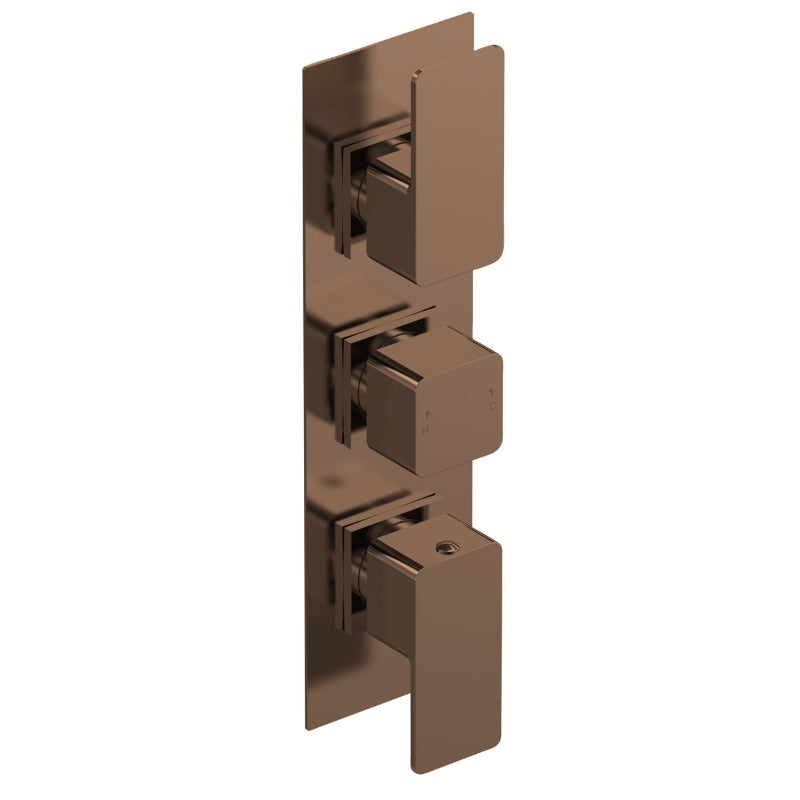

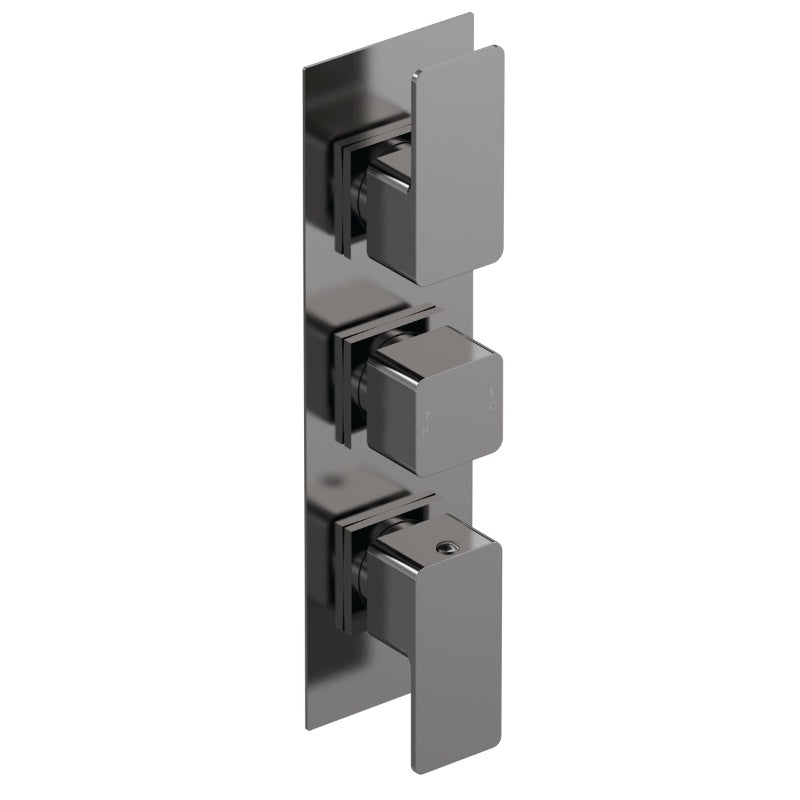

Nuie Windon Triple Thermostatic Shower Valve (1 size, 4 colours)
Nuie Windon Triple Thermostatic Shower Valve (1 size, 4 colours)
SKU:WIN8TR02
Couldn't load pickup availability
Experience ultimate luxury with the Nuie Windon Triple Thermostatic Shower Valve. Its sleek, brushed pewter finish adds a minimalist touch to any bathroom. With accurate flow control and thermal protection against scalding, this valve is perfect for all water systems. Enjoy excellent flow rates, even at low pressure.
Specifications
Range: |
Windon
|

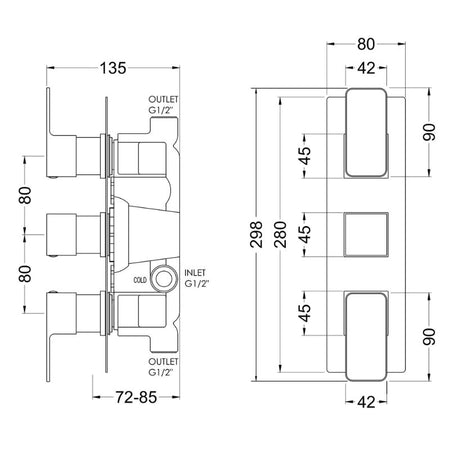

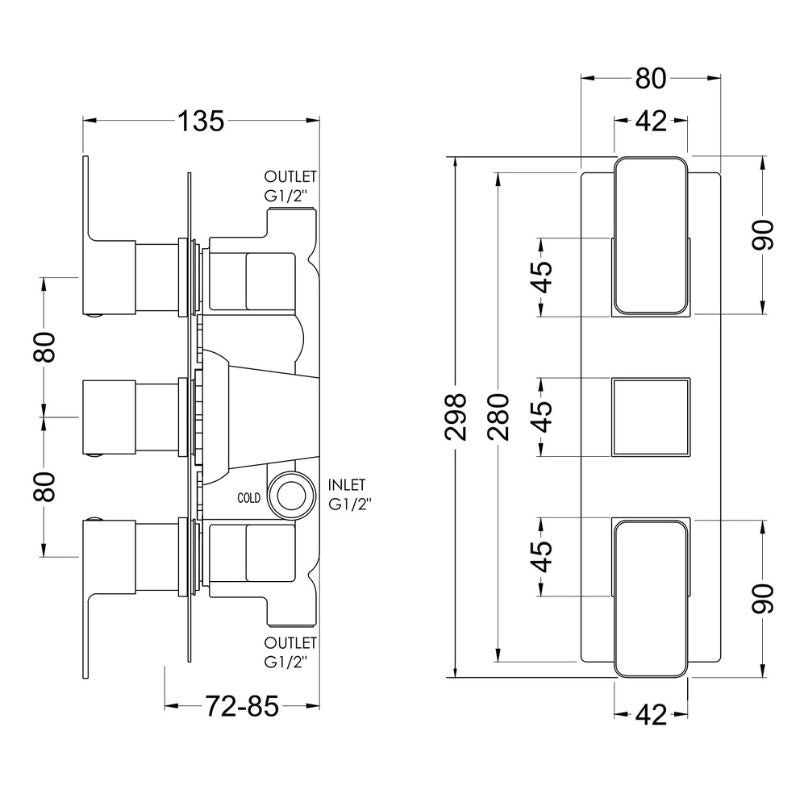

Depth (mm): | 50 |
Height (mm): | 280 |
Width (mm): | 80 |
Valve/Cartridge Type: |
1/4 Turn |
Flow Rate at 0.1 Bar (L/min): |
5.5 |
Flow Rate 0.5Bar l/m: | 14 |
Flow Rate 1Bar l/m: | 20 |
Flow Rate 2Bar l/m: | 29 |
Flow Rate 3Bar l/m: | 44 |
TMV3 Approved: |
No |
TMV2 Approved: |
No |
Minimum Operating Pressure (Bar): |
0.1 |
WRAS Approved: | 2204707 |
Mount Type: |
Recessed/Wall |
Guarantee: | 3 years |
To view the Technical Datasheet for this product, click HERE
To view the Technical Datasheet for this product, click HERE
To view the Technical Datasheet for this product, click HERE
To view the Technical Datasheet for this product, click HERE
To view the Technical Fittings instructions for this product, click HERE
- Minimalist sleek design.
- Can be fitted vertically or horizontally.
- Accurate flow control.
- Thermostatic control to +/- 2 degrees even if the water pressure fluctuates.
- Full thermal protection to prevent scalding in the event of hot or cold water shut off.
- In the event of hot or cold water failure the valve will shut down as per the relevant standard.
- The unique cartridge is highly resistant to calcium build up - even in hard water areas.
- Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers.
- Excellent flow rates - even at low pressure.
- The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing.
- Simply remove the cartridge turn 180° and replace.
- Manufactured from high quality brass & ABS.
