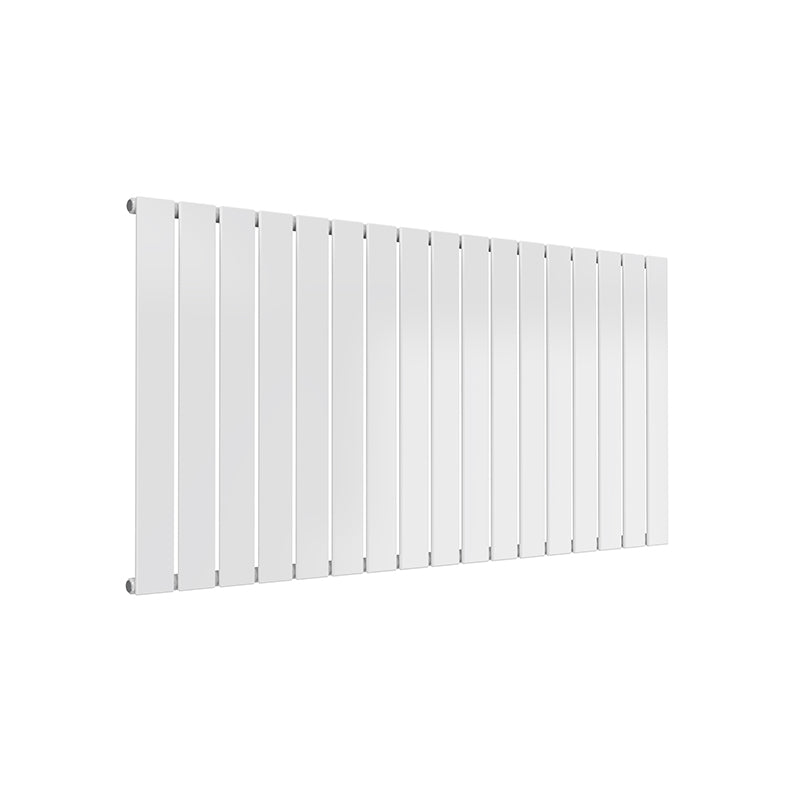

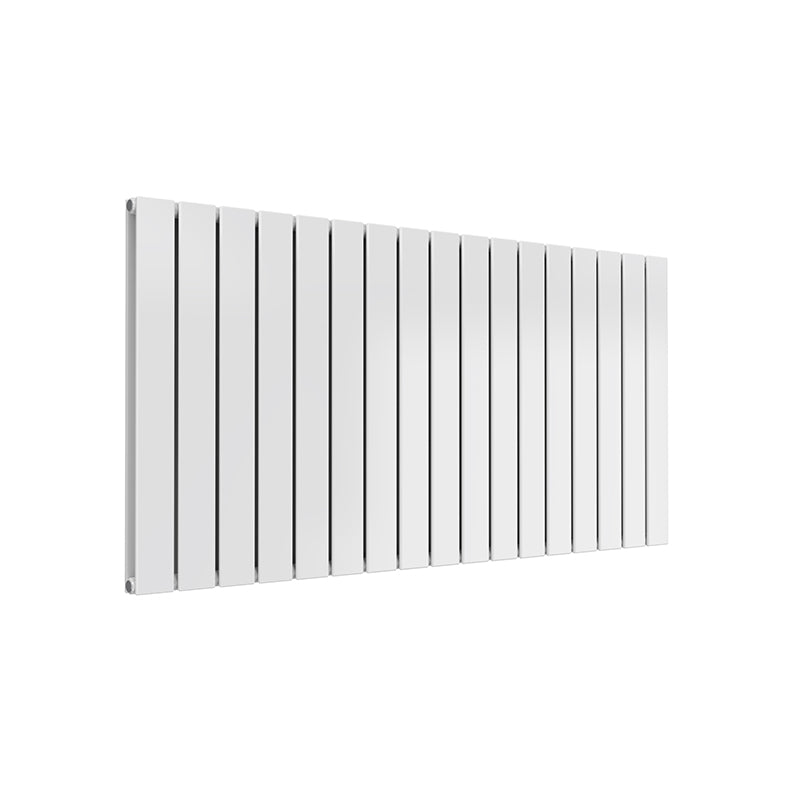

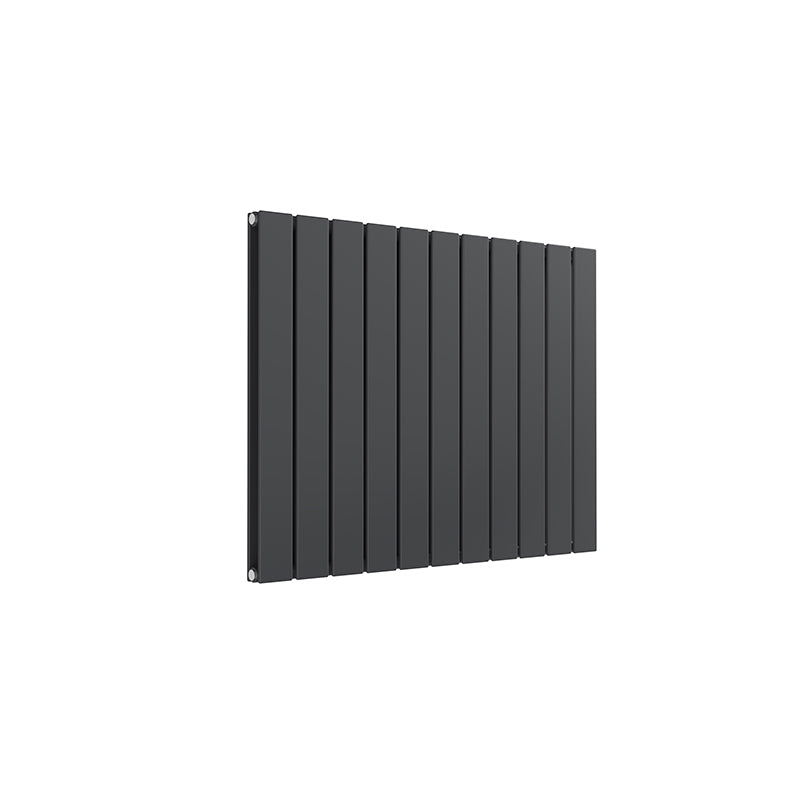

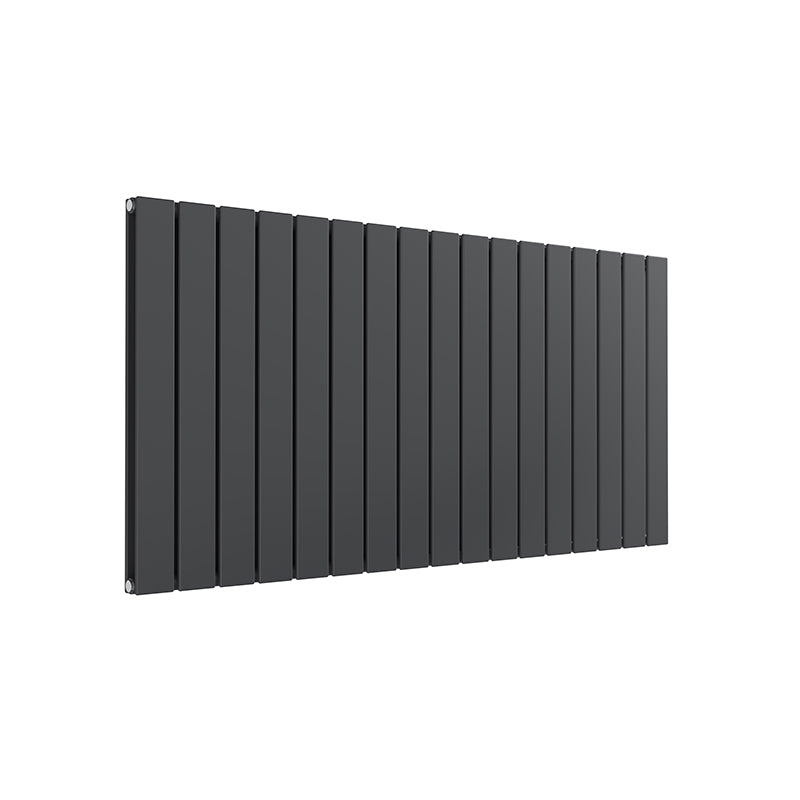

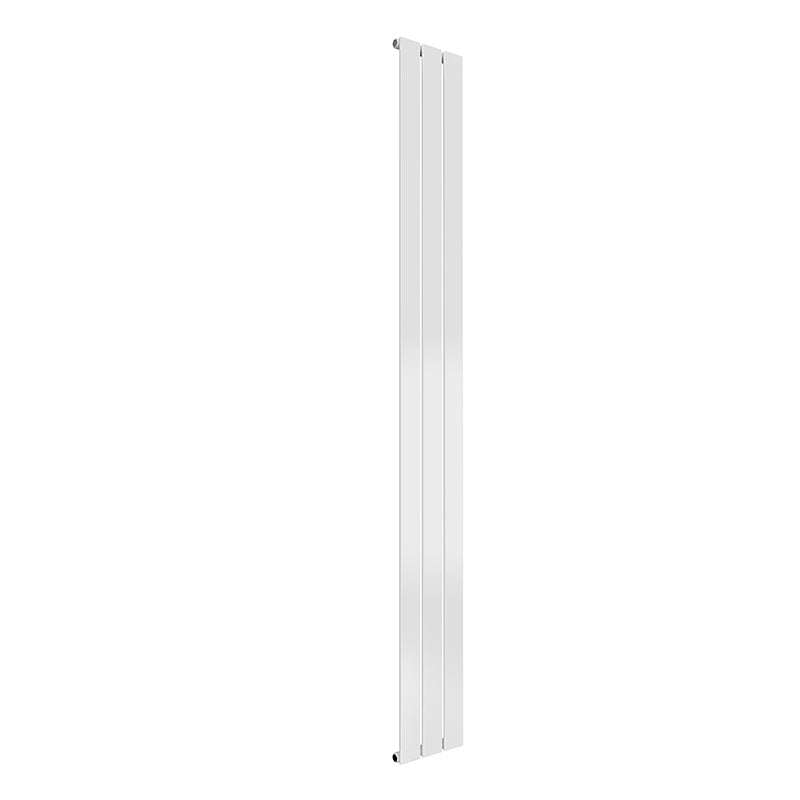

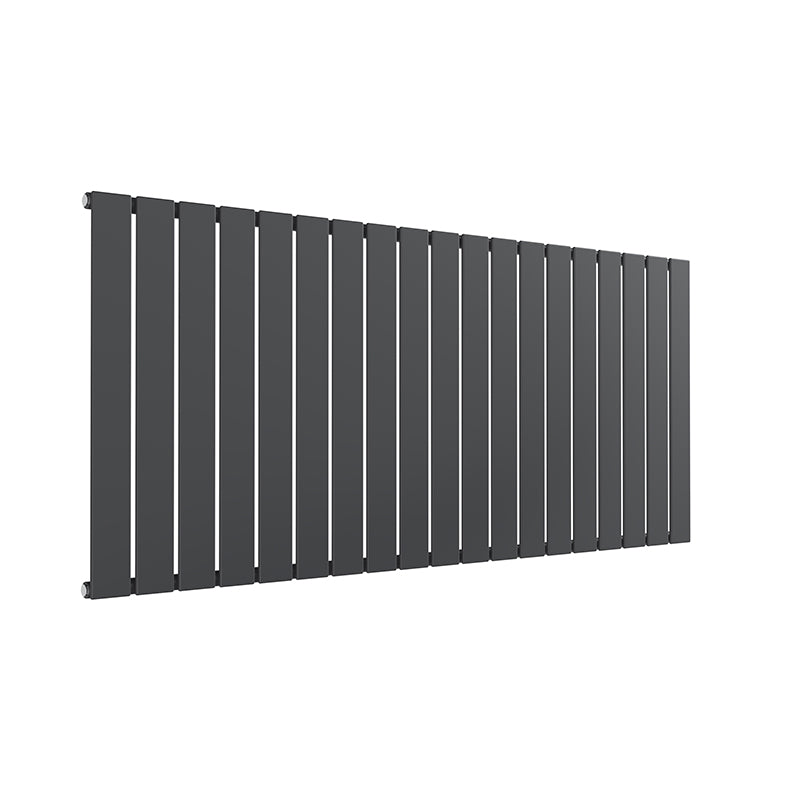

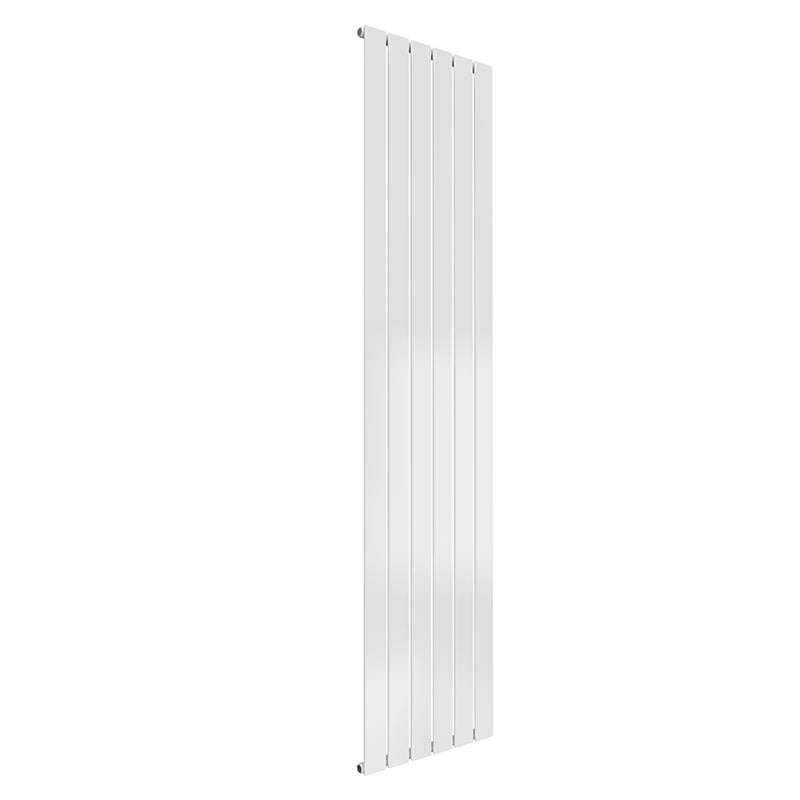

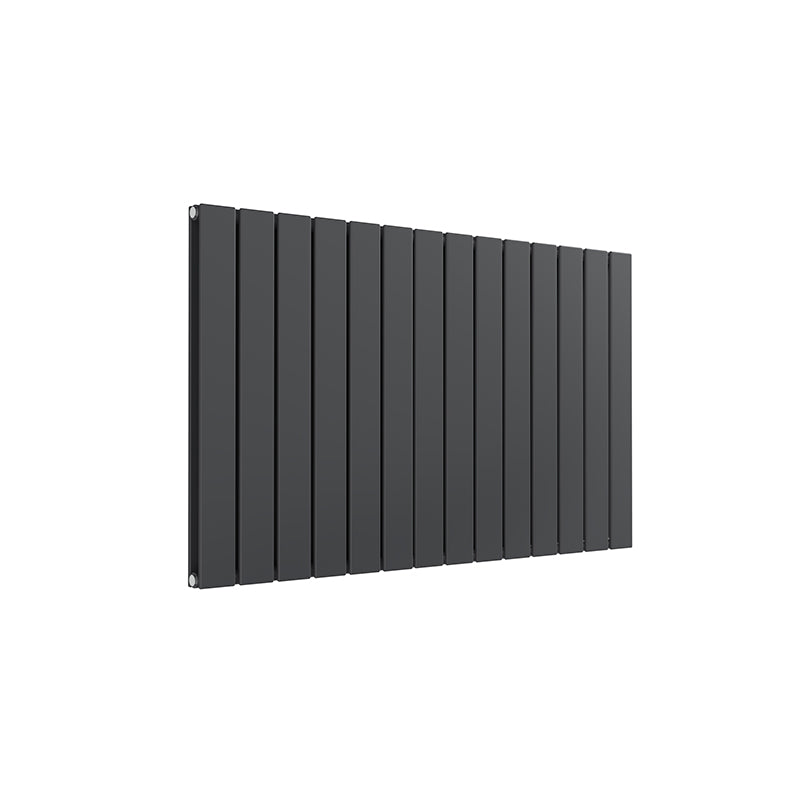

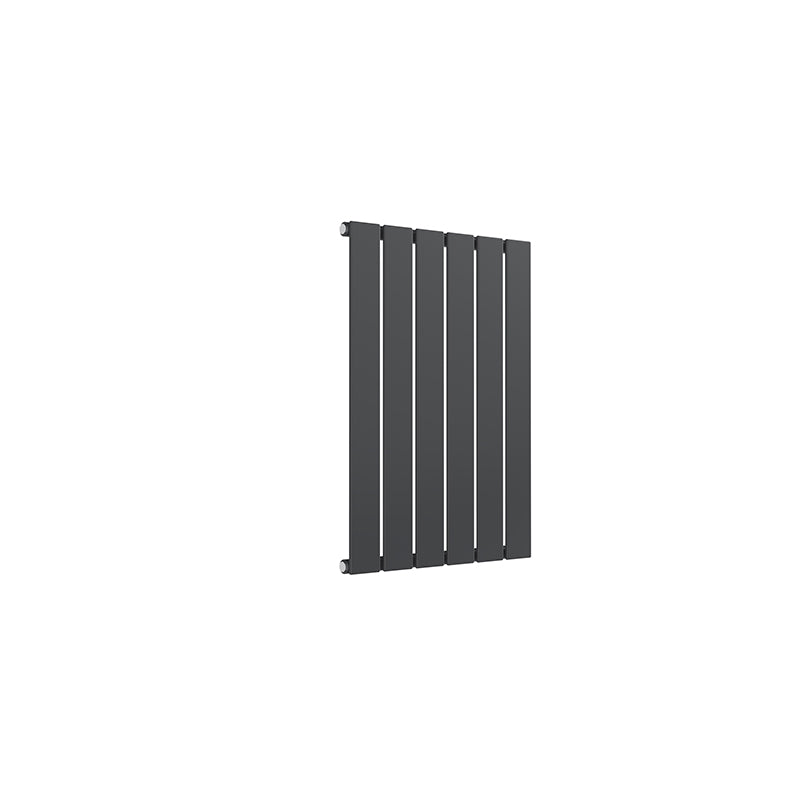

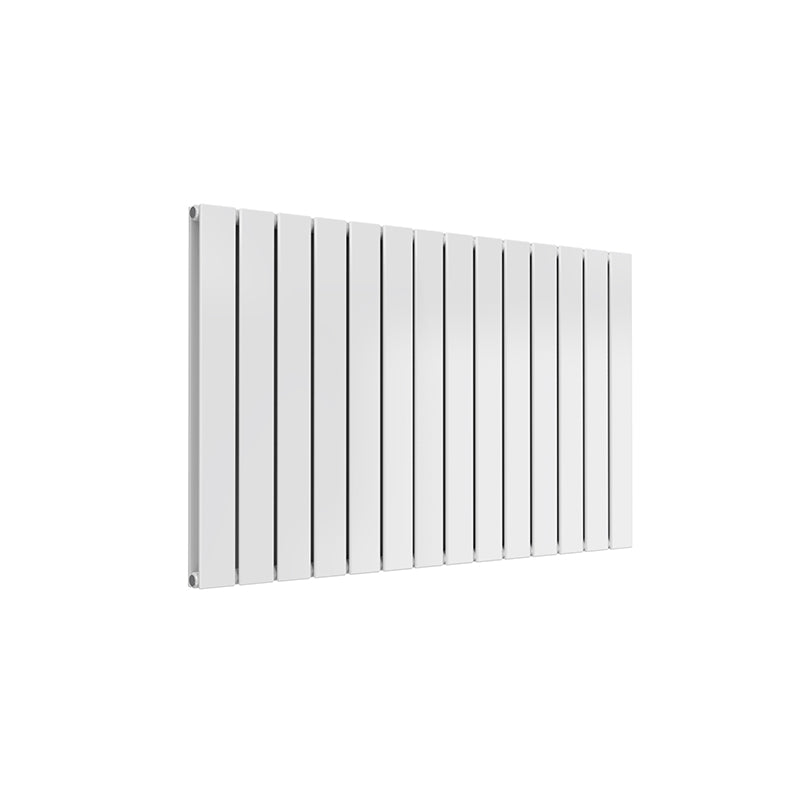

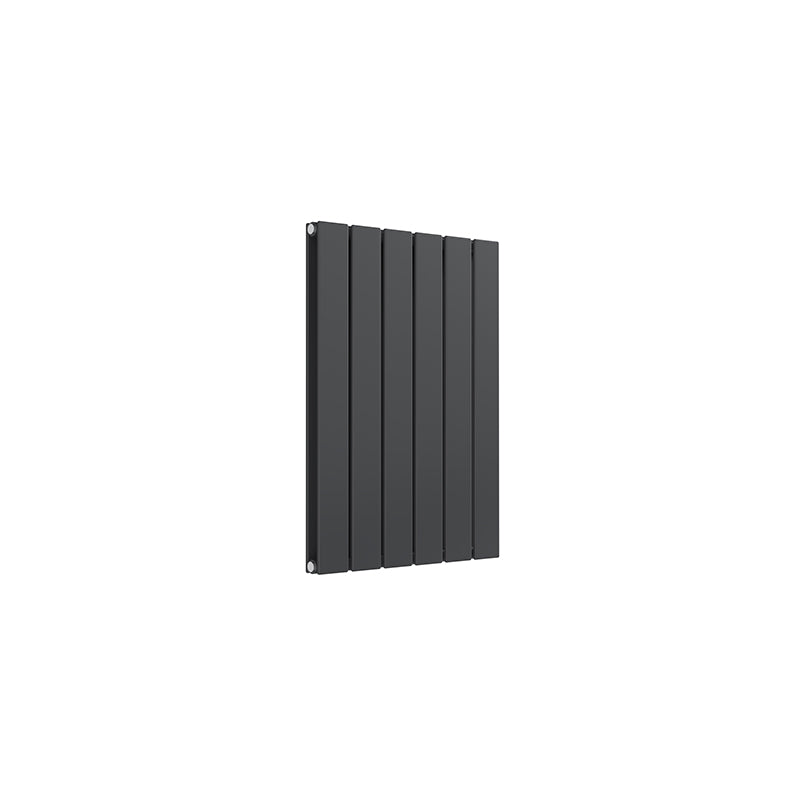

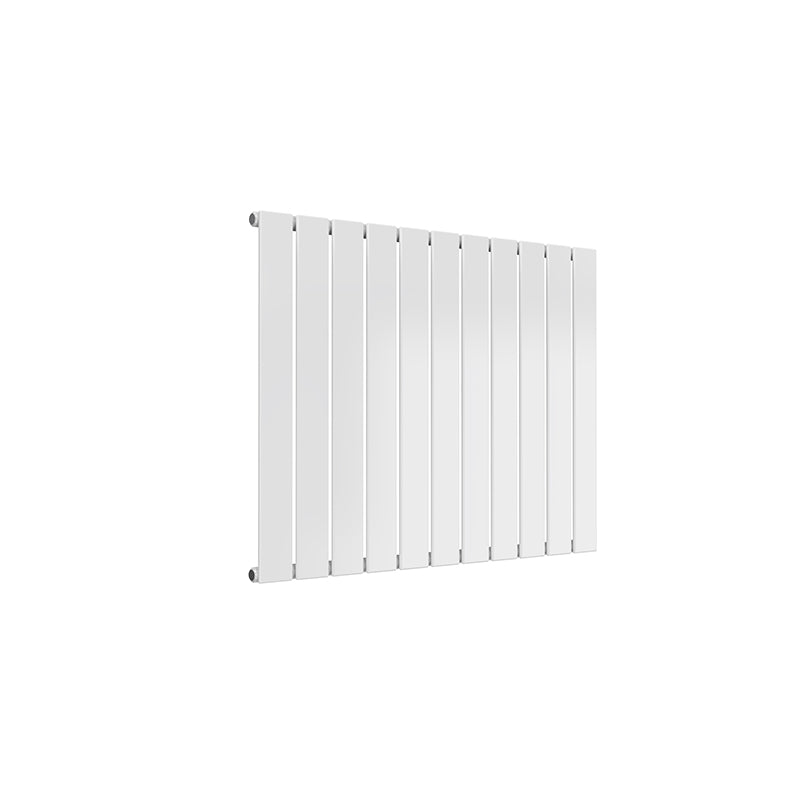

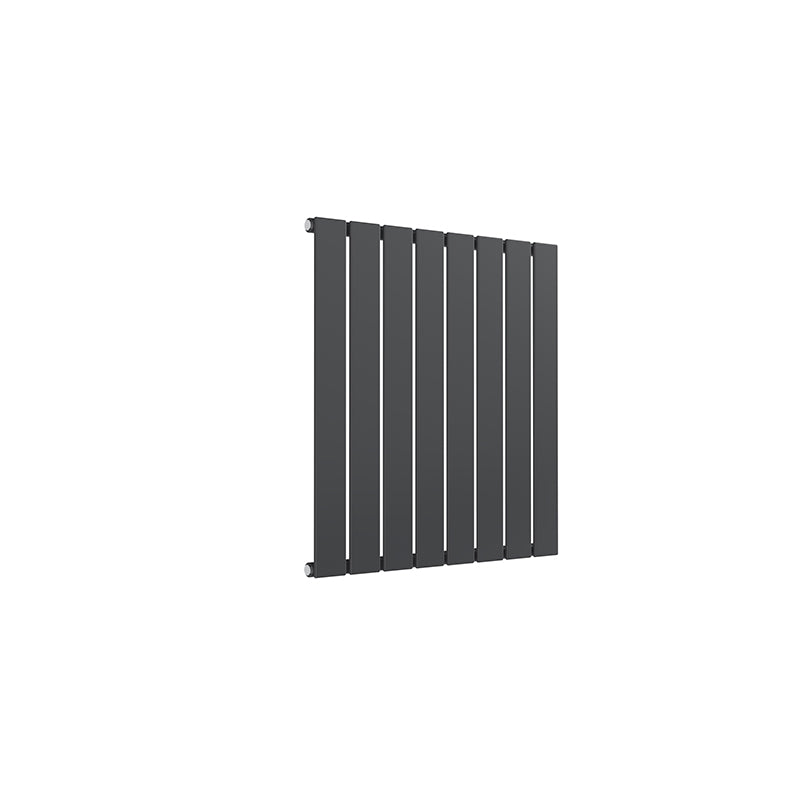

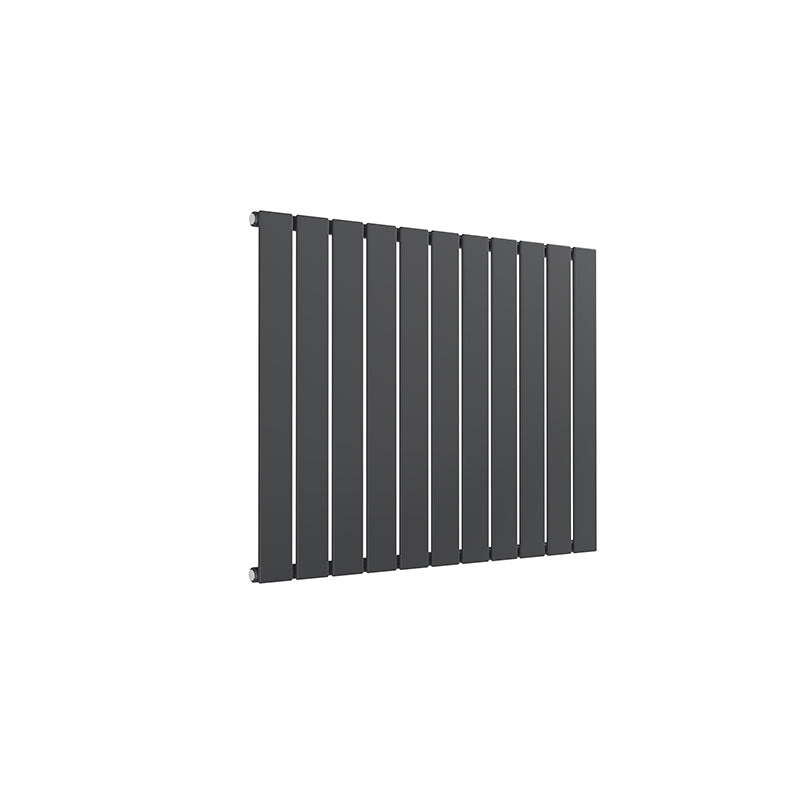

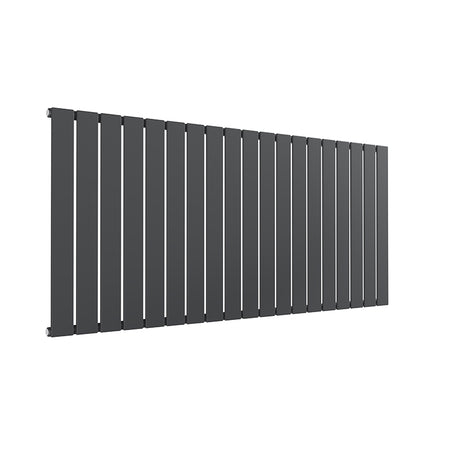

Reina Flat Designer Single or Double Panel Radiator (16 sizes, 2 colours)
Reina Flat Designer Single or Double Panel Radiator (16 sizes, 2 colours)
SKU:RND-FL163AD
Couldn't load pickup availability
Please use the following tabs to find out more information about this product....
Description
Unleash your adventurous side with the Reina Flat Designer Radiator. With 16 different sizes, single and double panel options, and 2 stunning colours, this radiator offers both style and functionality. Make a bold statement in any room and stay warm in style!
This Radiator is also available in any RAL colour, so please contact us for a quotation with the colour you are looking for.
Specifications
| Height (mm): | 600-1800 |
| Width (mm): | 218-1402 |
| Pipe Centres (mm): | 514-1402 |
| Wall to Pipe Centres (mm): | 39-64 |
| Wall Distance (mm): | 68-93 |
| Fuel Type: | Central Heating |

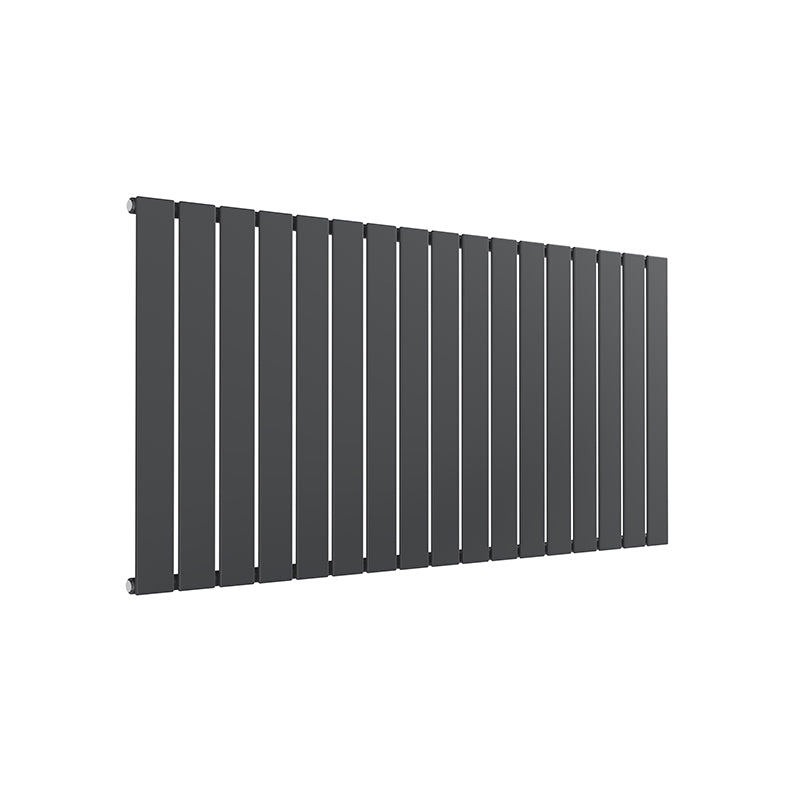

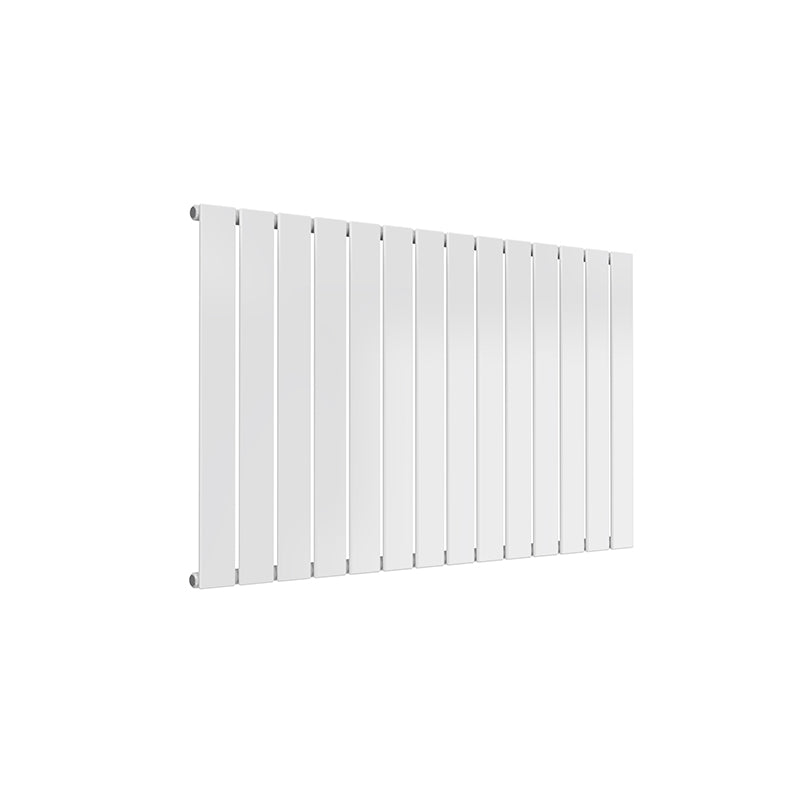

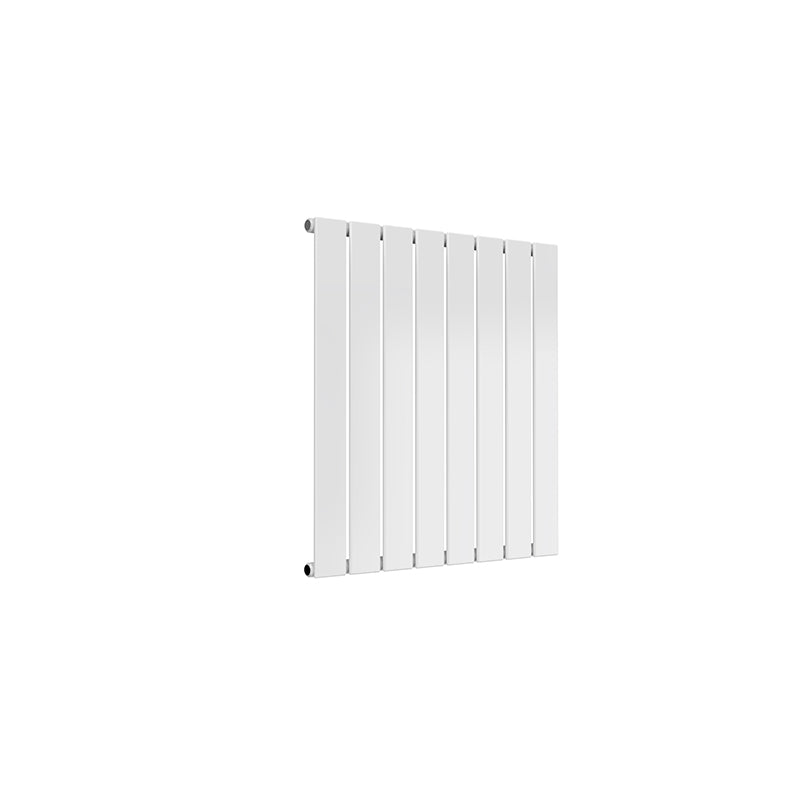

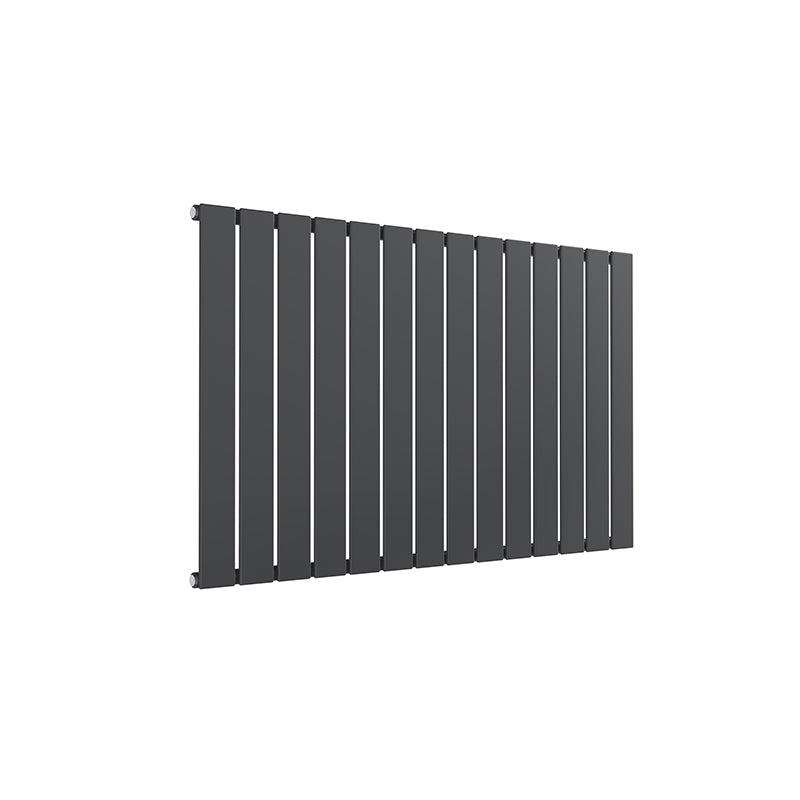

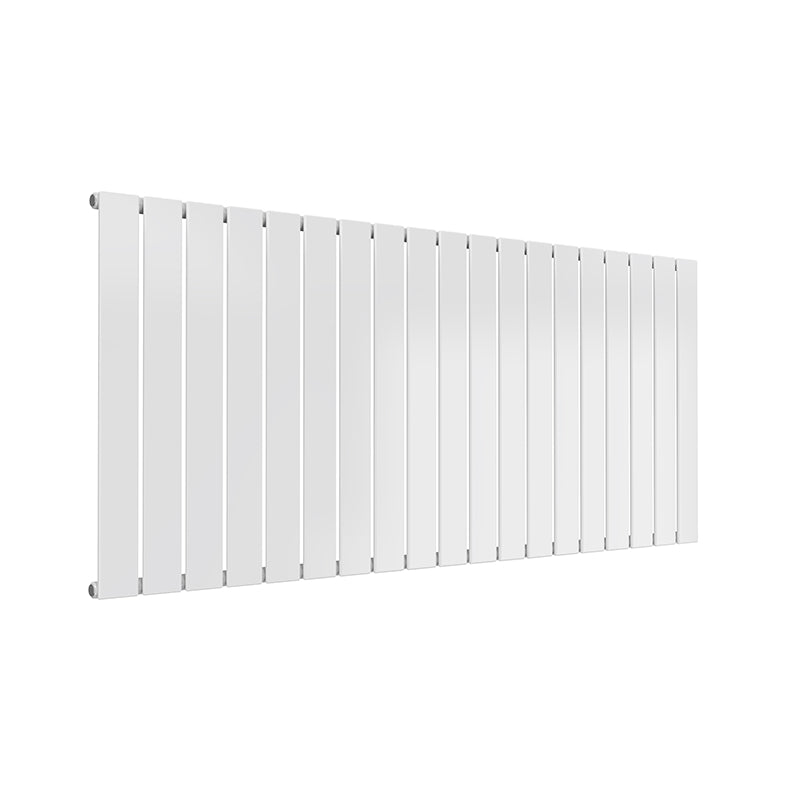

| Heat Outputs ΔT 70°C- BTU (Horizontal Single): | 440 x 600 = 1661 588 x 600 = 2214 810 x 600 = 3044 1032 x 600 = 3874 1254 x 600 = 4704 1402 x 600 = 5257 |

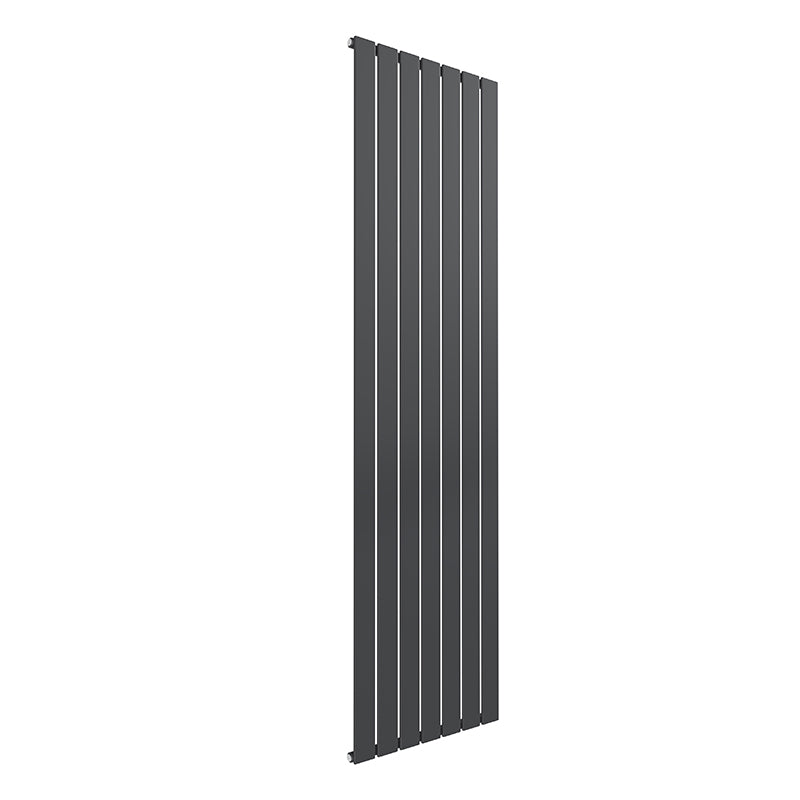

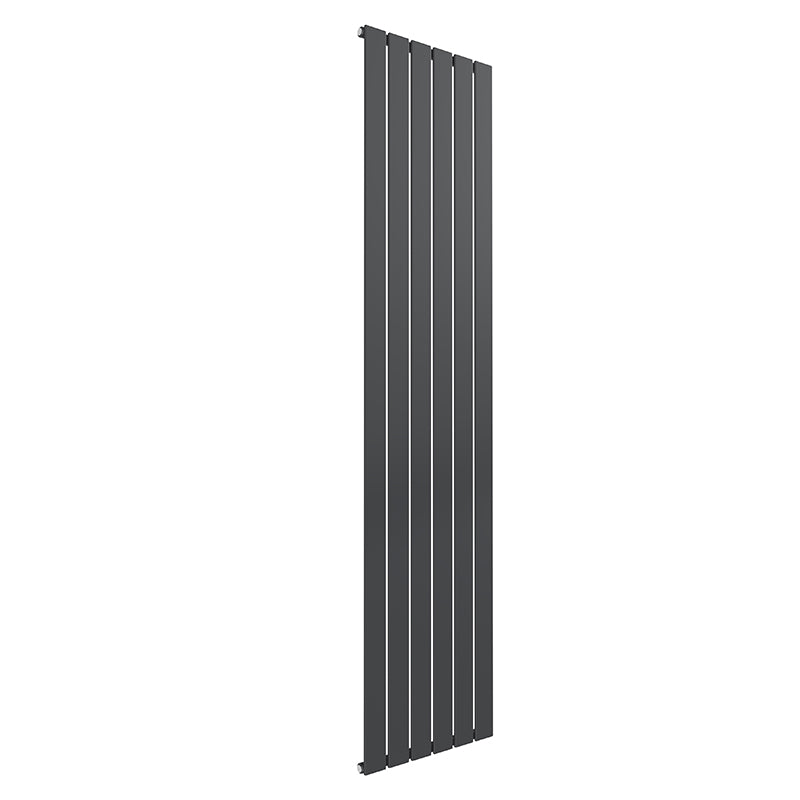

| Heat Outputs ΔT 70°C- BTU (Vertical Single): | 218 x 1600 = 2113 292 x 1600 = 2818 366 x 1600 = 3522 440 x 1600 = 4226 514 x 1600 = 4930 218 x 1800 = 2378 292 x 1800 = 3171 366 x 1800 = 3962 440 x 1800 = 4755 514 x 1800 = 5549 |

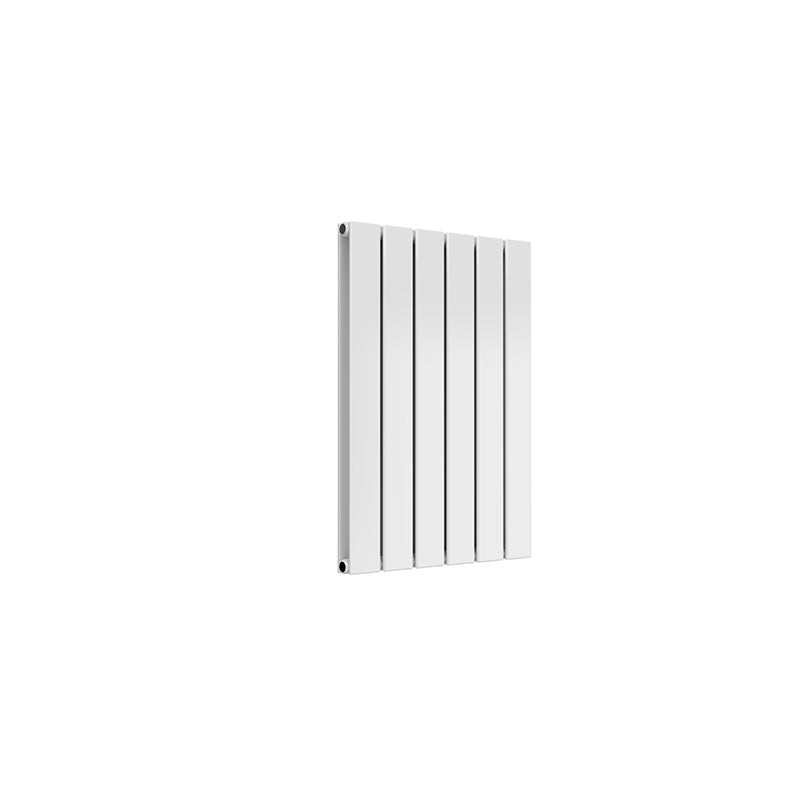

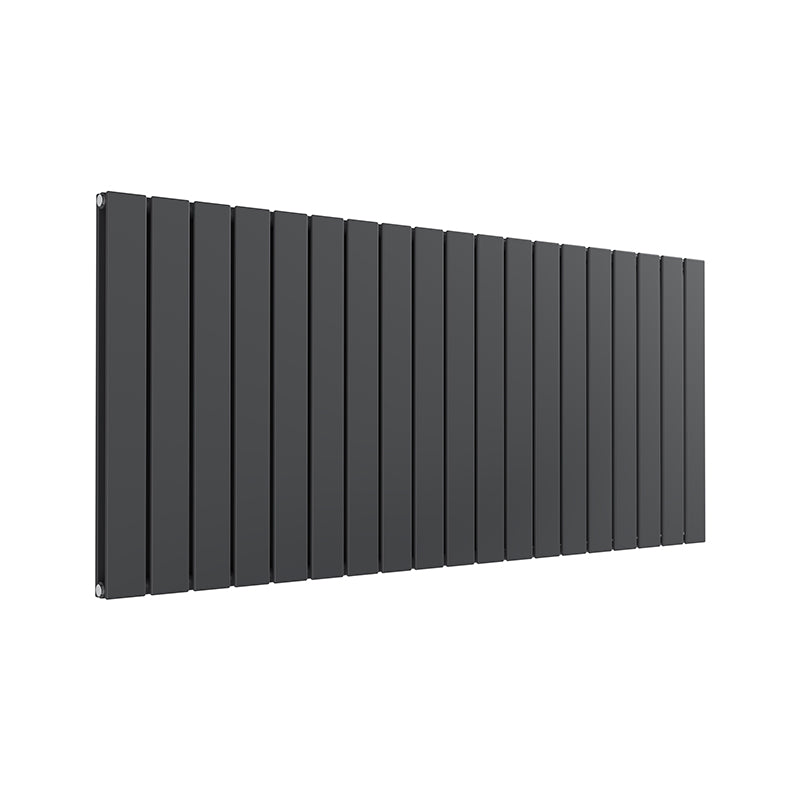

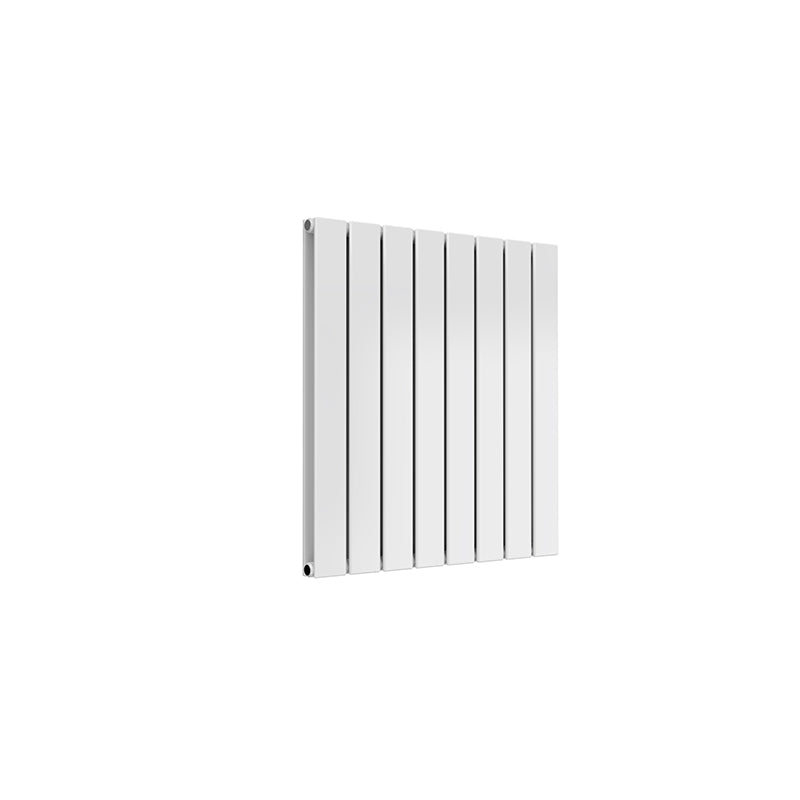

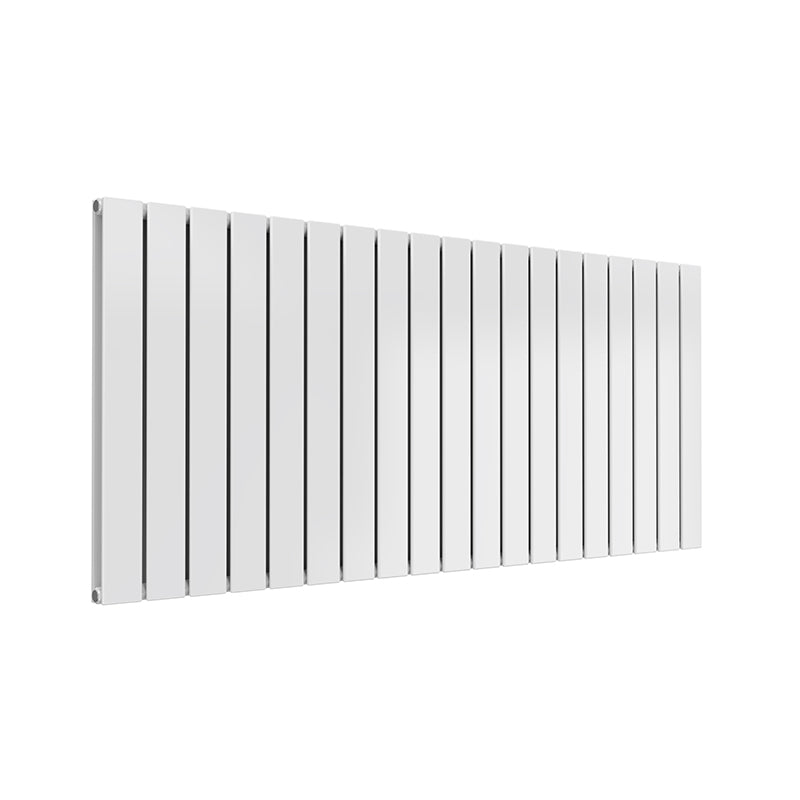

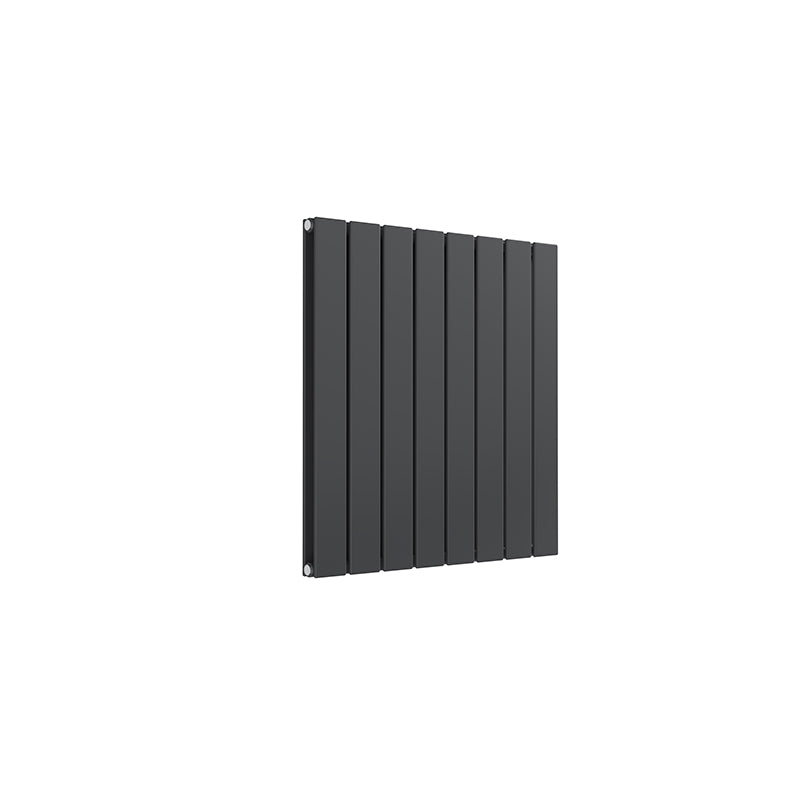

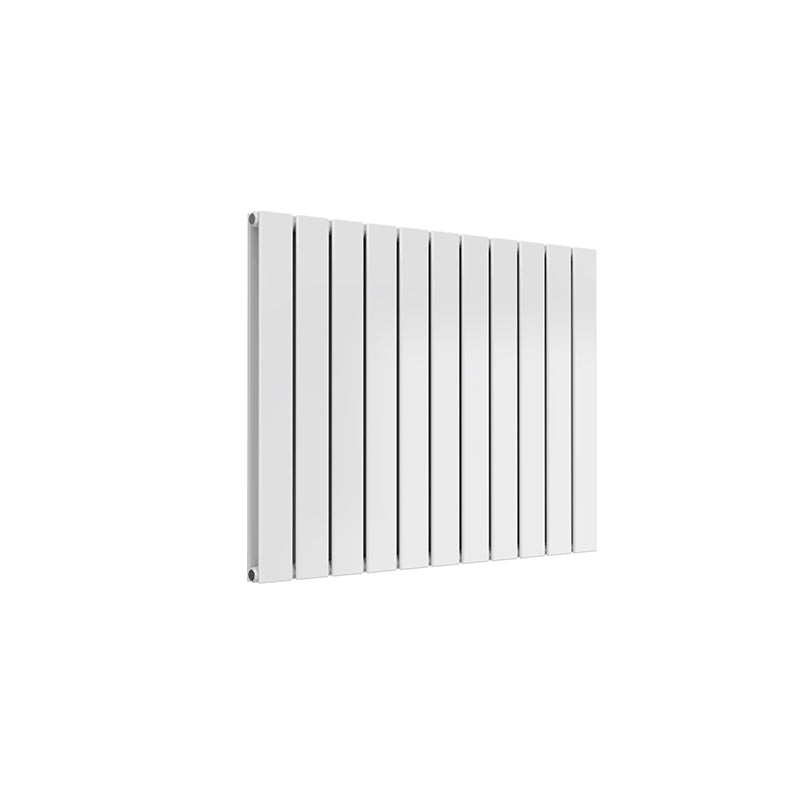

| Heat Outputs ΔT 70°C- BTU (Horizontal Double): | 440 x 600 = 2407 588 x 600 = 3210 810 x 600 = 4413 1032 x 600 = 5617 1254 x 600 = 6822 1402 x 600 = 7824 |

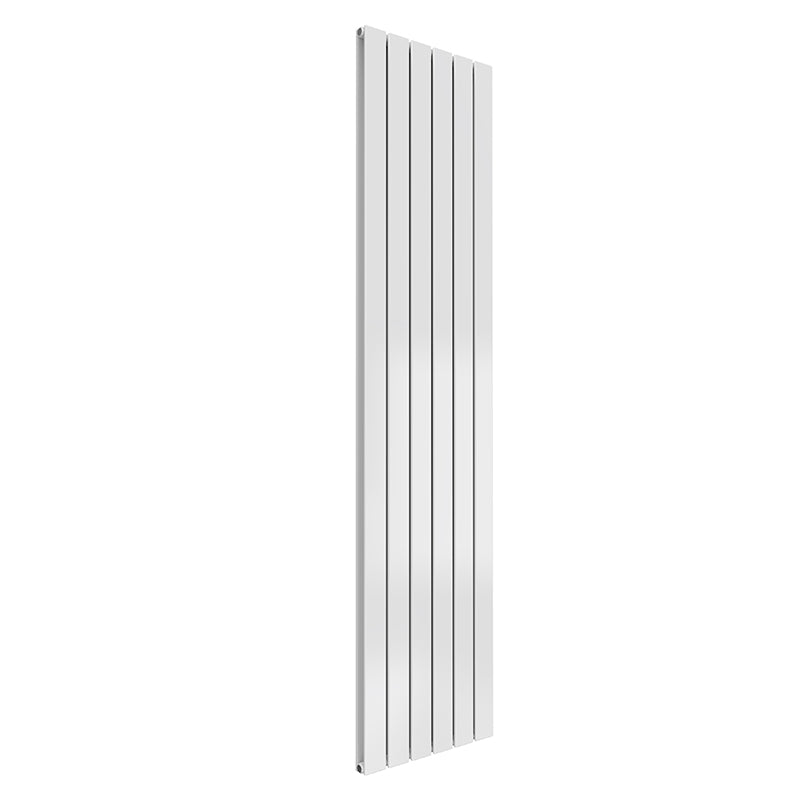

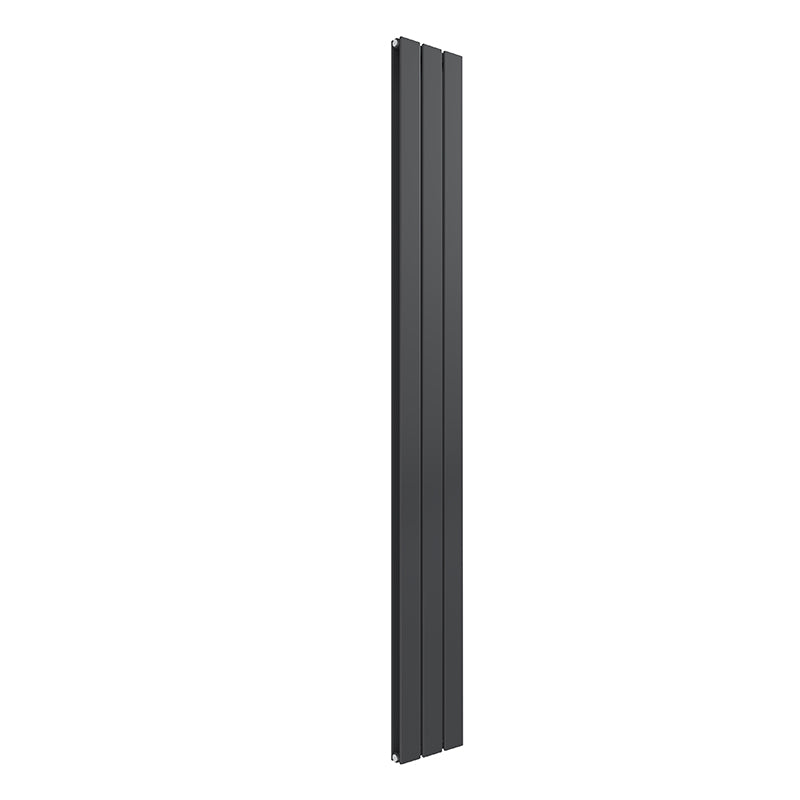

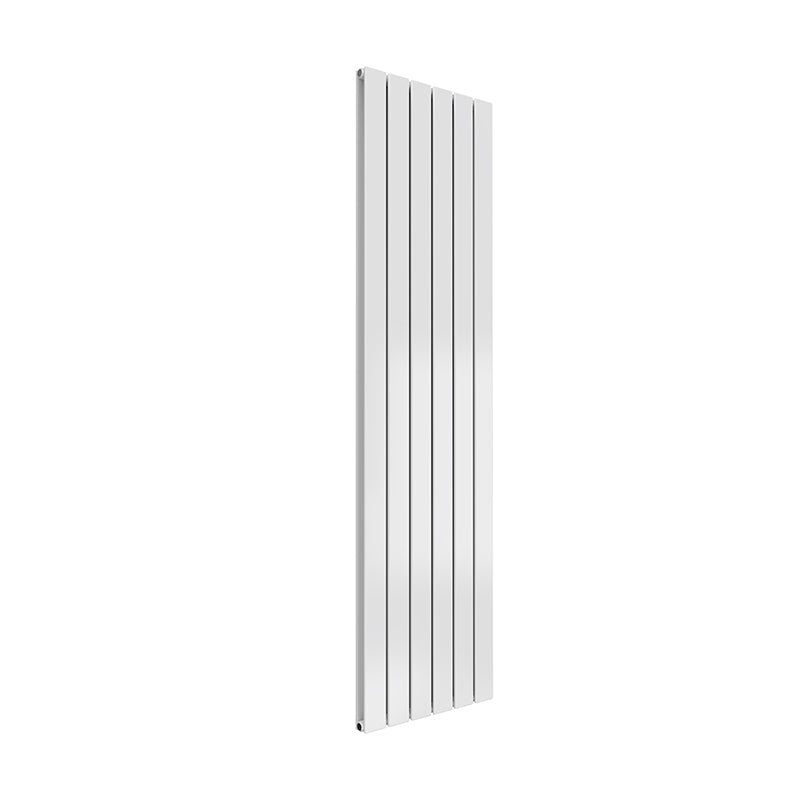

| Heat Outputs ΔT 70°C- BTU (Vertical Double): | 218 x 1600 = 2684 292 x 1600 = 3578 366 x 1600 = 4509 440 x 1600 = 5509 514 x 1600 = 6311 218 x 1800 = 3092 292 x 1800 = 4123 366 x 1800 = 5191 440 x 1800 = 6230 514 x 1800 = 7268 |
| Heat Outputs ΔT 70°C- Watts (Horizontal Single): | 440 x 600 = 487 588 x 600 = 649 810 x 600 = 893 1032 x 600 = 1136 1254 x 600 = 1379 1402 x 600 = 1542 |
| Heat Outputs ΔT 70°C- Watts (Vertical Single): | 218 x 1600 = 620 292 x 1600 = 826 366 x 1600 = 1033 440 x 1600 = 1239 514 x 1600 = 1446 218 x 1800 = 697 292 x 1800 = 930 366 x 1800 = 1162 440 x 1800 = 1394 514 x 1800 = 1627 |
| Heat Outputs ΔT 70°C- Watts (Horizontal Double): | 440 x 600 = 706 588 x 600 = 941 810 x 600 = 1294 1032 x 600 = 1647 1254 x 600 = 2001 1402 x 600 = 2294 |
| Heat Outputs ΔT 70°C- Watts (Vertical Double): | 218 x 1600 = 787 292 x 1600 = 1049 366 x 1600 = 1322 440 x 1600 = 1616 514 x 1600 = 1851 218 x 1800 = 907 292 x 1800 = 1209 366 x 1800 = 1522 440 x 1800 = 1827 514 x 1800 = 2131 |
For Installation Instructions, click below.
H600:
H1600-1800:
Delivery Prices & Returns
Mainland UK:
Order Value: Less than £99.99 = Delivery is £8.99
Between £100-£499.99 = Delivery is £16.99
Orders over £500 = FREE DELIVERY
Northern Ireland:
Prices may vary for Northern Ireland. Please ensure you choose the correct shipping method at Checkout. Please note, not all suppliers will deliver direct to Northern Ireland and we may need to apply additional courier charges to get you your product. Please contact us if you are not sure
Please note that some products, including Glass, can not be delivered to Northern Ireland. It is always worth checking prior to purchasing and we can advise.
The Highlands and Northern Scotland:
Some suppliers will charge additional delivery charges for some postcode regions. We will contact you if this is the case prior to confirming your order.
Returns Policy:
To view our Returns Policy, please visit THIS PAGE
Reina Ordering and Delivery Process
Whilst every effort is made to only advertise products that are in stock, occasionally it may be that some items are unavailable. On receipt of your order, we will check the Reina stock portal to check stock levels are sufficient to proceed. If you wish to check stock prior to ordering a Reina item, then please contact us and we can do that instantly.
On confirmation that the items are in stock, your payment will be captured, and delivery will be made within 2-3 working days.
If an item is out of stock we will confirm an estimated re-stocking date with you prior to capturing payment and in some cases where possible, we will offer alternative replacements that are in stock.
Deliveries may take an extra couple of days if going to Northern Ireland or Northern Scotland.
Radiator/Towel Rail Valves
Most radiators are supplied without valves, so it is important that you have the correct one on hand. If your radiator is supplied with valves then it will say in the product description, but if it doesn't mention it, then you will need to purchase these separately.
Use the following guide to help you pick the right one....
If the Pipe work is coming out of the floor and the radiator has side connections, then you will need a set of Angled valves.
If the Pipe work is coming out of the floor and the radiator has underneath connections, then you will need a set of Straight valves.
If the Pipe work is coming out of the wall and the radiator has side connections, then you will need a set of Corner valves.
If the Pipe work is coming out of the wall and the radiator has underneath connections, then you will need a set of Corner valves.
Blog Post on Designer Radiators
Understanding BTU and Delta
What is BTU?
BTU stands for British Thermal Unit. It is a traditional unit of heat, defined as the amount of heat required to raise the temperature of one pound of water by one degree Fahrenheit. In heating and cooling contexts, BTUs measure the energy output of heating appliances like radiators, boilers, and air conditioners. The higher the BTU rating of a device, the greater its heating or cooling capacity, making BTU an essential metric for selecting appropriately sized equipment to ensure efficient energy use and optimal comfort in residential and commercial spaces.
Understanding the Delta T
Delta T (ΔT as it usually referred too), or is a measurement for the heat output of a radiator. The standard measurement in the UK for Delta in domestic gas boiler systems is Delta 50.
However, at Brand New Bathrooms, we supply Radiators and Towel Rails from a variety of different suppliers, and sometimes they give us the Delta information in different temperatures. So this means you will see some BTU's listed in Delta 50, Delta 60 and Delta 70 across our site.
To help you convert these numbers to your required Delta, there are conversion tables that you can use.
If the figures are listed as Delta 50, but you want to convert them to another measurement, then you would take the number from the Correction Factor table and multiply the original BTU.
So for example, If you have a heat output of 5000 BTU at ΔT 50°, then to calculate the BTU at ΔT60°, you would use the correction factor on the table below, which is 1.27 and multiply the 5000, which gives you a BTU at ΔT60° of 6350.
Delta T 50 (ΔT50°) Correction Factors
| Required Delta T (ΔT) | Correction Factors |
| 75° | 1.69 |
| 70° | 1.55 |
| 65° | 1.41 |
| 60° | 1.27 |
| 55° | 1.13 |
| 50° | 1 |
| 45° | 0.87 |
| 40° | 0.75 |
| 35° | 0.63 |
| 30° | 0.51 |
| 25° | 0.41 |
| 20° | 0.3 |
| 15° | 0.21 |
| 10° | 0.12 |
| 5° | 0.05 |
Delta T 60 (ΔT60°) Correction Factors
| Required Delta T (ΔT) | Correction Factors |
| 60° | 1 |
| 55° | 0.906 |
| 50° | 0.787 |
| 45° | 0.705 |
| 40° | 0.605 |
| 35° | 0.519 |
| 30° | 0.43 |
| 25° | 0.344 |
| 20° | 0.262 |
| 15° | 0.185 |
If you have any other conversion questions, then please do not hesitate to contact us via our CONTACT PAGE
