Reina

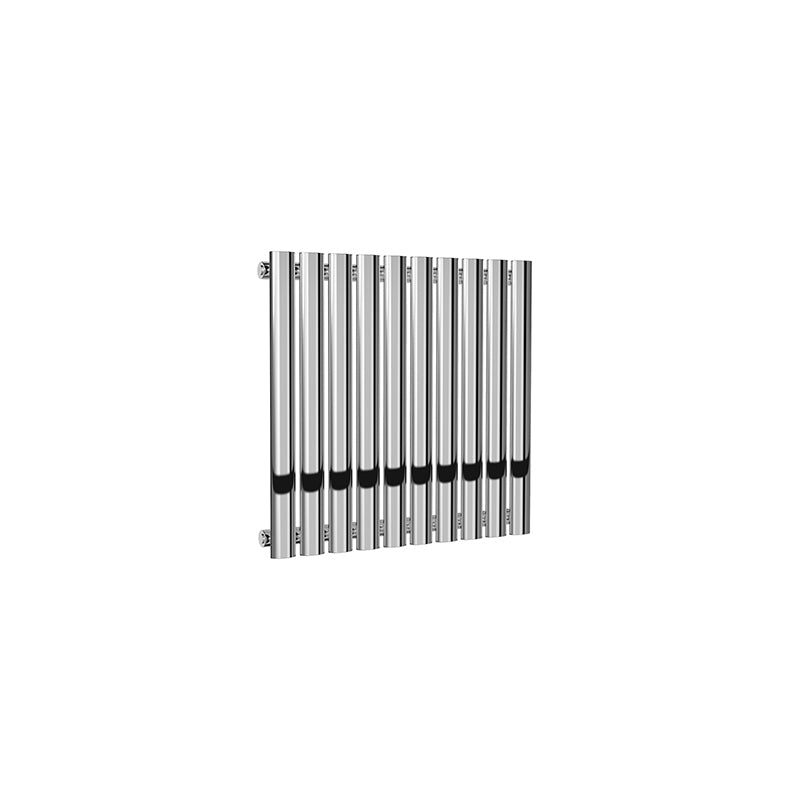

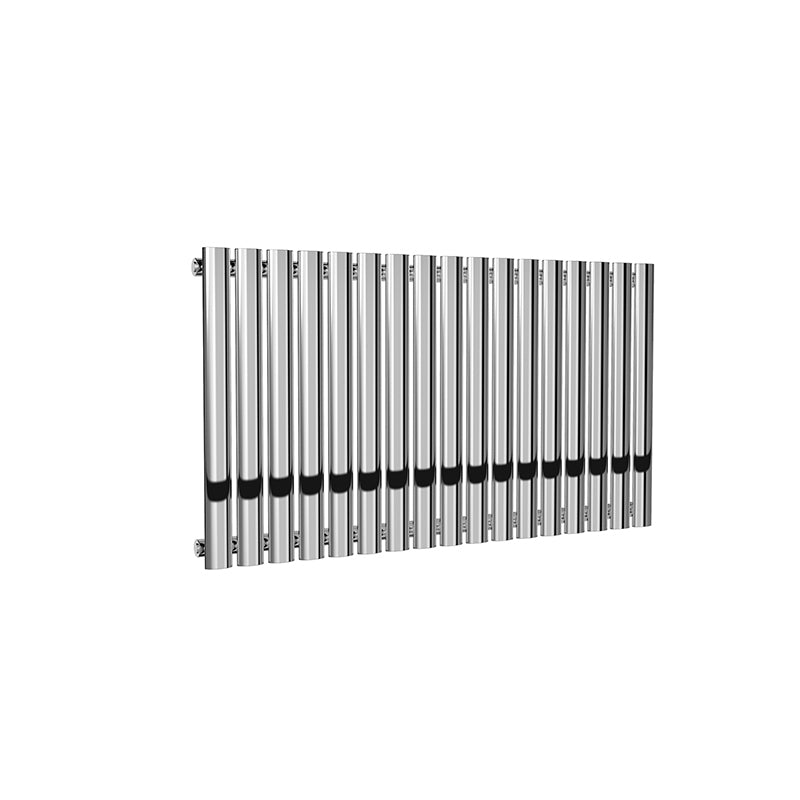

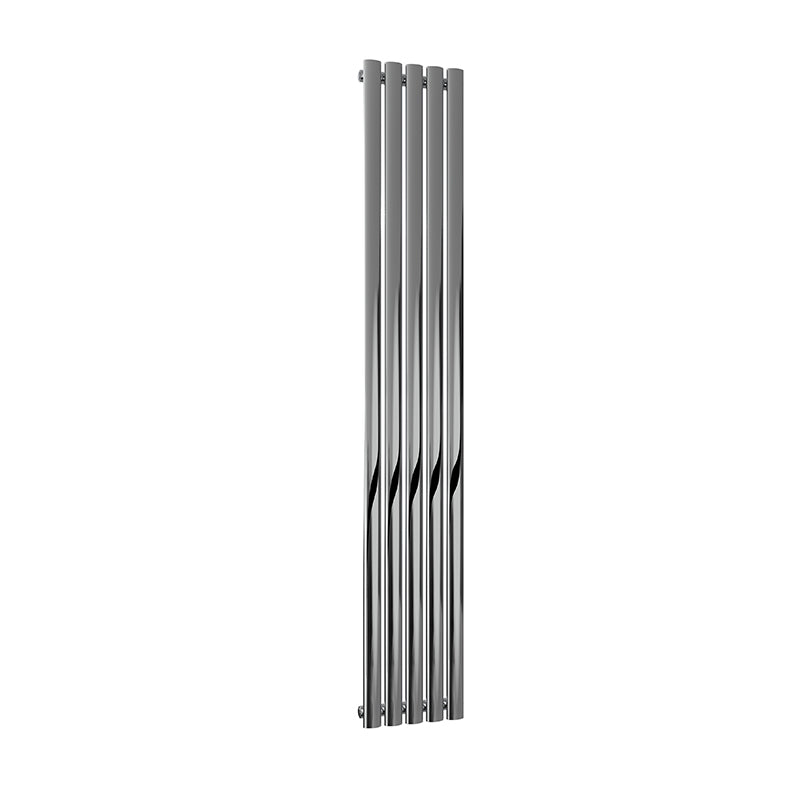

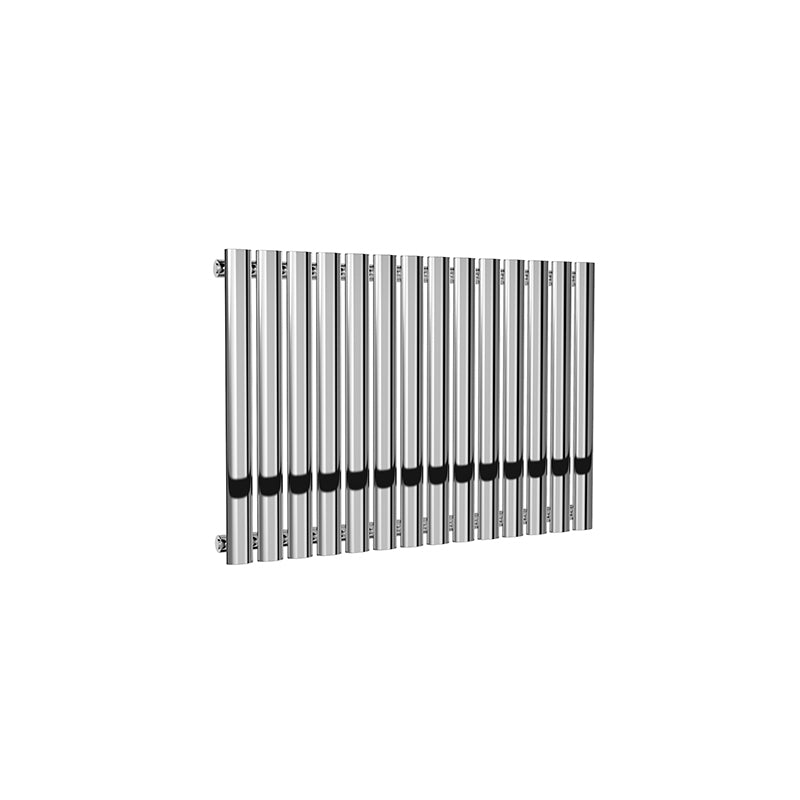

Reina Neva Designer Single or Double Panel Radiator (18 sizes, 3 colours)
Reina Neva Designer Single or Double Panel Radiator (18 sizes, 3 colours)
SKU:RND-NV2315AD
Please use the following tabs to find out more information about this product....
Description
Get ready to heat up your space with the Reina Neva Designer Radiator! Available in 18 sizes and 2 stylish colours, this bold radiator will not only keep you warm but also add a touch of modern elegance to your home. Don't settle for the ordinary when you can make a statement with the Reina Neva Designer Radiator.
This Radiator is available to painted in any RAL colour. For a quotation, please contact us stating the colour you are looking for, plus the size, and we will get back to you with a price and estimated delivery time.
Specifications
Height (mm): | 550/1500/1800 |
Width (mm): | 413-1416 / 236-531 |
Pipe Centres (mm): | 413-1416 / 236-531 |
Wall to Pipe Centres (mm): | 65 |
Wall Distance (mm): | 103 |
Fuel Type: | Central Heating/Dual Fuel |
Heat Outputs ΔT 70°C- BTU (Horizontal Single): | 413 x 550= 1447 590 x 550 = 2066 826 x 550 = 2907 1003 x 550 = 3512 1180 x 550 = 4131 1416 x 550 = 4957 |
Heat Outputs ΔT 70°C- BTU (Horizontal Double): | 413 x 550 = 2315 590 x 550 = 3306 826 x 550 = 4651 1003 x 550 = 5619 1180 x 550 = 6610 1416 x 550 = 7931 |
Heat Outputs ΔT 70°C- Watts (Horizontal Single): | 413 x 550 = 424 590 x 550 = 606 826 x 550 = 852 1003 x 550 = 1030 1180 x 550 = 1211 1416 x 550 = 1454 |
Heat Outputs ΔT 70°C- Watts (Horizontal Double): | 413 x 550 = 679 590 x 550 = 969 826 x 550 = 1364 1003 x 550 = 1648 1180 x 550 = 1938 1416 x 550 = 2326 |
Heat Outputs ΔT 70°C- BTU (Vertical Single): | 236 x 1500 = 2265 295 x 1500 = 2816 354 x 1500 = 3380 413 x 1500 = 3944 472 x 1500 = 4508 531x 1500 = 5070 236 x 1800 = 2717 295 x 1800 = 3380 354 x 1800 = 4055 413 x 1800 = 4732 472 x 1800 = 5408 531x 1800 = 6884 |
Heat Outputs ΔT 70°C- BTU (Vertical Double): | 236 x 1500 = 3420 295 x 1500 = 4252 354 x 1500 = 5104 413 x 1500 = 5955 472 x 1500 = 6807 531x 1500 = 7656 236 x 1800 = 4103 295 x 1800 = 5104 354 x 1800 = 6123 413 x 1800 = 7145 472 x 1800 = 8166 531x 1800 = 9187 |
Heat Outputs ΔT 70°C- Watts (Vertical Single): | 236 x 1500 = 664 295 x 1500 = 826 354 x 1500 = 991 413 x 1500 = 1157 472 x 1500 = 1322 531x 1500 = 1487 236 x 1800 = 797 295 x 1800 = 991 354 x 1800 = 1189 413 x 1800 = 1388 472 x 1800 = 1586 531x 1800 = 2019 |
Heat Outputs ΔT 70°C- Watts (Vertical Double): | 236 x 1500 = 1003 295 x 1500 = 1247 354 x 1500 = 1497 413 x 1500 = 1746 472 x 1500 = 1996 531x 1500 = 2245 236 x 1800 = 1203 295 x 1800 = 1497 354 x 1800 = 1796 413 x 1800 = 2095 472 x 1800 = 2395 531x 1800 = 2694 |
Heat Outputs ΔT 70°C- BTU (Chrome Vertical): | 413 x 550 = 1084 590 x 550 = 1547 826 x 550 = 2159 1003 x 550 = 2457 1180 x 550 = 2853 |
Heat Outputs ΔT 70°C- Watts (Chrome Vertical): | 413 x 550 = 318 590 x 550 = 454 826 x 550 = 633 1003 x 550 = 721 1180 x 550 = 837 |
Heat Outputs ΔT 70°C- BTU (Chrome Vertical): | 295 x 1800 = 2534 354 x 1800 = 3041 413 x 1800 = 3547 |
Heat Outputs ΔT 70°C- Watts (Chrome Vertical): | 295 x 1800 = 743 354 x 1800 = 892 413 x 1800 = 1040 |
For Installation Instructions, click below.
H550:
H1500:
H1800:
Delivery Prices & Returns
Mainland UK:
Order Value: Less than £99.99 = Delivery is £8.99
Between £100-£499.99 = Delivery is £16.99
Orders over £500 = FREE DELIVERY
Northern Ireland:
Prices may vary for Northern Ireland. Please ensure you choose the correct shipping method at Checkout. Please note, not all suppliers will deliver direct to Northern Ireland and we may need to apply additional courier charges to get you your product. Please contact us if you are not sure
Please note that some products, including Glass, can not be delivered to Northern Ireland. It is always worth checking prior to purchasing and we can advise.
The Highlands and Northern Scotland:
Some suppliers will charge additional delivery charges for some postcode regions. We will contact you if this is the case prior to confirming your order.
Returns Policy:
To view our Returns Policy, please visit THIS PAGE
Reina Ordering and Delivery Process
Whilst every effort is made to only advertise products that are in stock, occasionally it may be that some items are unavailable. On receipt of your order, we will check the Reina stock portal to check stock levels are sufficient to proceed. If you wish to check stock prior to ordering a Reina item, then please contact us and we can do that instantly.
On confirmation that the items are in stock, your payment will be captured, and delivery will be made within 2-3 working days.
If an item is out of stock we will confirm an estimated re-stocking date with you prior to capturing payment and in some cases where possible, we will offer alternative replacements that are in stock.
Deliveries may take an extra couple of days if going to Northern Ireland or Northern Scotland.
Radiator/Towel Rail Valves
Most radiators are supplied without valves, so it is important that you have the correct one on hand. If your radiator is supplied with valves then it will say in the product description, but if it doesn't mention it, then you will need to purchase these separately.
Use the following guide to help you pick the right one....
If the Pipe work is coming out of the floor and the radiator has side connections, then you will need a set of Angled valves.
If the Pipe work is coming out of the floor and the radiator has underneath connections, then you will need a set of Straight valves.
If the Pipe work is coming out of the wall and the radiator has side connections, then you will need a set of Corner valves.
If the Pipe work is coming out of the wall and the radiator has underneath connections, then you will need a set of Corner valves.
Blog Post on Designer Radiators
Understanding BTU and Delta
What is BTU?
BTU stands for British Thermal Unit. It is a traditional unit of heat, defined as the amount of heat required to raise the temperature of one pound of water by one degree Fahrenheit. In heating and cooling contexts, BTUs measure the energy output of heating appliances like radiators, boilers, and air conditioners. The higher the BTU rating of a device, the greater its heating or cooling capacity, making BTU an essential metric for selecting appropriately sized equipment to ensure efficient energy use and optimal comfort in residential and commercial spaces.
Understanding the Delta T
Delta T (ΔT as it usually referred too), or is a measurement for the heat output of a radiator. The standard measurement in the UK for Delta in domestic gas boiler systems is Delta 50.
However, at Brand New Bathrooms, we supply Radiators and Towel Rails from a variety of different suppliers, and sometimes they give us the Delta information in different temperatures. So this means you will see some BTU's listed in Delta 50, Delta 60 and Delta 70 across our site.
To help you convert these numbers to your required Delta, there are conversion tables that you can use.
If the figures are listed as Delta 50, but you want to convert them to another measurement, then you would take the number from the Correction Factor table and multiply the original BTU.
So for example, If you have a heat output of 5000 BTU at ΔT 50°, then to calculate the BTU at ΔT60°, you would use the correction factor on the table below, which is 1.27 and multiply the 5000, which gives you a BTU at ΔT60° of 6350.
Delta T 50 (ΔT50°) Correction Factors
Required Delta T (ΔT) | Correction Factors |
75° | 1.69 |
70° | 1.55 |
65° | 1.41 |
60° | 1.27 |
55° | 1.13 |
50° | 1 |
45° | 0.87 |
40° | 0.75 |
35° | 0.63 |
30° | 0.51 |
25° | 0.41 |
20° | 0.3 |
15° | 0.21 |
10° | 0.12 |
5° | 0.05 |
Delta T 60 (ΔT60°) Correction Factors
Required Delta T (ΔT) | Correction Factors |
60° | 1 |
55° | 0.906 |
50° | 0.787 |
45° | 0.705 |
40° | 0.605 |
35° | 0.519 |
30° | 0.43 |
25° | 0.344 |
20° | 0.262 |
15° | 0.185 |
