Carisa Magico Horizontal Aluminium Bespoke Radiator (3 sizes, 2 colours)
Carisa Magico Horizontal Aluminium Bespoke Radiator (3 sizes, 2 colours)
SKU:10MGC0600074506
Couldn't load pickup availability
Please use the following tabs to find out more information about this product....
Description

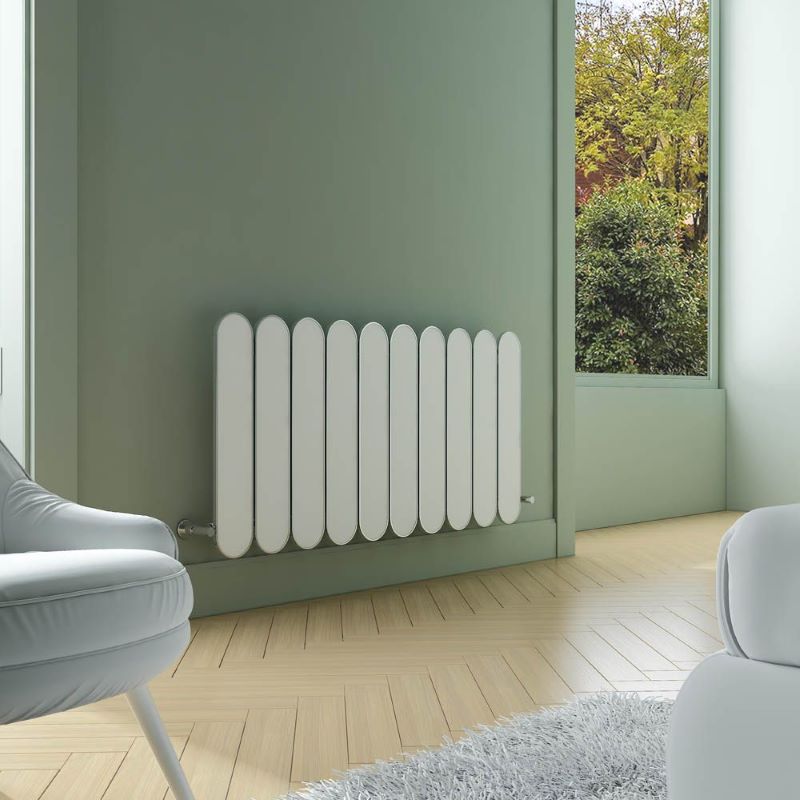

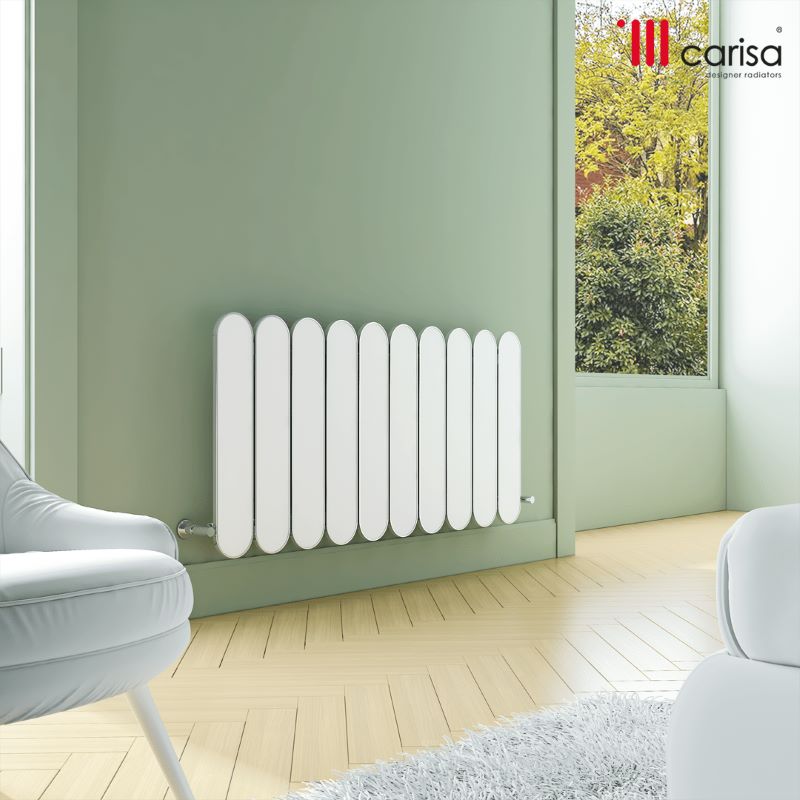

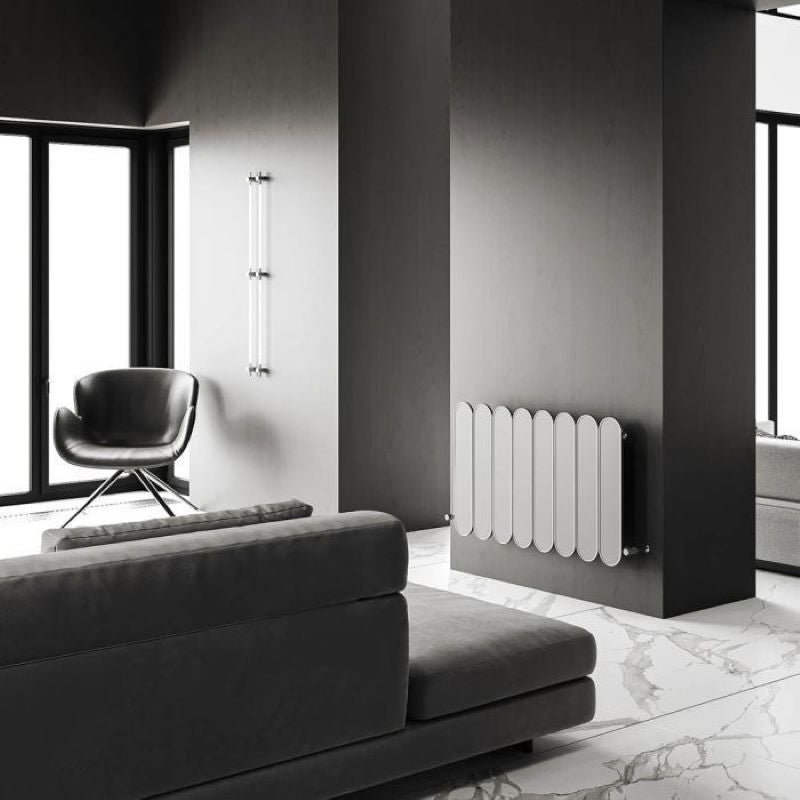

Embrace a touch of luxury and exclusivity with the Carisa Magico Horizontal Aluminium Bespoke Radiator. Perfect for any modern space, this radiator comes in 3 sizes and 2 elegant colours. The aluminium construction provides efficient heating while adding a stylish touch to your home. Upgrade your heating experience with this premium product.

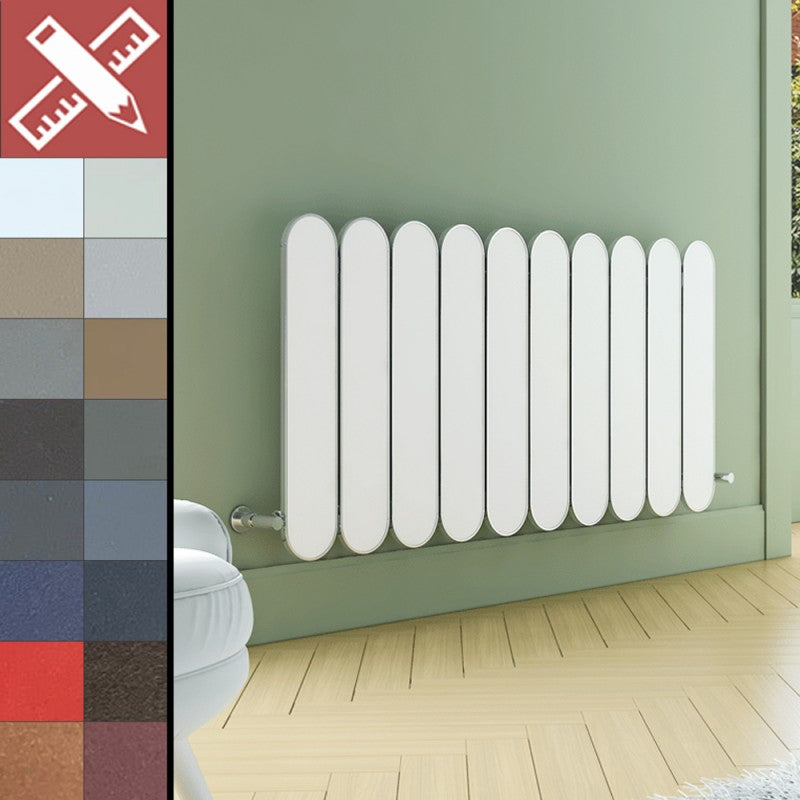

The stock finishes on this product are Textured White and Black but if you would like to request a different finish based on the options found HERE, then please contact us via telephone or email and we will try and help.
Specifications
| Material: | Aluminium |
|
Warranty: |
5 years |
| Size (mm): | 3 variants |
| Height (mm): | 600 |
| Width (mm): | 745-995-1245 |
| Pipe Centres (mm): | 835-1085-1335 |
| Wall to Pipe Centres (mm): | 55 |
| Wall Distance (mm): | 82 |
| Central Heating | |
| 745 x 600 = 2065 995 x 600 = 2754 1245 x 600 = 3442 |
|
| 745 x 600 = 394 995 x 600 = 525 1245 x 600 = 656 |
|
| Max. Working Pressure: | 10 |
| Max.Heat of Working: | 95 |
Delivery Prices & Returns
Mainland UK:
Order Value: Less than £99.99 = Delivery is £8.99
Between £100-£499.99 = Delivery is £16.99
Orders over £500 = FREE DELIVERY
Northern Ireland:
Prices may vary for Northern Ireland. Please ensure you choose the correct shipping method at Checkout. Please note, not all suppliers will deliver direct to Northern Ireland and we may need to apply additional courier charges to get you your product. Please contact us if you are not sure
Please note that some products, including Glass, can not be delivered to Northern Ireland. It is always worth checking prior to purchasing and we can advise.
The Highlands and Northern Scotland:
Some suppliers will charge additional delivery charges for some postcode regions. We will contact you if this is the case prior to confirming your order.
Returns Policy:
To view our Returns Policy, please visit THIS PAGE
Carisa Ordering and Delivery Process - Bespoke Items
This particular product is a Bespoke item and are not held in UK stock. On receipt of your order, the item would be manufactured specifically for you, which would take around 4-6 weeks to complete and arrive into the UK for dispatch.
We will keep you informed of the manufacturing and delivery process throughout the whole time.
Please contact us via our CONTACT PAGE if you have any specific questions before you place an order for this item.
Radiator/Towel Rail Valves
Most radiators are supplied without valves, so it is important that you have the correct one on hand. If your radiator is supplied with valves then it will say in the product description, but if it doesn't mention it, then you will need to purchase these separately.
Use the following guide to help you pick the right one....
If the Pipe work is coming out of the floor and the radiator has side connections, then you will need a set of Angled valves.
If the Pipe work is coming out of the floor and the radiator has underneath connections, then you will need a set of Straight valves.
If the Pipe work is coming out of the wall and the radiator has side connections, then you will need a set of Corner valves.
If the Pipe work is coming out of the wall and the radiator has underneath connections, then you will need a set of Corner valves.
Blog Post on Designer Radiators
Understanding BTU and Delta
What is BTU?
BTU stands for British Thermal Unit. It is a traditional unit of heat, defined as the amount of heat required to raise the temperature of one pound of water by one degree Fahrenheit. In heating and cooling contexts, BTUs measure the energy output of heating appliances like radiators, boilers, and air conditioners. The higher the BTU rating of a device, the greater its heating or cooling capacity, making BTU an essential metric for selecting appropriately sized equipment to ensure efficient energy use and optimal comfort in residential and commercial spaces.
Understanding the Delta T
Delta T (ΔT as it usually referred too), or is a measurement for the heat output of a radiator. The standard measurement in the UK for Delta in domestic gas boiler systems is Delta 50.
However, at Brand New Bathrooms, we supply Radiators and Towel Rails from a variety of different suppliers, and sometimes they give us the Delta information in different temperatures. So this means you will see some BTU's listed in Delta 50, Delta 60 and Delta 70 across our site.
To help you convert these numbers to your required Delta, there are conversion tables that you can use.
If the figures are listed as Delta 50, but you want to convert them to another measurement, then you would take the number from the Correction Factor table and multiply the original BTU.
So for example, If you have a heat output of 5000 BTU at ΔT 50°, then to calculate the BTU at ΔT60°, you would use the correction factor on the table below, which is 1.27 and multiply the 5000, which gives you a BTU at ΔT60° of 6350.
Delta T 50 (ΔT50°) Correction Factors
| Required Delta T (ΔT) | Correction Factors |
| 75° | 1.69 |
| 70° | 1.55 |
| 65° | 1.41 |
| 60° | 1.27 |
| 55° | 1.13 |
| 50° | 1 |
| 45° | 0.87 |
| 40° | 0.75 |
| 35° | 0.63 |
| 30° | 0.51 |
| 25° | 0.41 |
| 20° | 0.3 |
| 15° | 0.21 |
| 10° | 0.12 |
| 5° | 0.05 |
Delta T 60 (ΔT60°) Correction Factors
| Required Delta T (ΔT) | Correction Factors |
| 60° | 1 |
| 55° | 0.906 |
| 50° | 0.787 |
| 45° | 0.705 |
| 40° | 0.605 |
| 35° | 0.519 |
| 30° | 0.43 |
| 25° | 0.344 |
| 20° | 0.262 |
| 15° | 0.185 |
If you have any other conversion questions, then please do not hesitate to contact us via our CONTACT PAGE
