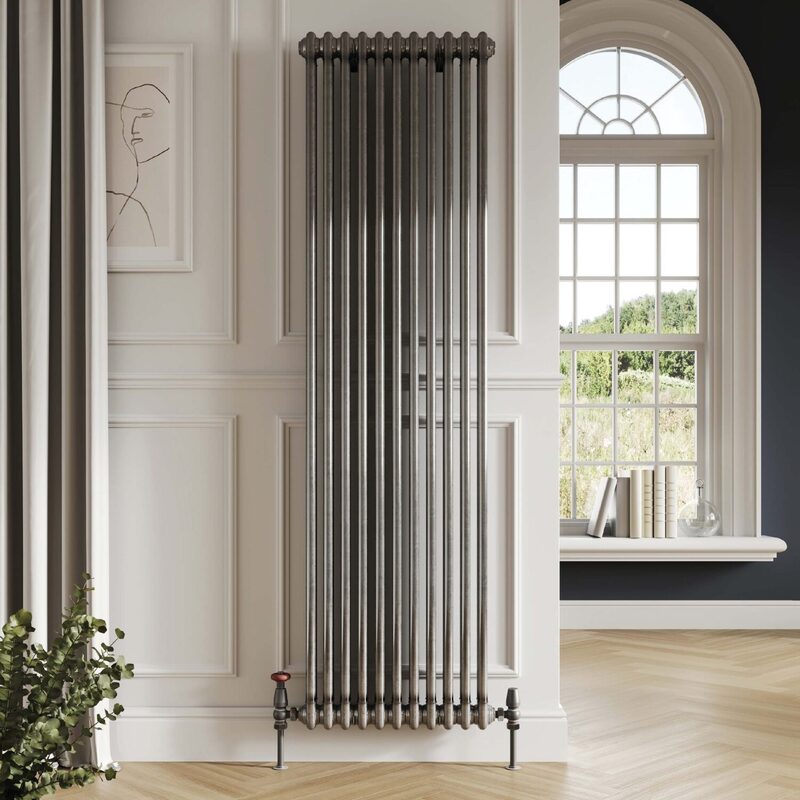

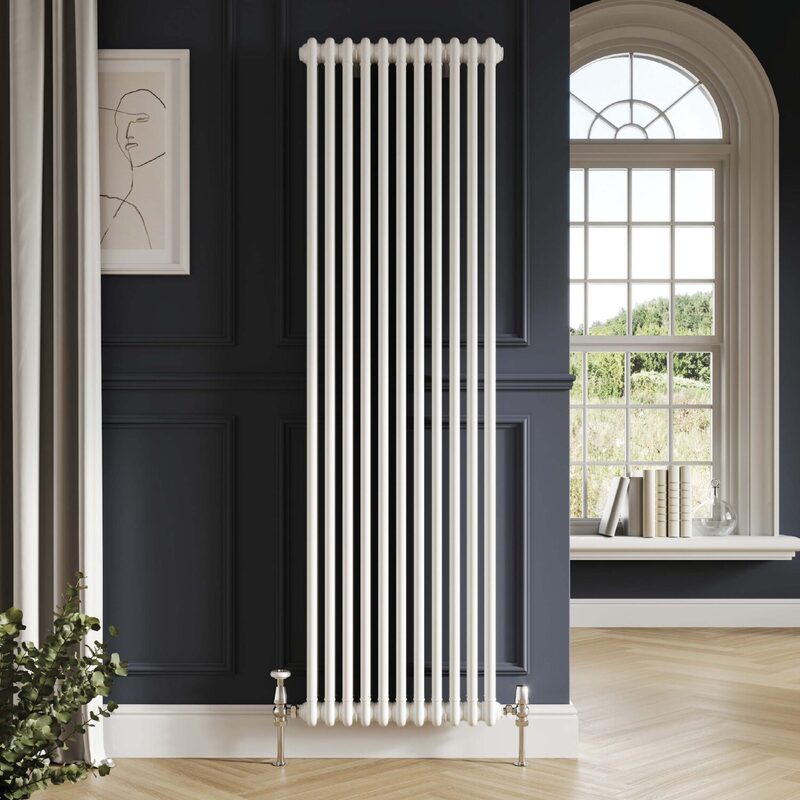

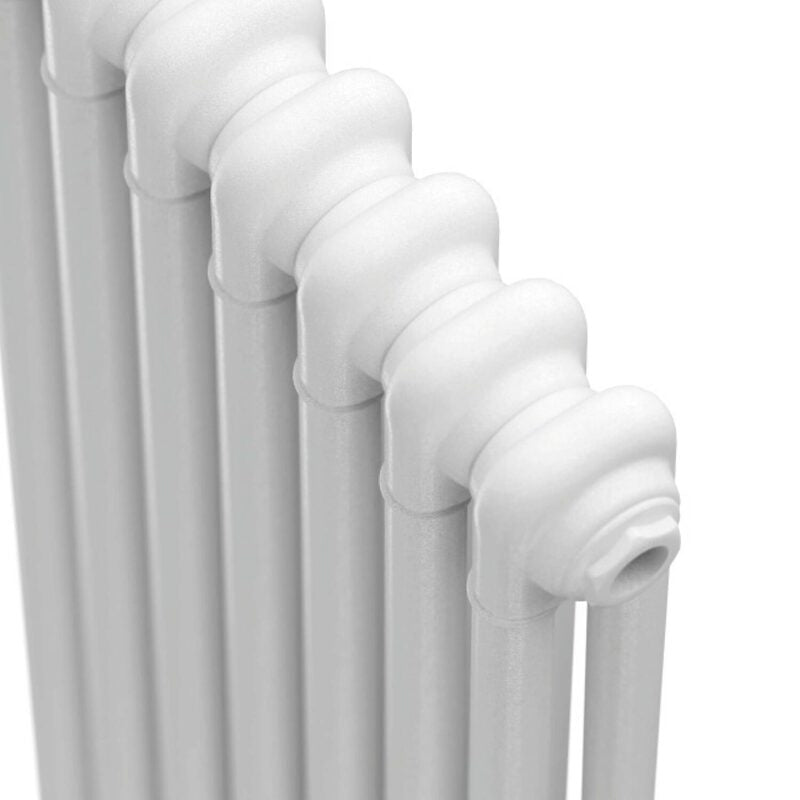

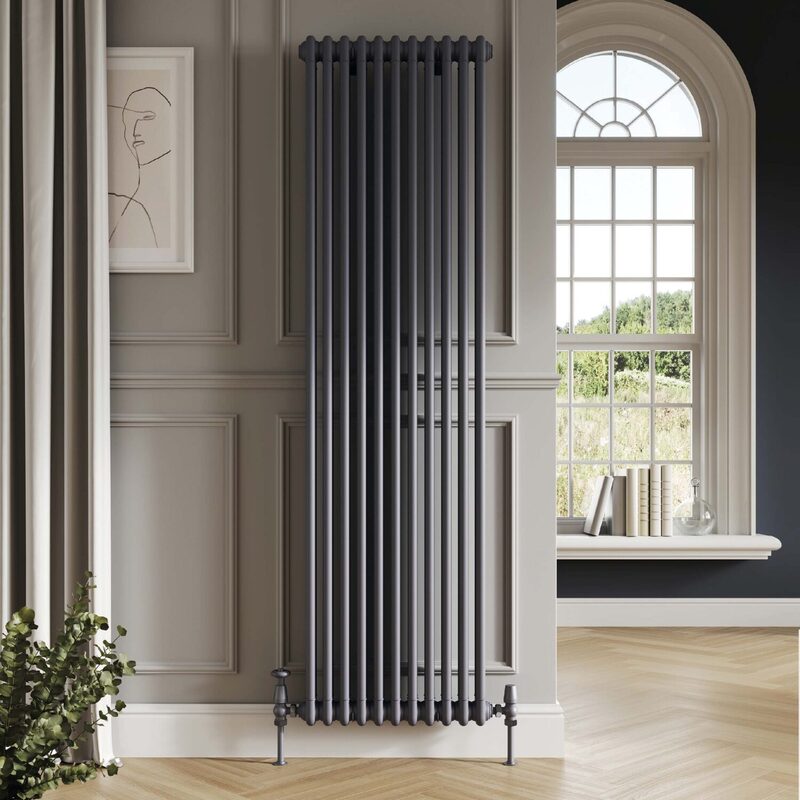

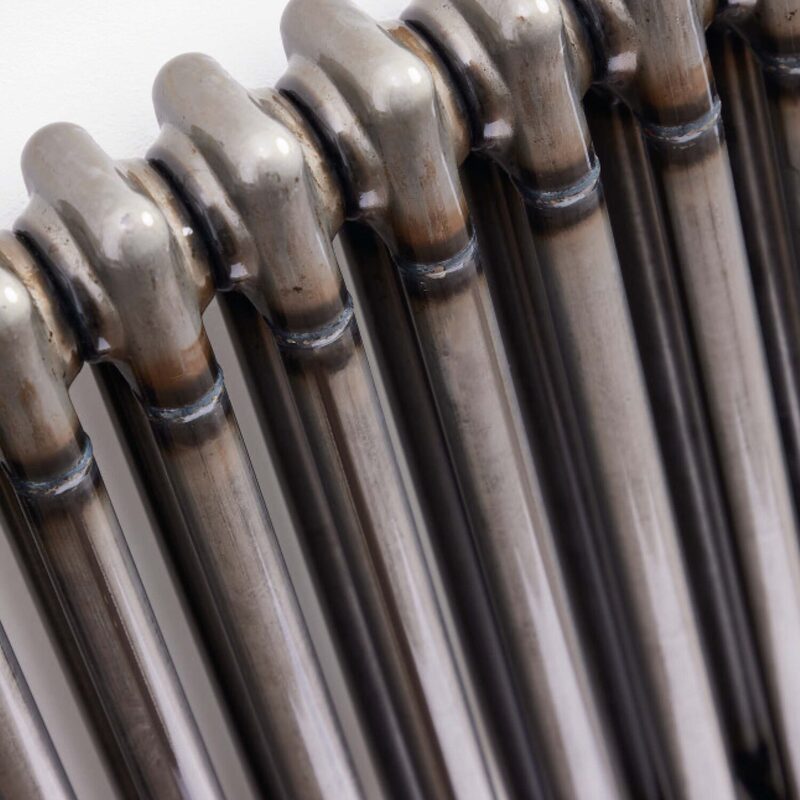

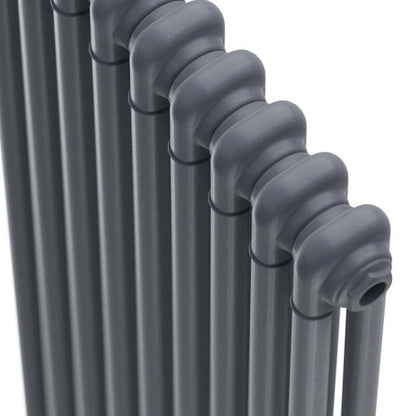

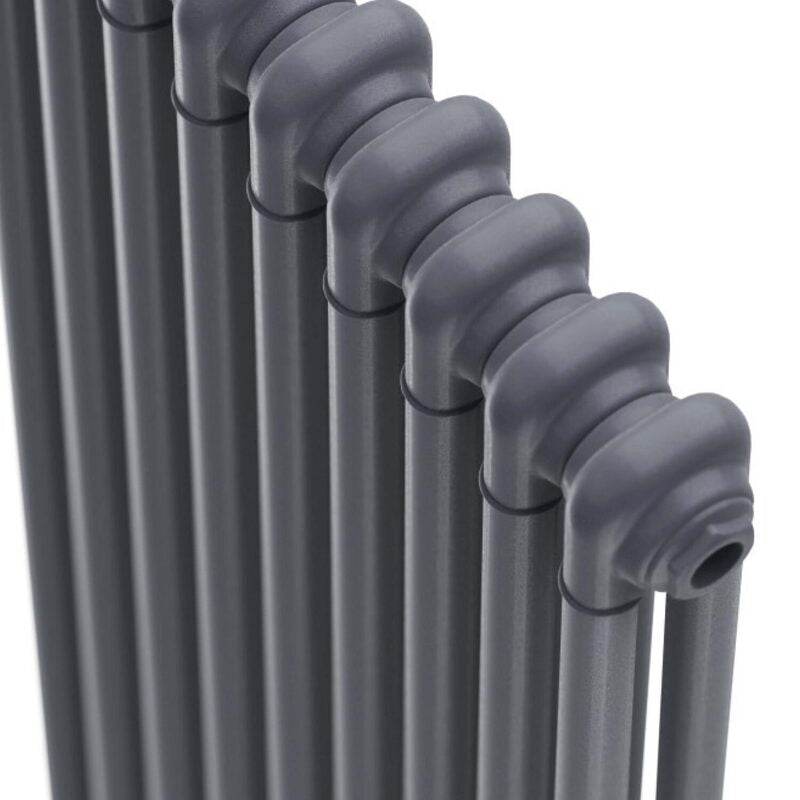

Scudo 2 Column Vertical Designer Radiator (9 sizes, 3 colours)

The Scudo 2 Column Vertical Designer Radiator combines sleek aesthetics with reliable heating performance. Available in 9 sizes across 3 sophisticated finishes—White, Anthracite, and Raw Metal—this radiator suits any modern bathroom or living space. With heat outputs ranging from 872 to 1642 watts, it efficiently warms rooms while maintaining a compact, space-saving profile. The vertical column design maximises visual impact whilst minimising wall projection. Choose from heights of 1500mm or 1800mm and widths from 328mm to 515mm to perfectly fit your space. Central heating compatible and engineered for durability, the Scudo 2 delivers contemporary style without compromising on warmth and comfort.

Optional Feet are available to purchase in most sizes to complete the look.

Specifications

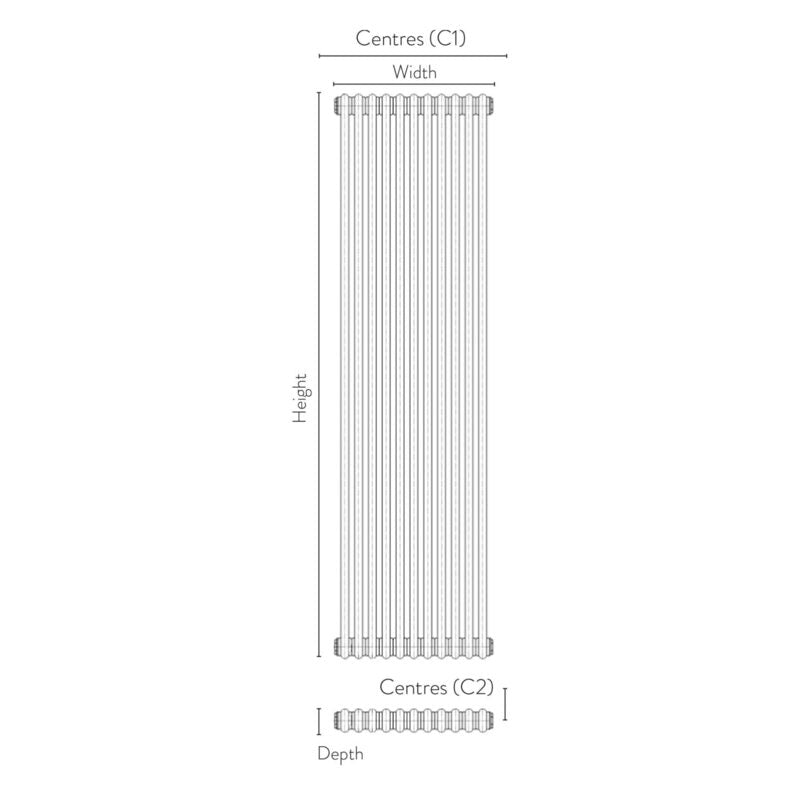

Height (mm):	White 1500 / 1800 Anthracite 1800 Raw Metal 1800
Length (mm):	White 335, 425, 515, 322, 414, 506 Anthracite 335, 425, 515 Raw Metal 328, 416, 504
Pipe Centers C1 (mm):	White 415, 505, 595, 408, 496, 584 Anthracite 415, 505, 515 + RV Raw Metal 408, 496, 584
Pipe Centers C2 (mm):	White 59 / 70 Anthracite 59 Raw Metal 70
Max Projection (mm):	White 94, 104, 105 Anthracite 94 Raw Metal 104 / 105
Heat Outputs ΔT 50°C- BTU (White):	1500 x 335 = 2973 1500 x 425 = 3823 1500 x 515 = 4672 1800 x 328 = 3562 1800 x 416 = 4579 1800 x 504 = 5438
Heat Outputs ΔT 50°C- Watts (White):	1500 x 335 = 872 1500 x 425 = 1121 1500 x 515 = 1370 1800 x 328 = 1045 1800 x 416 = 1343 1800 x 504 = 1595
Heat Outputs ΔT 50°C- BTU (Anthracite):	1800 x 335 = 3562 1800 x 425 = 4579 1800 x 515 = 5599
Heat Outputs ΔT 50°C- Watts (Anthracite):	1800 x 335 = 1045 1800 x 425 = 1343 1800 x 515 = 1642
Heat Outputs ΔT 50°C- BTU (Raw Metal):	1800 X 328 = 3562 1800 X 416 = 4579 1800 X 504 = 5438
Heat Outputs ΔT 50°C- Watts (Raw Metal):	1800 X 328 = 1045 1800 X 416 = 1343 1800 X 504 = 1595

For Installation Instructions click here, and for Data Sheet, click below:
Data Sheet for White
1500 x 335 | 1500 x 425 | 1500 x 515 | 1800 x 328 | 1800 x 416 | 1800 x 504
Data Sheet for Anthracite
1800 x 335 | 1800x 425 | 1800x 515
Data Sheet for Raw Metal
1800 x 328 | 1800 x 416 | 1800 x 504
